DTC 100/2
5
ELECTRICAL CONNECTION
The grounding cables
are to be connected to
the specially designed
terminals, to the right of
the coupling terminals.
NOTICE
The thermostat is designed to be fastened permanently. While putting in the electrical
installation, it is necessary to insert an safety element to allow the thermostat at least
a 3mm - distance from the mains (a switch or a power cord). For any repairs inside the
thermostat, it must be fully disconnected from the mains.
TECHNICAL DATA
Supply voltage ............................................230V 50Hz +/- 10%
Power consumption ....................................4 VA
Pump relay rating .......................................3A/230VAC cos 0,6
Type of thermostat ......................................
P
Max. temp. of water ....................................100°C
Interval of operation ....................................10 - 90°C
Setting the difference ..................................5 - 15K
Hysteresis of the thermostat .......................1 - 2K
Nr. of sensors .............................................
2
Nr. of outputs. .............................................1 (230 VAC reversing SPDT )

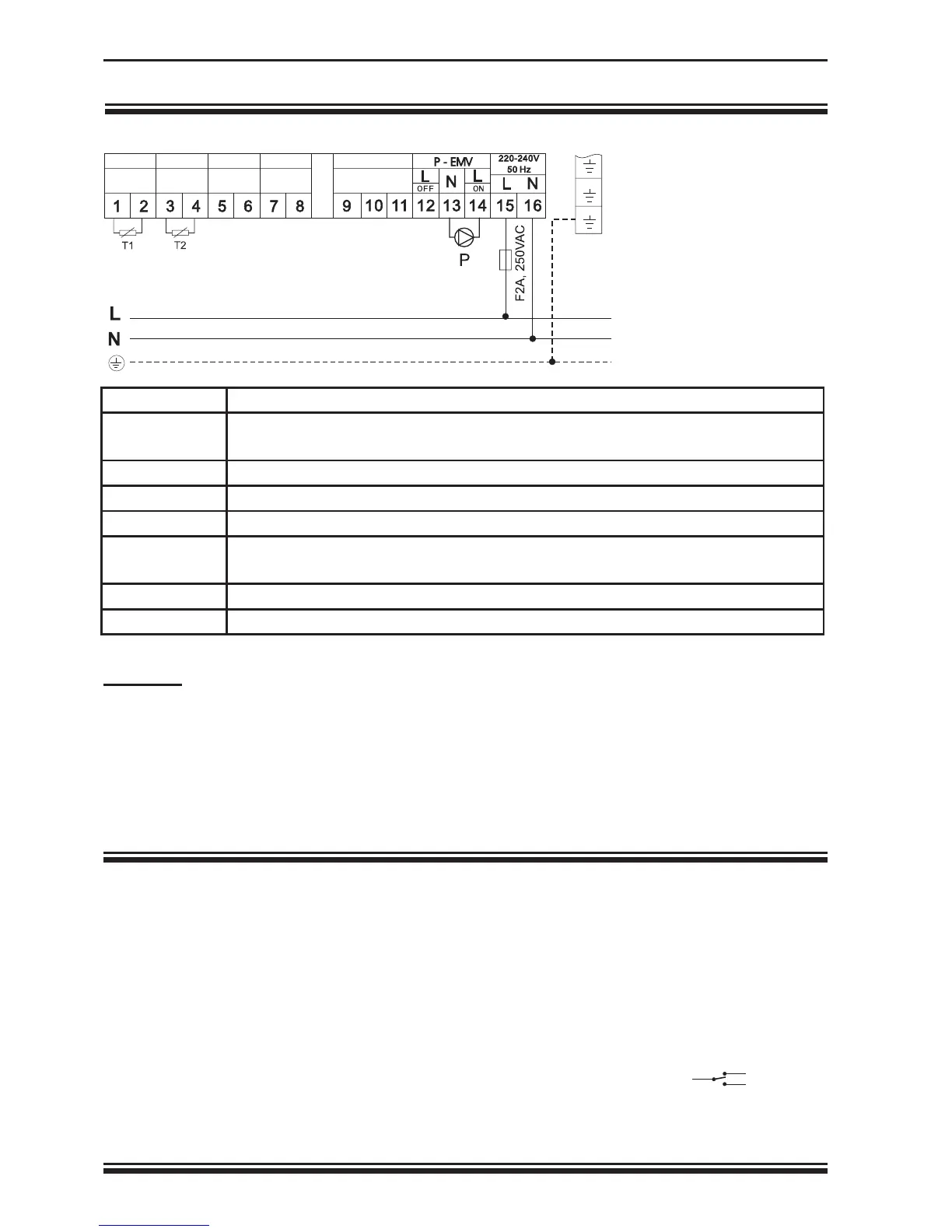

TERMINAL CONNECTION
1,2 sensor T1 - sensor of the source (collector) KF, silicon, 2x0.25 mm
2
,
2 m long, with two spring ribbons and one angle clamp, orange
3,4 sensor T2 - DHWS sensor, 2x0.34mm2 1.5 m long, gray
12 phase (L) for closing the electrically actuated motor valve (EMV 110)
13 neutral connector (N)
14 phase (L) of the pump, i.e. opening of the electrically actuated motor
valve (EMV 110.., find in our production line)
15 L - phase, mains connection 230 V, 50 Hz.
16 N - neutral, mains connection 230 V, 50 Hz.
