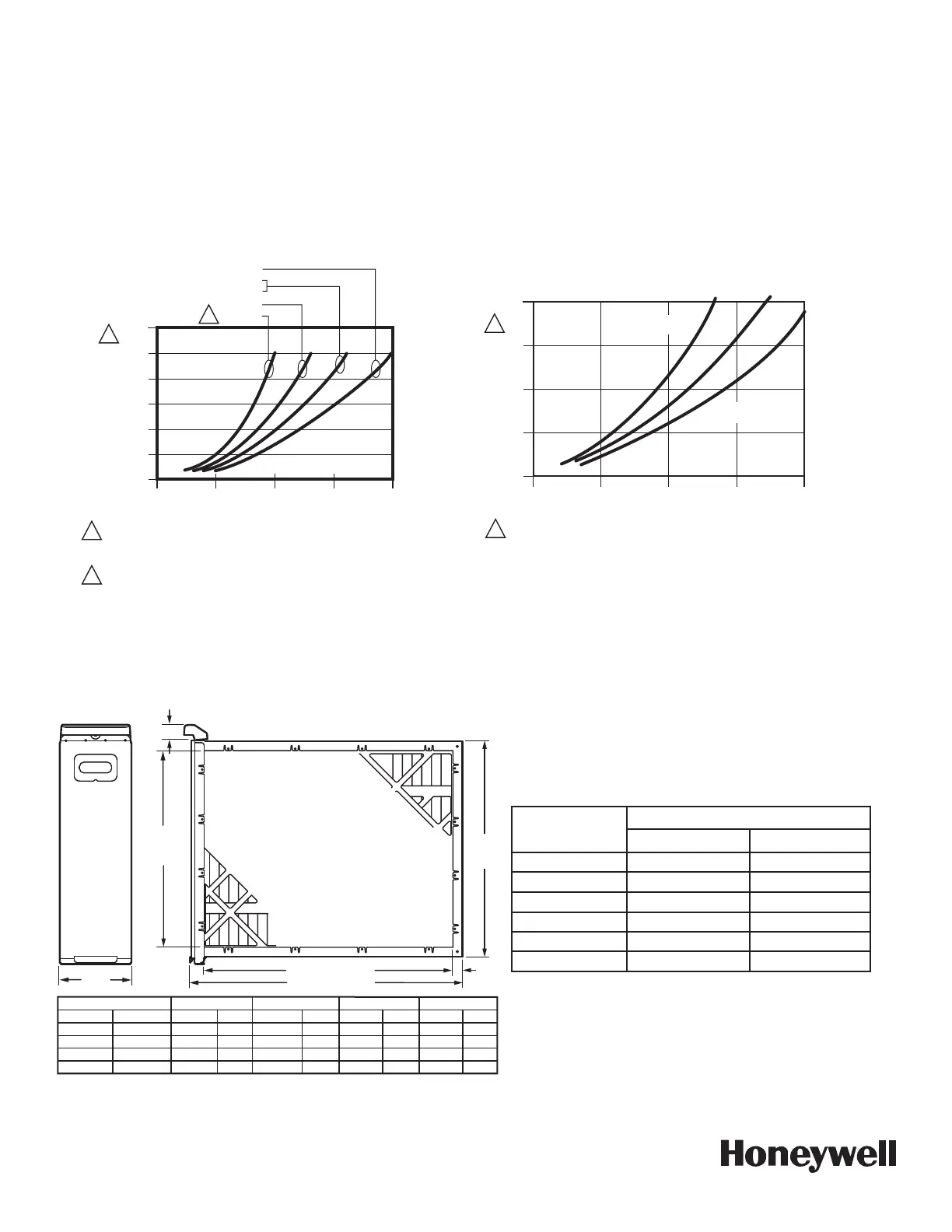

Honeywell F100 User Manual

F100 Specifications
MERV Rating*: MERV 11
Static Pressure Drop: 0.23 (in. w.c.) at 500 FPM
Efficiency Definition*:
Small Particles: E1 = 0.3 to 1.0 microns = 32%
Medium Particles: E2 = 1.0 to 3.0 microns = 72%
Large Particles: E3 = 3.0 to 10.0 microns = 96%
0
500 1000 1500
2000
0.000
0.050
0.100
0.150
0.200
0.250
0.300
12.5 X 20
16 X 20
16 X 25
20 X 20
20 X 25
FILTER SIZE
PRESSURE DROP (IN. WC)
AIRFLOW (CFM)
M34911
WHEN FIRST INSTALLED. PRESSURE DROP INCREASES AS FILTER
BECOMES LOADED. REPLACE FILTER WHEN PRESSURE DROP
REACHES 0.5 IN. WC. (0.1 kPa).
AVAILABLE ONLY IN UNITED STATES.
2
1
1
2
F200 Specifications
MERV Rating*: MERV 13
Static Pressure Drop: 0.3 (in. w.c.) at 500 FPM
Efficiency Definition*:
Small Particles: E1 = 0.3 to 1.0 microns = 63%
Medium Particles: E2 = 1.0 to 3.0 microns = 91%
Large Particles: E3 = 3.0 to 10.0 microns = 99%
0
500 1000 1500
200
0
0
0.1
0.2
0.3
0.4
PRESSURE DROP (IN. WC)
AIRFLOW (CFM)
M13662
WHEN FIRST INSTALLED. PRESSURE DROP INCREASES AS FILTER
BECOMES LOADED. REPLACE FILTER WHEN PRESSURE DROP
REACHES 0.5 IN. WC. (0.1 kPa).
1
1
20 x 25 in.
(508 x 635 mm)
20 x 20 in.
(508 x 508 mm)
16 x 25 in.
(406 x 635 mm)
16 x 20 in.
(406 x 508 mm)
M37054
F100F SIZE
IN.
16 X 25
16 X 20
20 X 25
20 X 20
MM
406 X 635
406 X 508
508 X 635
508 X 508
DIM. A
14-7/16
14-7/16
18-7/16
18-7/16
367
367
468
468
DIM. B
16-3/16
16-3/16
20-3/16
20-3/16
411
411
513
513
23-1/4
18-1/4
23-1/4
18-1/4
DIM. C
591
457
591
457
DIM. D
25-7/16
20-7/16
25-7/16
20-7/16
646
519
646
519
IN. MM IN. MM
IN. MM IN.
MM
6-3/4
(170)
1-7/16 (37)
DIM. A
(SEE
TABLE)
7/8
(22)
DIM. C (SEE TABLE)
DIM. D (SEE TABLE)
DIM. B
(SEE
TA
BLE)
Dimensions
Temperature Rating
40° to +140°F (40° to +60°C)
Approvals
Underwriters Laboratories, Inc.: Listed to UL 900,
Class 2.
NEED HELP?
For assistance with this product, or for the complete
installation guide, please visit
http://yourhome.honeywell.com or call Honeywell
Customer Care toll free at 1-800-468-1502.
* Minimum Efficiency Reporting Value (Media Filters Only)
* Efficiency ratings are based on American Society of Heating, Refrigerating and AirConditioning Engineers Standard 52.21999.
® U.S. Registered Trademark.
© 2017 Honeywell International Inc.
33-00240EF—02 M.S. Rev. 08-17
Printed in U.S.A.
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
Replacement Air Filters
Filter Size (in.)
Part Number
F100 - MERV 11 F200 - MERV 13
16 x 20 FC100A1003 FC200E1003
16 x 25 FC100A1029 FC200E1029
20 x 12.5 FC100A1052 N/A
20 x 20 FC100A1011 FC200E1011
20 x 25 FC100A1037 FC200E1037
21.5 x 27.5 FC100A1045 N/A

Honeywell F100 Specifications

General

Installation	Duct-mounted
Airflow Capacity	2000 CFM
Voltage	120V
Model	F100
Dimensions (H x W x D)	20" x 20" x 4"
