F300 ELECTRONIC AIR CLEANER

3 68-0240EF-5

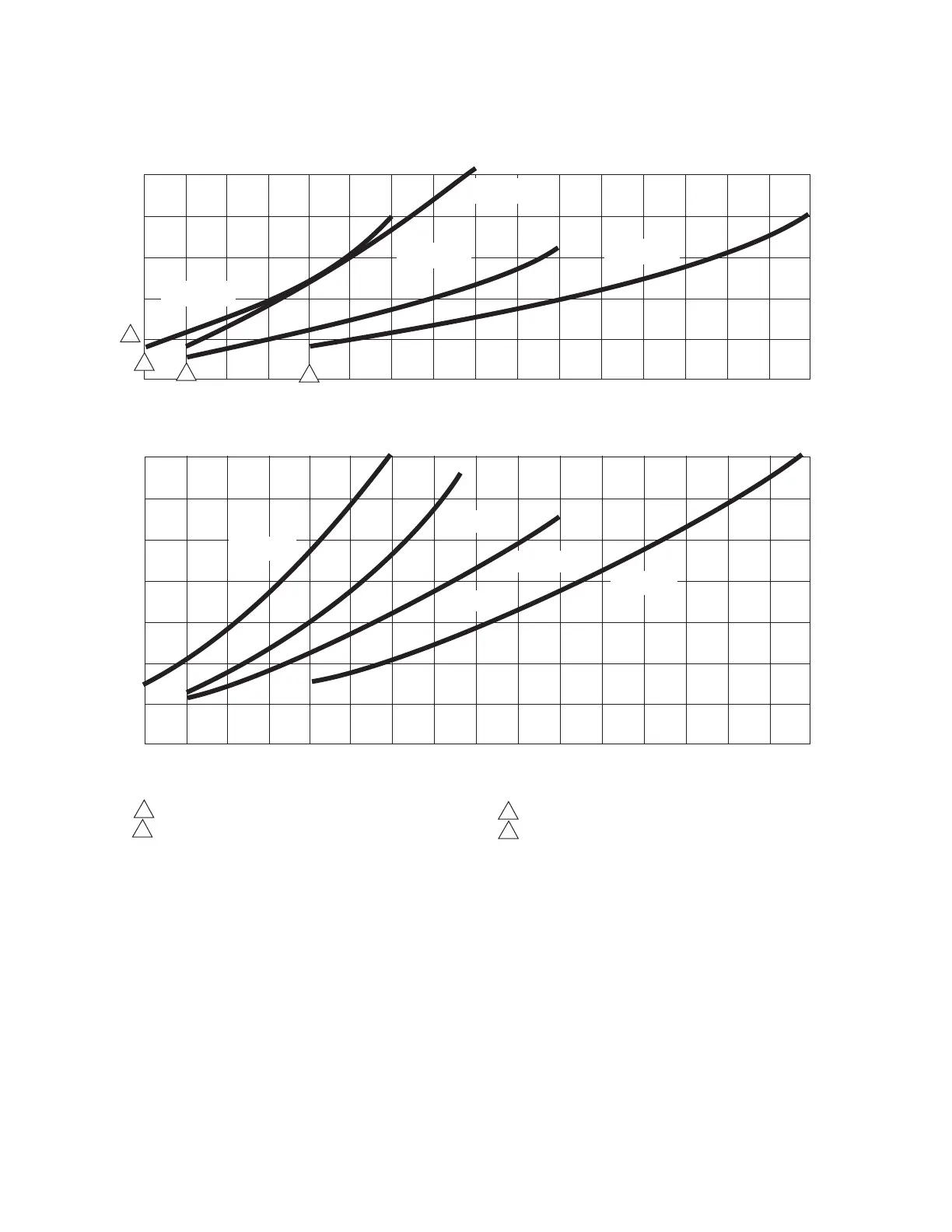

Fig. 1. Pressure Drop Vs. Airflow.

Temperature Ratings:

Operating Ambient: 40° to 125°F (4° to 52°C).

Temperature of Airflow Through Cells: 40° to 125°F

(4° to 52°C).

Maximum Cell Washing Temperature: 220°F (140°C).

Storage and Shipping Ambient: Minus 40°F to plus 140°F

(minus 40°C to plus 60°C).

Mounting:

Mounts in the return air duct of a forced air heating, cooling, or

ventilating system. Mount upstream from an atomizing

humidifier. See Planning the Installation section.

Weight:

See Table 3.

Dimensions:

See Fig. 2.

Approvals:

Underwriters Laboratories Inc. Listed: File E30954.

CAPACITY IN cfm (m

/hr)

1 MINIMUM RECOMMENDED cfm FOR 20 x 12-1/2 in. (508 x 318 mm) MODEL.

2 MINIMUM RECOMMENDED cfm FOR 16 x 25 in. (406 x 635 mm),

20 x 20 in. (508 x 508 mm), 16 x 20 in. (406 x 508 mm) MODELS.

3 MINIMUM RECOMMENDED cfm FOR 20 x 25 in. (508 x 635 mm) MODEL.

4 SELECT SIZE THAT MOST CLOSELY FITS DIMENSIONS OF

FURNACE/AIR HANDLER RETURN AIR OPENING

M13654

700

(1190)

800

(1360)

900

(1530)

1000

(1700)

1100

(1870)

1200

(2040)

1300

(2210)

1400

(2380)

1500

(2550)

1600

(2720)

1700

(2890)

1800

(3060)

1900

(3230)

2000

(3400)

.25

(62.2)

.20

(49.7)

.15

(37.3)

.10

(24.9)

.05

(12.4)

PRESSURE DROP IN in. wc (Pa)

600

(1020)

500

(850)

400

(680)

20 x 12-1/2 in.

(508 x 318 mm)

20 x 20 in.

(508 x 508 mm)

16 x 25 in.

(406 x 635 mm)

16 x 20 in.

(406 x 508 mm)

20 x 25 in.

(508 x 635 mm)

700
