HE120A,B BY-PASS DRUM HUMIDIFIER
68-0190–3
2
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number.
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Logistics
Honeywell Inc., 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386 (612) 951-1000
In Canada—Honeywell Limited/Honeywell Limitée, 155 Gordon Baker Road, North York, Ontario M2H 3N7.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
M12254A
11-11/16 (297)
10-7/8 (276)
10-15/16
(278)
12-3/8 (314)
SPECIFICATIONS
Capacity:
At 120°F (49°C) plenum temperature and 0.20 static pressure
drop across supply and return:
17 gallons per day (gpd) or 64 liters per day (lpd).
Humidified Area:
For precise sizing and product selection, use Honeywell’s
HumidiCalc™ humidifier sizing software. If unavailable, refer to
Table 1.
Table 1. Size Of Area That Can Be Humidified.
Drum Motor:
24 Vac, 3W, 1 rpm, bi-directional.
Plenum Opening Dimensions (Height x Width):
6-5/8 in. x 8-1/2 in. (168 mm x 216 mm).
By-Pass Duct Opening (Diameter):
6 in. (152 mm).
Dimensions:
Refer to Fig. 1.
Testing Standard:
Air Conditioning and Refrigeration Institute: Standard 610.
Models:
HE120A Tradeline® By-Pass Drum Humidifier package
includes:
mounting template and hardware,
self-piercing saddle valve,
24 Vac transformer and wire,
by-pass tubing,
summer shut-off damper,
H908A Convertible Humidity Control.
HE120 B Tradeline® By-Pass Drum Humidifier package
includes:
mounting template and hardware,
self-piercing saddle valve,
24 Vac transformer and wire,
by-pass tubing,
summer shut-off damper,
H1008A Automatic Humidity Control with HumidiCalc+™
Software.
House Air Changes
Area (up to)
Description Per Hour
Sq ft Sq m
Loose Two 1,845 171
Average One 2,575 239
Tight One-half 4,045 376

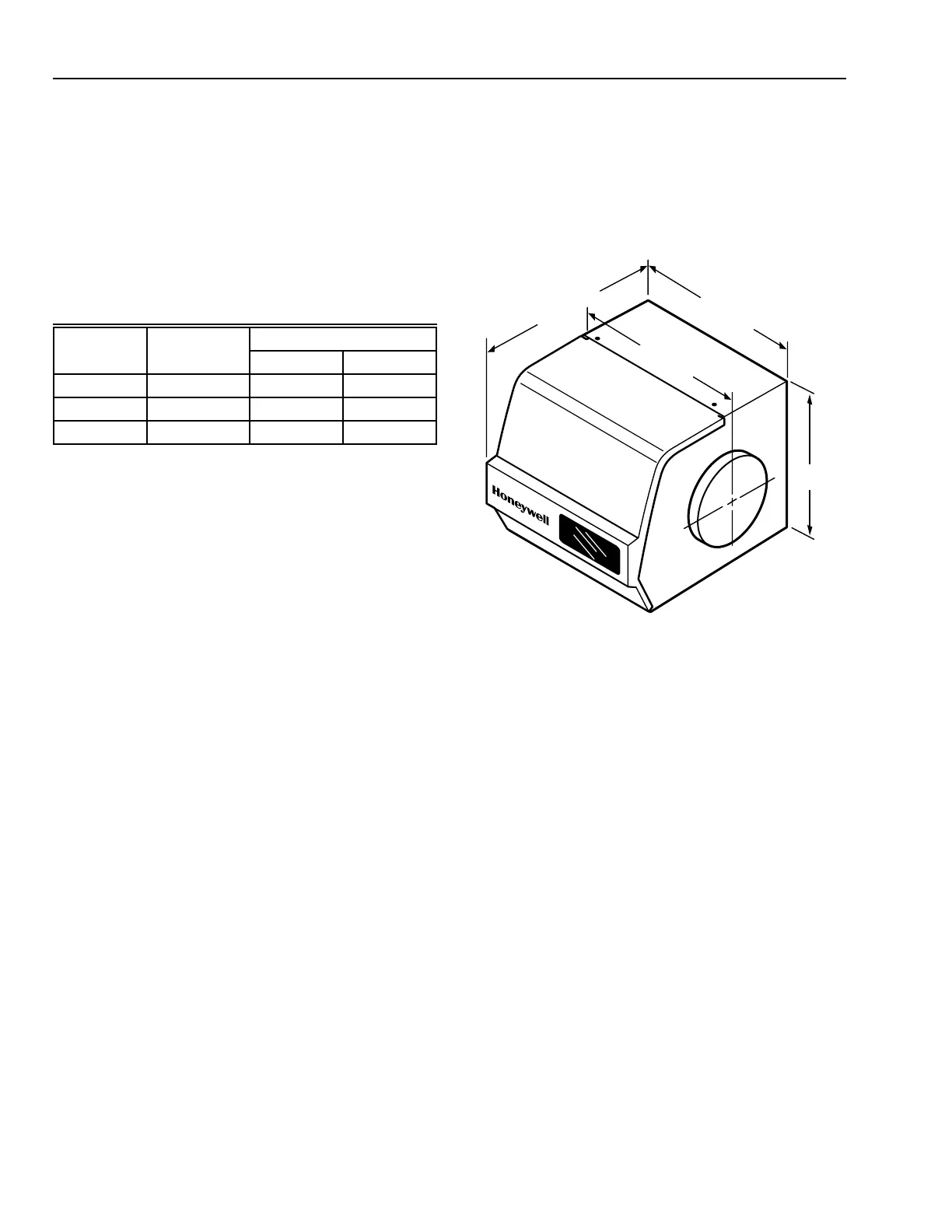

Fig. 1. HE120A,B Dimensions in in. (mm).
Accessories:
C7089H Outdoor Temperature Suensor.
H1008A Automatic Humidity Control with HumidiCalc+™
Software (software calculates dewpoint to prevent
moisture condensation).
H908A Convertible Humidity Control.
HC40 Automatic Humidifier Flushing Timer.
HumidiCalc™ Humidifier Sizing Software (software
calculates required humidifier capacity for application).
PC8900 Perfect Climate Comfort Center™ Control.
