SERIES 90 MODUTROL IV
™
MOTORS
63-2631—07 8

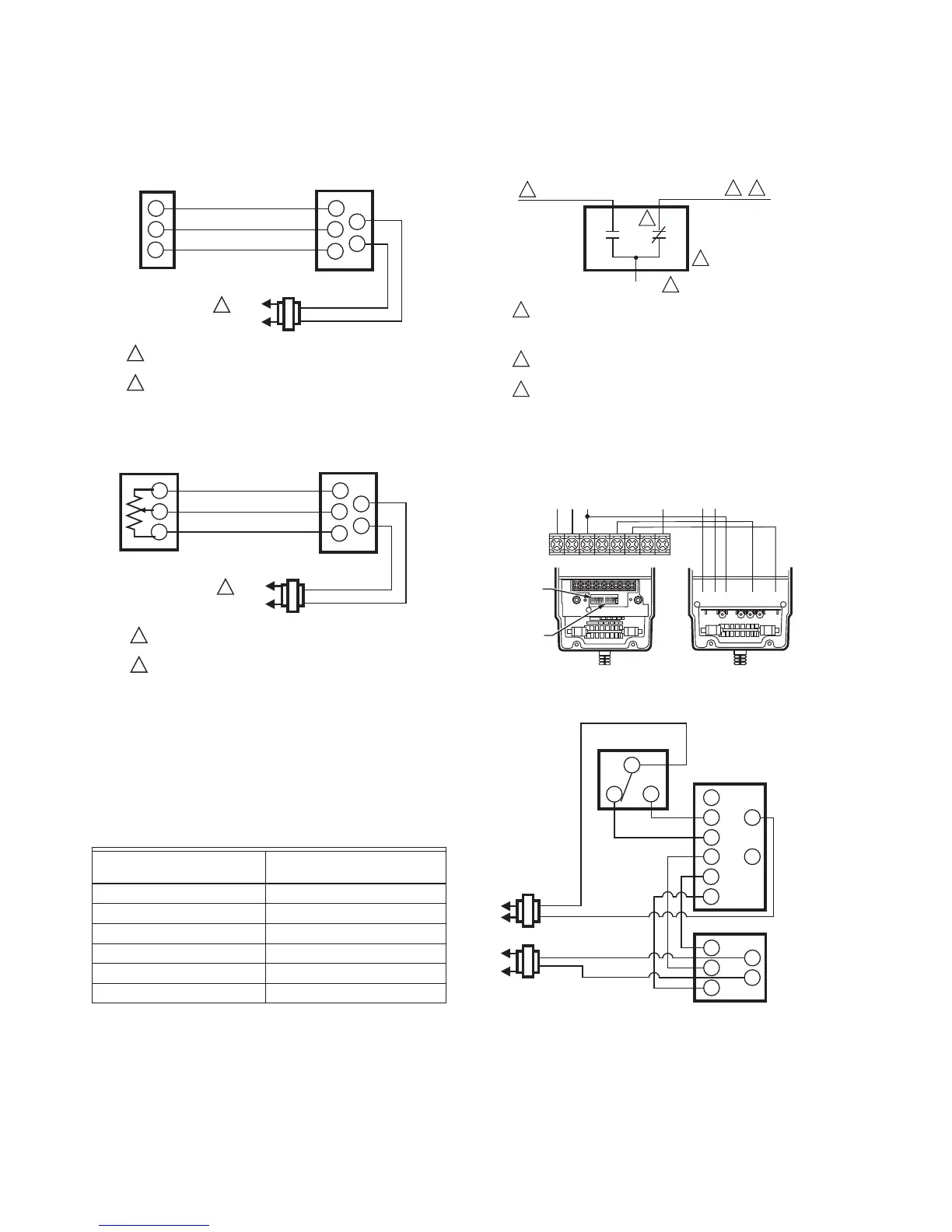

Fig. 5. Typical Series 90 Wiring.
Fig. 6. Wiring for Potentiometer Control
For controlling up to six Series 90s in parallel with a 135 ohm
pot or slide wire type series 90 controller, add the appropriate
resistor indicated in the table below to ONE of the Series 90
motors, from terminal B to terminal W. As an alternative, one
221508A2 module can be used to provide any of the resistor
values given below:
Table 7. Resistor Values of Motors in Parallel
Fig. 7. Auxiliary Switch Schematic.
Fig. 8. Series 90 Slave Motor Connection.
Fig. 9. Series 60 Controller.
Number of Motors in
Parallel Resistor Value
1 None
2 140 Ohms
3 72 Ohms
4 47 Ohms
5 36 Ohms
6 29 Ohms
L1
(HOT)
L2
1
1
2
R
W
B
R
W
B
T1
T2
TRANSFORMER
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
TRANSFORMER MAY BE INTERNAL OR EXTERNAL
M770A
SERIES 90
CONTROLLER
MOTOR
L1
(HOT)
L2
1
1
2
R
W
B
R
W
B
T1
T2
TRANSFORMER
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
TRANSFORMER MAY BE INTERNAL OR EXTERNAL
M13708
135 OHM
POTENTIOMETER
MOTOR
BLUE LEAD
YELLOW LEAD
RED LEAD
USE NEC CLASS 1 WIRING UNLESS POWER SUPPLY
MEETS CLASS 2 REQUIREMENTS. TAPE UNUSED LEADS.
ENSURE THE CURRENT DRAW OF THE EXTERNAL CIRCUIT
IS LESS THAN SWITCH CONTACT RATING.
ON TWO-SWITCH MOTORS, SECOND SWITCH HAS BLACK
LEADS WITH BLUE, YELLOW, AND RED TRACERS.
SOME AUXILIARY SWITCH ASSEMBLIES INCLUDE ONLY
RED AND YELLOW LEADS. SOME OTHERS DO NOT INCLUDE
THE YELLOW LEAD.
M17099
1
1
1
2
2
2
2
3
3
To Next Page
