M7261,M7272,M7274,M7281,M7282,M7284,M7285,M7286,M7294
SPECIFICATIONS

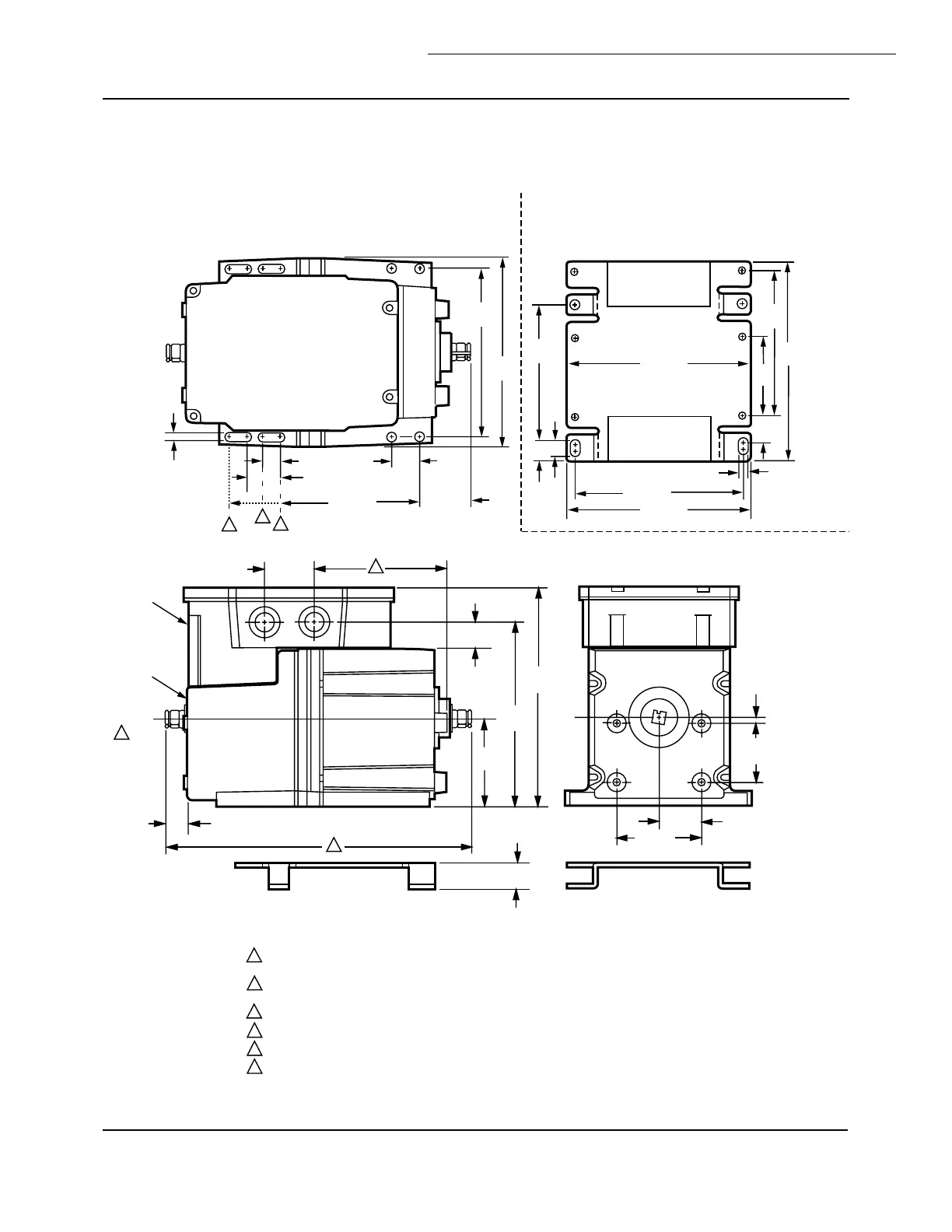

Fig. 1—Dimensions of M7261, M7272, N7274, M7281, M7282, M7284, M7285, M7286, M7294 Modutrol IV
Motors in in. [mm].
M5507A
5
1
SPRING RETURN MODEL SHOWN
1.25 [32]
2.50 [64]
1.75
[44]
.15
[4]
4.88
[124]
5.5
[140]
.80
[20]
4.06 [103]
.50 [13]
.96 [24]
.27
[7]
1.47 [37]
WIRING
BOX
BASE
MOTOR
AUXILARY
END
POWER
END
ADAPTER
BRACKET
.76 [19]
2.59
[66]
5.39
[137]
6.45
[164]
1.5 [38]
.60 [15]
.75
[19]
3
TOP VIEW OF BRACKET ONLY
3.93
[100]
4.22
[107]
2.3
[58]
.64
[16]
.67
[17]
4.88 [124]
.43
[11]
5.54 [141]
.27 [7]
5.82
[148]
2
POWER END
4
5.37 [136]
1 FOR HIGH TORQUE (60 LB-IN.) SPRING RETURN MODELS 3.9 [98]; FOR LOW TORQUE (25 LB-IN.)
SPRING RETURN MODELS 3.4 [85.5]; FOR NON-SPRING RETURN MODELS 2.4 [61].
2 FOR HIGH TORQUE (60 LB-IN.) SPRING RETURN MODELS 8.76 [222.5]; FOR LOW TORQUE (25 LB-IN.)
SPRING RETURN MODELS 8.26 [209.8]; NON-SPRING RETURN MODELS 7.3 [185].
3 FOR HIGH TORQUE (60 LB-IN.) SPRING RETURN MODELS.
4 FOR LOW TORQUE (25 LB-IN.) SPRING RETURN MODELS.
5 FOR NON-SPRING RETURN MODELS.
6 M72X1, M72X2 MODELS DO NOT HAVE AUXILIARY SHAFT. ALL OTHER DIMENSIONS ARE THE SAME.
