- 23 -

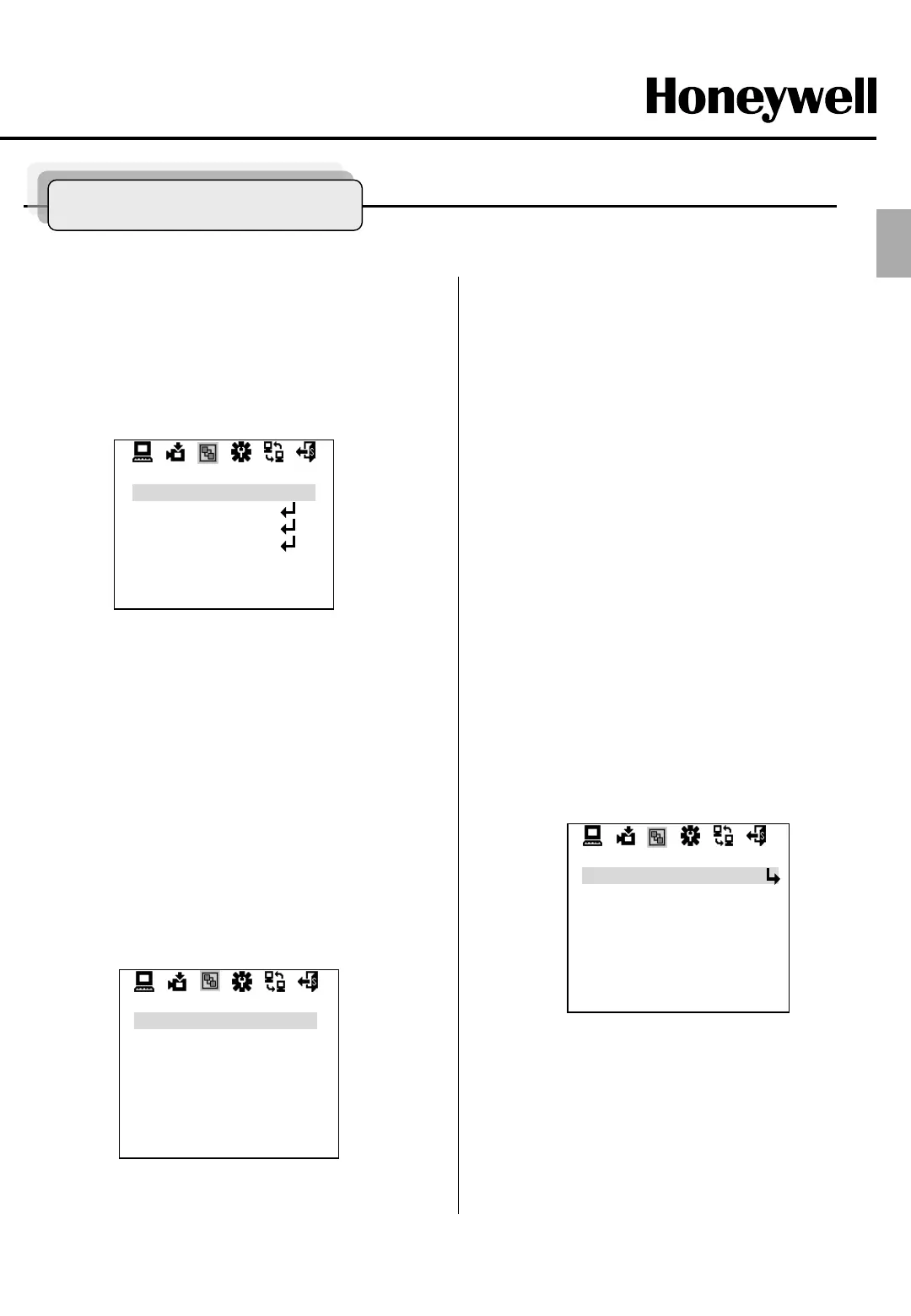

Camera Function
8. MEMORY FUNTION
8-1. DNR MODE
: Image noise can be reduced by using the DNR function.
The intensity of the Noise Reduction filter can be selected
High or Low.
DNR MODE OFF → LOW →HIGH
<< MEM FUNC . SETUP >>
DNR MODE
PIP MODE
QUAD MODE
MD MODE
MIRROR.
STILL
RETURN
OFF
OFF
OFF
< DNR MODE >
8-4. MD MODE
:Supports Motion detection and 64 areas can be selectable.
① Mode : User can decide whether you will use motion
detection function or not
MODE OFF → ON
② Motion area
: User can configure motion detection area. Area selection
method is same to BMB area selection
8-2. PIP MODE
: PIP (Picture-in-Picture) works when Digital zoom is
working. After you make CONTROL “ON” and exit OSD
menu, if you push LEFT, RIGHT buttons then digital
zoom will work and you can get PIP on the screen.
① Control of PIP
: This function makes PIP On/Off .
CONTROL OFF → ON
② Position of PIP
: PIP display can have a position of Right-Top, Right-
Bottom,
Left-Top, Left-Bottom.
.
POSITION R.BOTTOM → … → L.TOP
<< PIP MODE >>
CONTROL
POSITION
RETURN
OFF
R .TOP
< PIP MODE >
8-3. QUAD MODE
: QUAD Mode supports 4 split screen display. There are two
working mode of “manual push” or “sequence switching”
for split screen change.
① Display mode
: It makes QUAD mode ON/OFF. If it is selected as LIVE,
normal video will be displayed, and if it is selected as
QUAD,
screen will be split.
DISPLAY LIVE → QUAD
② Sequence
: If SEQUENCE is set as “ON” then each split screen will
display still image, and still image will be changed by time
interval decided at dwell time.
SEQUENCE OFF → ON
③ Switching time
: When SEQUENCE is set as “ON”, still image’s refresh
time
can be decided by this DWELL TIME value (sec)
DWELL TIME 10 → 11 → …. → 100
<< QUAD MODE >>
DISPLAY
CAPTURE
SEQUENCE
DWELL TIME
RETURN
LIVE
PUSH
OFF
10
< QUAD MODE >
