Honeywell pro Series User Manual

2
UWP Mounting System installation

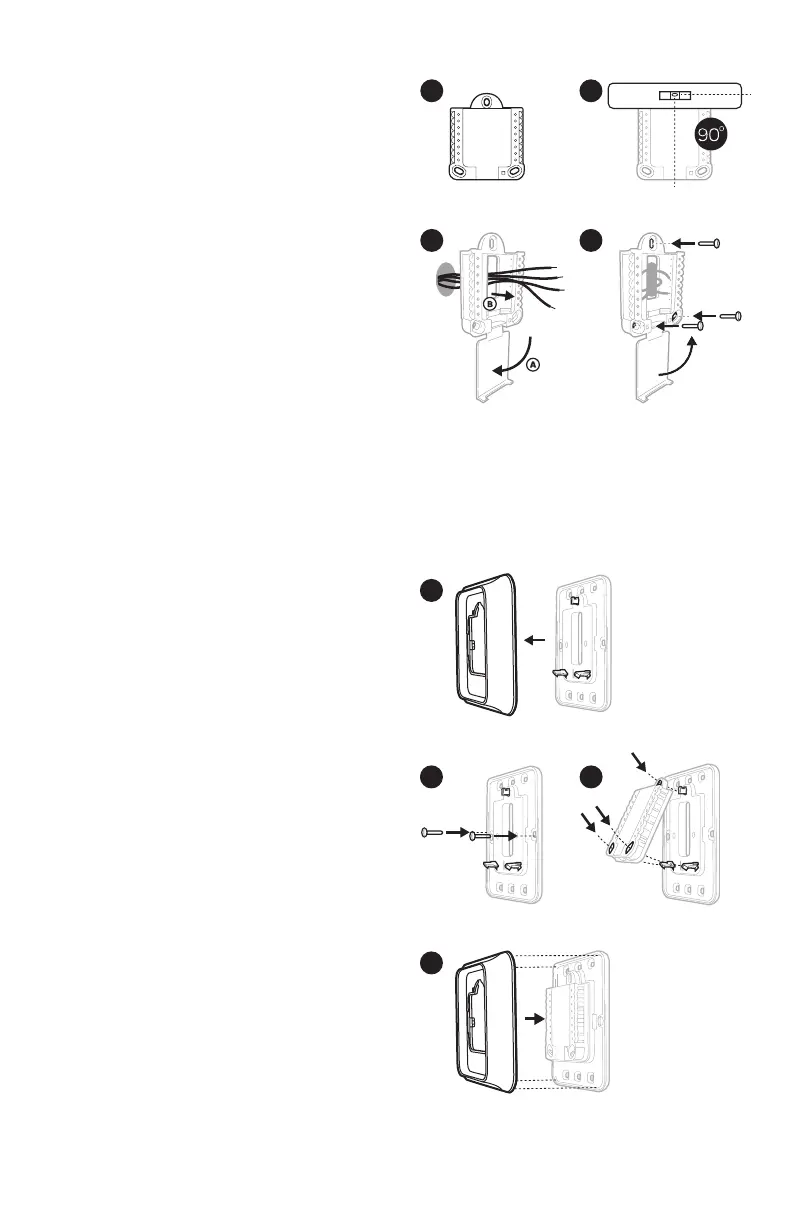

1. Open package to find the UWP. See
Figure 1.
2. Position the UWP on the wall. Level and
mark hole positions. See Figure 2.
Drill holes at marked positions, and
then lightly tap supplied wall anchors
into wall using a hammer.
‒ Drill 7/32” holes for drywall.
3. Pull the door open and insert wires
through wiring hole of the UWP. See
Figure 3.
4. Place the UWP over the wall anchors.
Insert and tighten mounting screws
supplied with the UWP. Do not
overtighten. Tighten until the UWP
no longer moves. Close the door. See
Figure 4.
1
2
3
4
Optional Cover Plate installation
Use the Optional Cover Plate when:
• Mounting the thermostat to an
electrical junction box
• Or when you need to cover paint gap
from the old thermostat.
5. Separate the Junction Box Adapter
from the Cover Plate. See Figure 5.
6. Mount the Junction Box Adapter to
the wall or an electrical box using any
of the eight screw holes. Insert and
tighten mounting screws supplied with
Cover Plate Kit. Do not overtighten.
Make sure the Adapter Plate is level.
See Figure 6.
7. Attach the UWP by hanging it on the
top hook of the Junction Box Adapter
and then snapping the bottom of the
UWP in place. See Figure 7.
8. Snap the Cover Plate onto the
Junction Box Adapter. See Figure 8.
Use 3x supplied
screws #8 11/2”
Use 2x
supplied
screws
#6 5/8”
1/4” to 3/8”
1
2
3 4
1 2
3
4
8
7
6
5
M37809

Honeywell pro Series Specifications

General

Wi-Fi Connectivity	Yes
Display	Touchscreen
Programmability	7-day programmable
Features	Geofencing
Temperature Range	40°F to 90°F (4°C to 32°C)
Smart Features	Amazon Alexa, Google Assistant, IFTTT
Compatibility	Most 24V Heating and Cooling Systems (including heat pump, gas, oil, electric)
