BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN
48 EN1B-0198GE51 R0801
Nowadays the AUI is used to connect a small
device called transceiver, which adapts between the
AUI on the device and the Ethernet medium used
in the current installation.
18
915

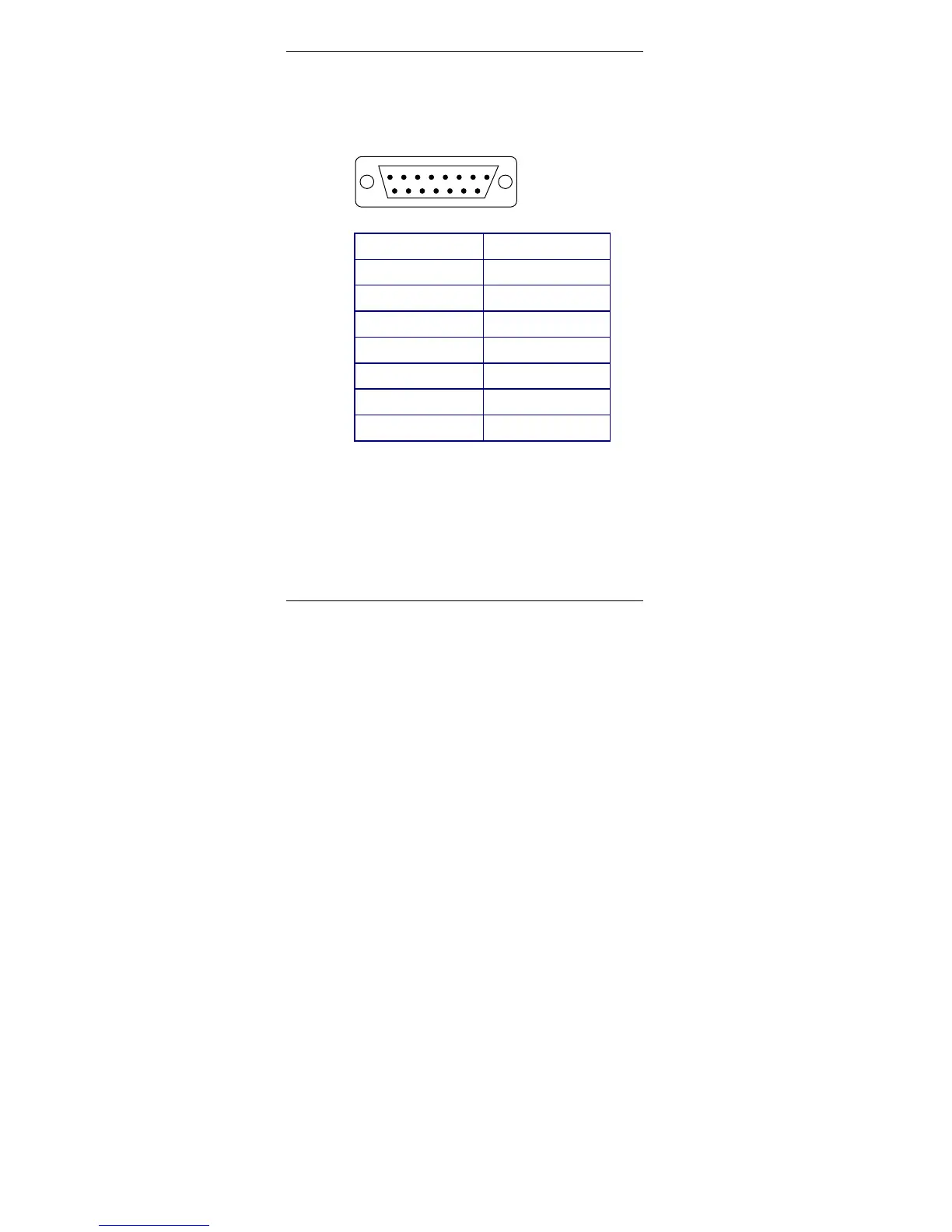

AUI Interface Specification
male connector
1. Coll. shield 9. Coll. presence -
2. Coll. presence + 10. Transmit -
3. Transmit data + 11. Transmit shield
4 Receive shield 12. Receive -
5. Receive data + 13. +12 to +15 VDC
6. GND 14. Power shield
7. reserved 15. reserved
8. reserved
Table 7-2: Attachment Unit Interface (AUI) cable pin layout
