RM7838B,C 7800 SERIES RELAY MODULE
13 66-1094—08

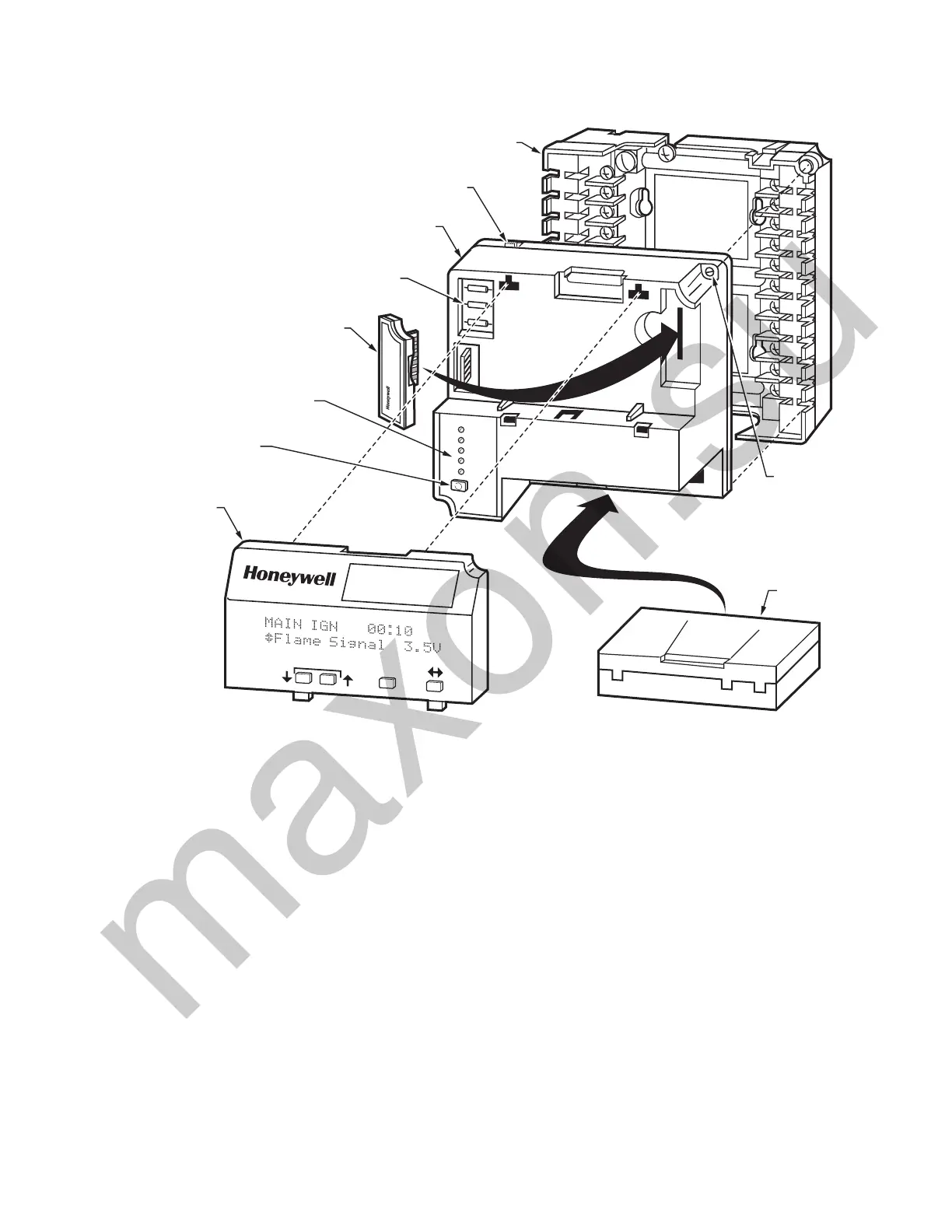

Fig. 6. RM7838B,C Relay Module exploded view.
Mounting Other System Components
(Fig. 4)
Mount other required and optional system components by
referring to Fig. 4 and the instructions provided with each
component.
PRINCIPAL TECHNICAL
FEATURES
The RM7838B,C provides all customary flame safeguard
functions as well as significant advancements in safety,
annunciation and system diagnostics.
Safety Shutdown (Lockout) Occurs
If:
1. INITIATE Period
a. Purge card is not installed or removed.
b. Purge card is bad.
c. Configuration jumpers were changed after
200 hours of operation.
d. AC line power errors, see Operation.
e. Four minute INITIATE period is exceeded.
2. STANDBY Period
a. Flame signal is present after 240 seconds after Run
Complete.
b. Preignition Interlock is open after 30 seconds.
c. Ignition/pilot valve terminal is energized.
d. Main valve terminal is energized.
e. Internal system fault.
f. Purge card is not installed or removed.
g. Purge card is bad.
h. Flame detected during the last two seconds.
HONEYWELL
POWER
PIL
OT
FLAME
MAIN
ALARM
RES
ET
KEYBOARD
DISPLAY
MODULE
PURGE
TIMER
WIRING
SUBBASE
CAPTIVE
MOUNTING
SCREW
RUN/TEST
SWITCH
CONFIGURATION
JUMPERS
RELAY
MODULE
SEQUENCE
STATUS
LED PANEL
RESET
BUTTON
FLAME
AMPLIFIER
SCR
OLL
MODE
- SAV
E -
BURNER CONTROL
M1230
