Wiring
Terminal Designations
L Heat pump system monitor K Optional wire saver module
C Common wire from secondary side of
cooling transformer, if 2 transformers
G Fan relay
W2
(AUX)
2nd stage heat relay (heat pump
auxiliary, emergency heat)
Y2 2nd stage compressor contactor
W
(O/B)
1st stage heat relay (changeover valve
for heat pumps)
Y 1st stage compressor contactor
U1 Universal terminal for indoor air quality
products (humidifier, dehumidifier,
ventilator)
R Heating power. Connect to
secondary side of heating
system transformer
U2 Universal terminal for indoor air quality
products (humidifier, dehumidifier,
ventilator)
Rc Cooling power. Connect to
secondary side of cooling
system transformer

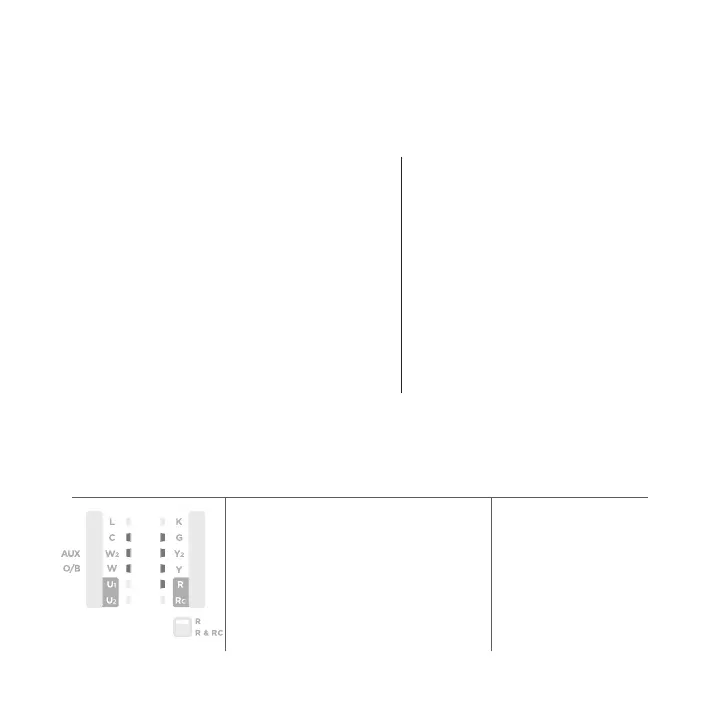

Wiring Configurations
Two stage furnace and air-conditioning
C Common wire (optional)
W2 Heat relay (stage 2)
W Heat relay
G Fan relay
Y2 Compressor contactor (stage 2)
Y Compressor contactor (stage 1)
R Power
Notes
• Thermostat C wire
is optional for this
application. C wire
required if Homekit
is used.
• Set the R Jumper
Switch on the wall
plate to R

Honeywell Round Specifications

General

Temperature Control	Manual
Programmable	No
Wi-Fi Enabled	No
Color	White
Type	Non-programmable
Compatibility	Single-stage heating and cooling systems
Mounting	Wall
