Honeywell Round User Manual

9

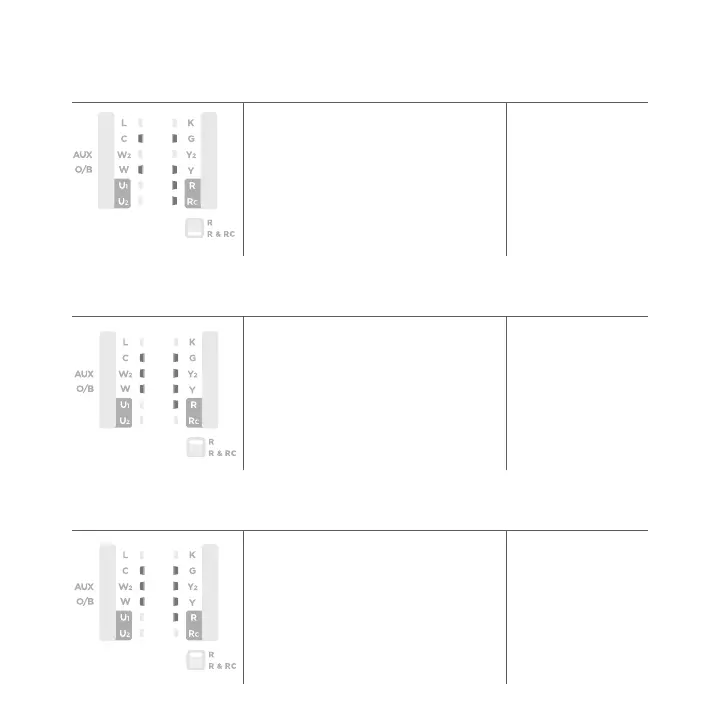

Separate heating and cooling transformers
C Common wire (optional)
W Heat relay
G Fan relay
Y Compressor contactor (stage 1)
R Power
Rc Power
Notes
• Thermostat C wire
is optional for
this application.
C wire required if
Homekit is used.
• Set the R Jumper
Switch on the wall
plate to R & Rc
Single stage heat pump with auxiliary heat (electric or dual fuel)
C Common wire (optional)
AUX Auxiliary/Emergency heat
O/B Reversing valve
G Fan relay
Y Compressor contactor (stage 1)
R Power
Notes
• Thermostat C wire
is optional for
this application.
C wire required if
Homekit is used.
• Set the R Jumper
Switch on the wall
plate to R
Two stage heat pump with auxiliary heat (electric or dual fuel)
C Common wire (optional)
AUX Auxiliary/Emergency heat
O/B Reversing valve
Y2 Compressor contactor (stage 2)
G Fan relay
Y Compressor contactor (stage 1)
R Power
Notes
• Thermostat C wire
is optional for
this application.
C wire required if
Homekit is used.
• Set the R Jumper
Switch on the wall
plate to R

Honeywell Round Specifications

General

Temperature Control	Manual
Programmable	No
Wi-Fi Enabled	No
Color	White
Type	Non-programmable
Compatibility	Single-stage heating and cooling systems
Mounting	Wall
