T410A,B ELECTRIC HEAT THERMOSTATS
68-0145—2
2
SPECIFICATIONS
IMPORTANT
The Specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed
specifications. Also, this product is tested and
calibrated under closely controlled conditions, and
some minor differences in performance can be
expected if those conditions are changed. For exact
engineering specifications, contact your Honeywell
sales representative.
Models:
T410A Electric Heating Thermostat: Spst switching;
heating circuit makes on temperature fall.
T410B Electric Heating Thermostat: Dpst switching; makes
double line break with setting dial at OFF position;
heating circuit makes on temperature fall.
Electrical Ratings (Noninductive Resistive Rating):
22A at 120/208/240 Vac; 19A at 277 Vac.
Wiring Connections:
6 in. (150 mm) copper leadwires, suitable for connecting to
aluminum wiring if approved CO/ALR solderless wire
connectors are used.
Sensing Element:
Bimetal.
Setpoint Adjustment:
Setting dial on the face of the thermostat.
Temperature Range:
40° to 80°F (5° to 25°C).
Differential:
3°F (2°C), nonadjustable.
Switching:
Micro Switch snap-acting switch.
Mounting:
Mounts directly on NEMA standard 2 x 4 in. vertical outlet
box, or 4 x 4 in. outlet box if used with ring adapter (ordered
separately), using 6-32 Robertson slotted screws.
Dimensions:
See Fig.1.
Approvals:
Underwriters Laboratories Inc. Listed: File No. E47434,
Guide No. XAPX.
Canadian Standards Association Certified: File No.
LR1322.
Accessory:
272804A Range Stop and Locking Cover Assembly: Includes
locking cover screws, Tinnerman clips, wrench and range
stops—two plastic pins to insert inside cover for field-
selection of minimum and maximum temperature settings.
M5802A
FRONT VIEW SIDE VIEW
•
4
0
•
5
0
•
6
0
•
7
0
•
8
0
•
˚F
1-1/2 (38)
3/4
(19)
5/8 (14)
2-1/8
(54)
3-5/16
(83)
1-3/8
(35)
1-1/8 (29)
2-3/4 (70)
4-1/2
(115)

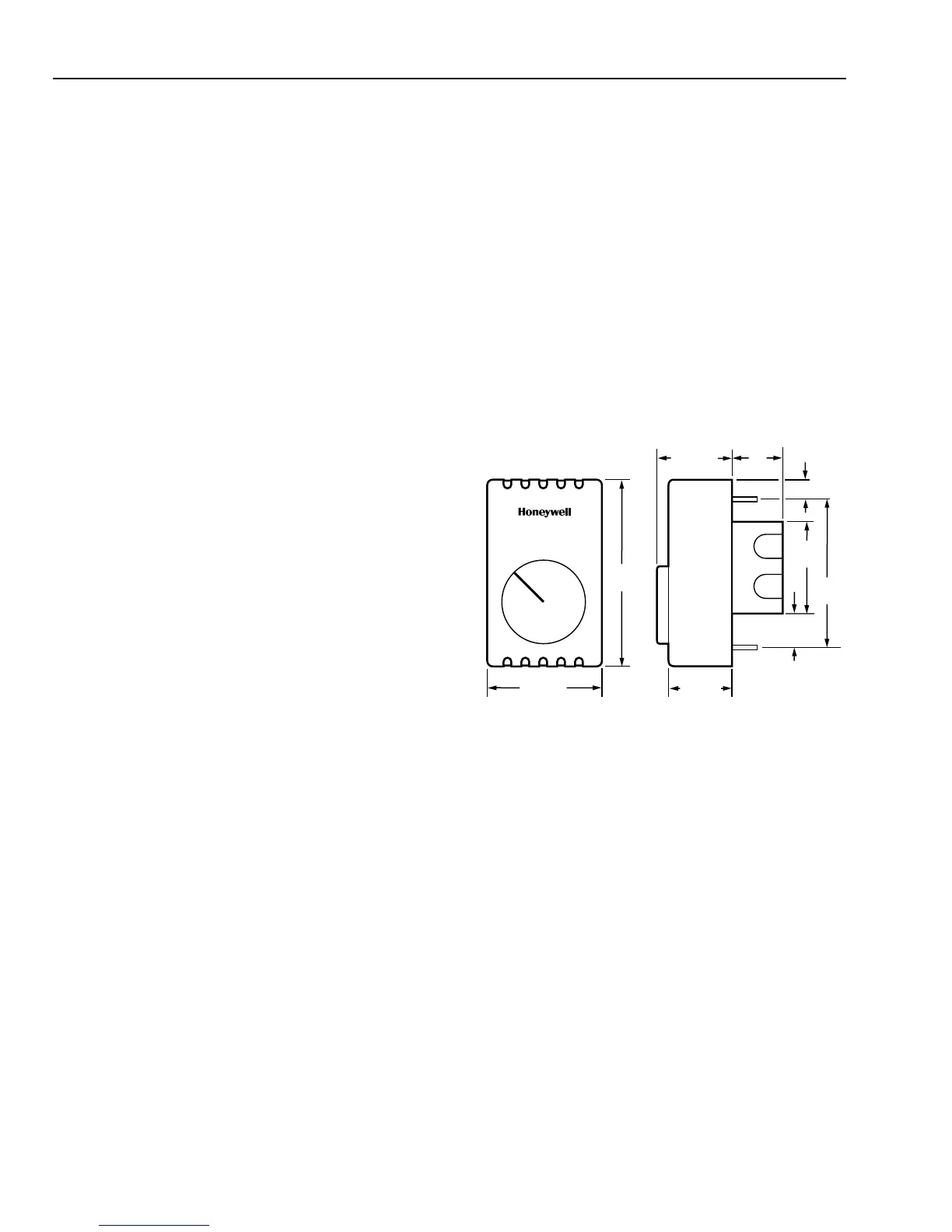

Fig. 1. T410 approximate dimensions in in. (mm).
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number or specify:
1. Model Number.
2. Switching.
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Relations
Honeywell, 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386
In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
