Honeywell T5+ User Manual

10 11

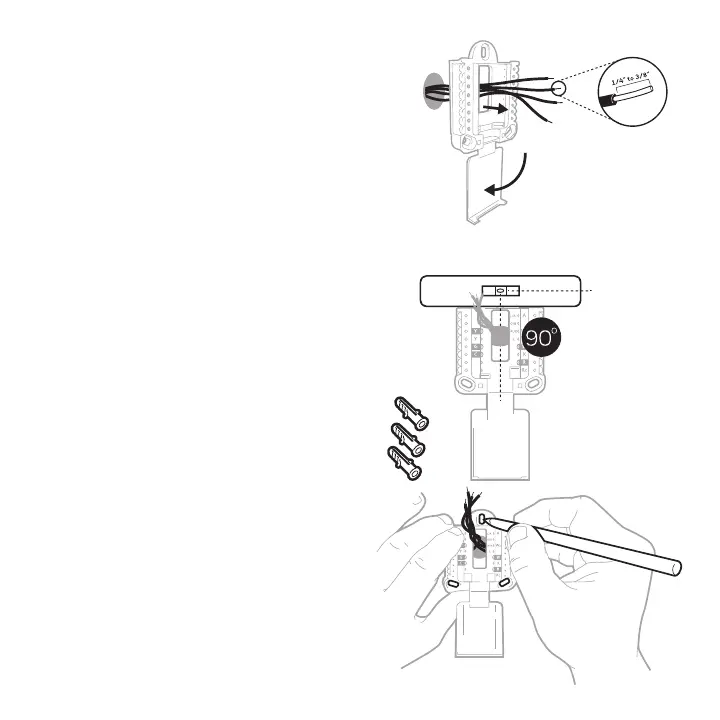

12 Insert the wall anchors
It is recommended that you use the
wall anchors included in the box to
mount your thermostat.
You can use the UWP to mark where
you want to place the wall anchors.
a) Level the wall plate.
b) Mark the location of the wall
anchors using a pencil.
c) Drill the holes.
d) Insert wall anchors.
e) Make sure anchors are flush with
wall.
Tip: If your box contains red
anchors, use a 7/32” (5.6 mm)
drill bit. If your box contains yellow
anchors, use a 3/16” (4.76 mm) drill
bit.
11 Bundle and insert wires through
the UWP
Pull open the UWP and insert the
bundle of wires through the back of
the UWP.
Make sure at least 1/4-inch of each
wire is exposed for easy insertion
into the wire terminals.

Honeywell T5+ Specifications

General

Category	Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Energy Star Certified	Yes
Geofencing	Yes
Programmability	Yes
Humidification Control	No
Dehumidification Control	No
Remote Control	Yes, via app
Warranty	1-Year Limited Warranty
Scheduling	7-day programmable
App Control	Yes (Honeywell Home app)
Compatibility	Works with Amazon Alexa, Google Assistant, IFTTT
