T775A,B,C,D REMOTE TEMPERATURE CONTROLLER
3 63-2489—2
Contact Ratings:
1/2 hp; 9.8 FLA, 58.8 LRA at 120 Vac.
1/2 hp; 4.9 FLA, 29.4 LRA at 240 Vac.
125 VA pilot duty at 120/240 Vac.
10A at 24 Vac (resistive).
Approvals:
Underwriters Laboratories Inc. Listed: File no. E4436.
Canadian Standards Assoc. certified: File no. LR47125.
Accessories:
T775A,B:
A775A1003 Temperature Sensor Simulator.
C7100C Duct Mount Averaging Sensor.
198212CA Water Resistant Sensor.
203401B Water Tight Sensor.
T7047C1090 Wall Mounted Sensor Case.
107324A Bulb Holder, duct insertion.
121371A Copper Immersion Well.
121371E Stainless Steel Well.
107048 Heat Conduction Compound, 4 ounce.
C7043A1098 Case and Immersion Well for running conduit
to sensor.
T775C,D:
121371A Copper Immersion Well.
121371E Stainless Steel Well.
107408 Heat Conduction Compound, 4 ounce.
C7043A1098 Case and Immersion Well for running conduit
to sensor.

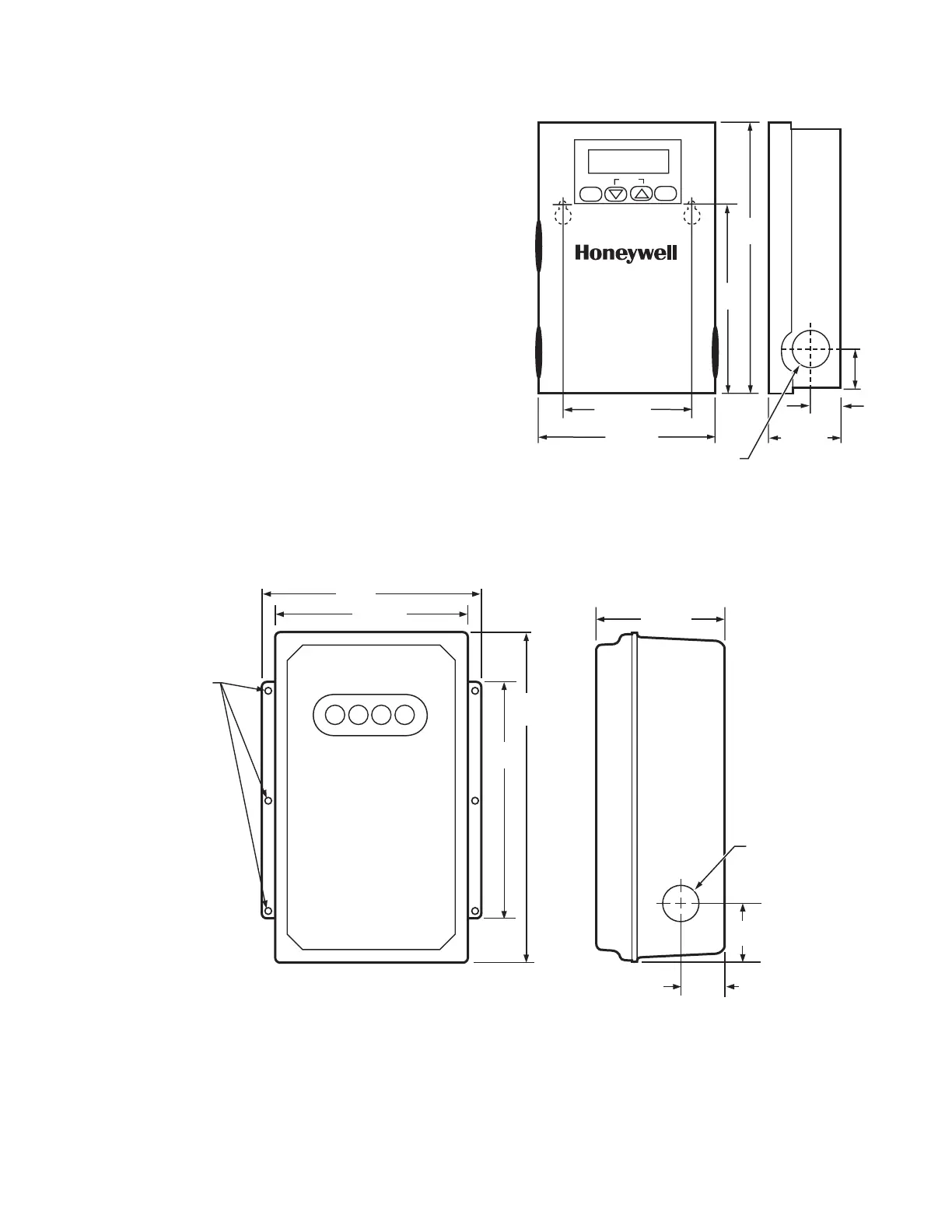

Fig. 1. Approximate dimensions of T775A,B in in. (mm).
Fig. 2. Approximate dimensions of T775C,D in in. (mm)
SELECT
SET
ENTER
M344C
3-13/16 (97)
4-3/4 (121)
8-1/2
(216)
5-7/32
(134)
1-1/4
(32)
1-1/4
(32)
2-3/8 (60)
7/8 (22) DIAMETER
M1301B
MOUNTING
HOLES
9
(229)
6 (153)
1-1/4
(32)
1-3/8
(34)
3-1/2 (89)
5-1/4 (133)
6-1/2
(165)
7/8 (22)
DIAMETER
