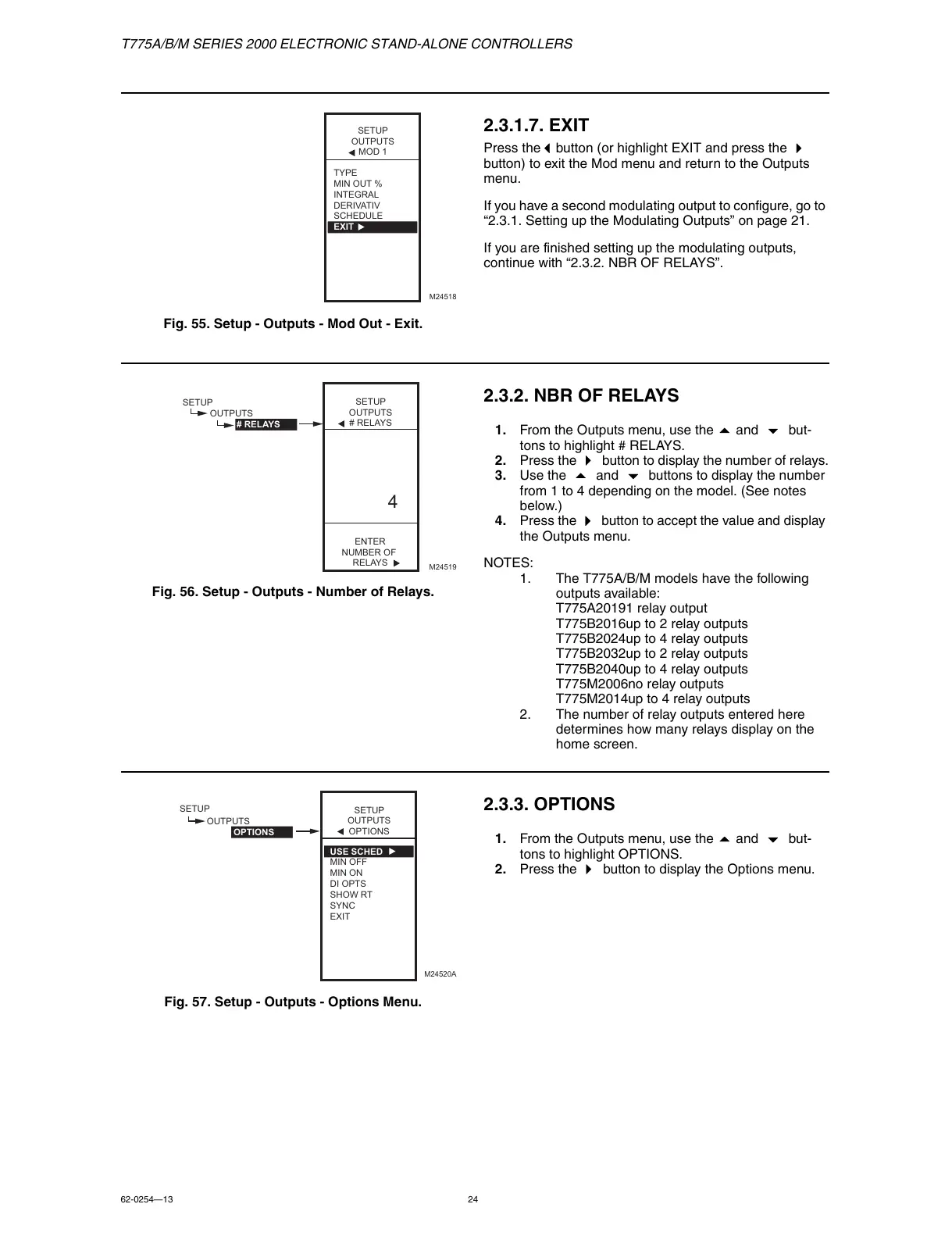

T775A/B/M SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLERS
62-0254—13 24
Fig. 55. Setup - Outputs - Mod Out - Exit.
2.3.1.7. EXIT
Press thebutton (or highlight EXIT and press the 
button) to exit the Mod menu and return to the Outputs
menu.
If you have a second modulating output to configure, go to
“2.3.1. Setting up the Modulating Outputs” on page 21.
If you are finished setting up the modulating outputs,
continue with “2.3.2. NBR OF RELAYS”.
Fig. 56. Setup - Outputs - Number of Relays.
2.3.2. NBR OF RELAYS
1. From the Outputs menu, use the  and  but-
tons to highlight # RELAYS.
2. Press the
 button to display the number of relays.
3. Use the
 and  buttons to display the number
from 1 to 4 depending on the model. (See notes
below.)
4. Press the
 button to accept the value and display
the Outputs menu.
NOTES:
1. The T775A/B/M models have the following
outputs available:
T775A20191 relay output
T775B2016up to 2 relay outputs
T775B2024up to 4 relay outputs
T775B2032up to 2 relay outputs
T775B2040up to 4 relay outputs
T775M2006no relay outputs
T775M2014up to 4 relay outputs
2. The number of relay outputs entered here
determines how many relays display on the
home screen.
Fig. 57. Setup - Outputs - Options Menu.
2.3.3. OPTIONS
1. From the Outputs menu, use the  and  but-
tons to highlight OPTIONS.
2. Press the
 button to display the Options menu.
SETUP
OUTPUTS
MOD 1
TYPE
MIN OUT %
INTEGRAL
DERIVATIV
SCHEDULE
EXIT
M24518
SETUP
OUTPUTS
# RELAYS
ENTER
NUMBER OF
RELAYS
SETUP
OUTPUTS
# RELAYS
4
M24519
SETUP
OUTPUTS
OPTIONS
SETUP
OUTPUTS
OPTIONS
USE SCHED
MIN OFF
MIN ON
DI OPTS
SHOW RT
SYNC
EXIT
M24520A
