2. SETUP (ADVANCED OPTIONS) T775A/B/M SERIES 2000 CONTROLLER
27 62-0254–03

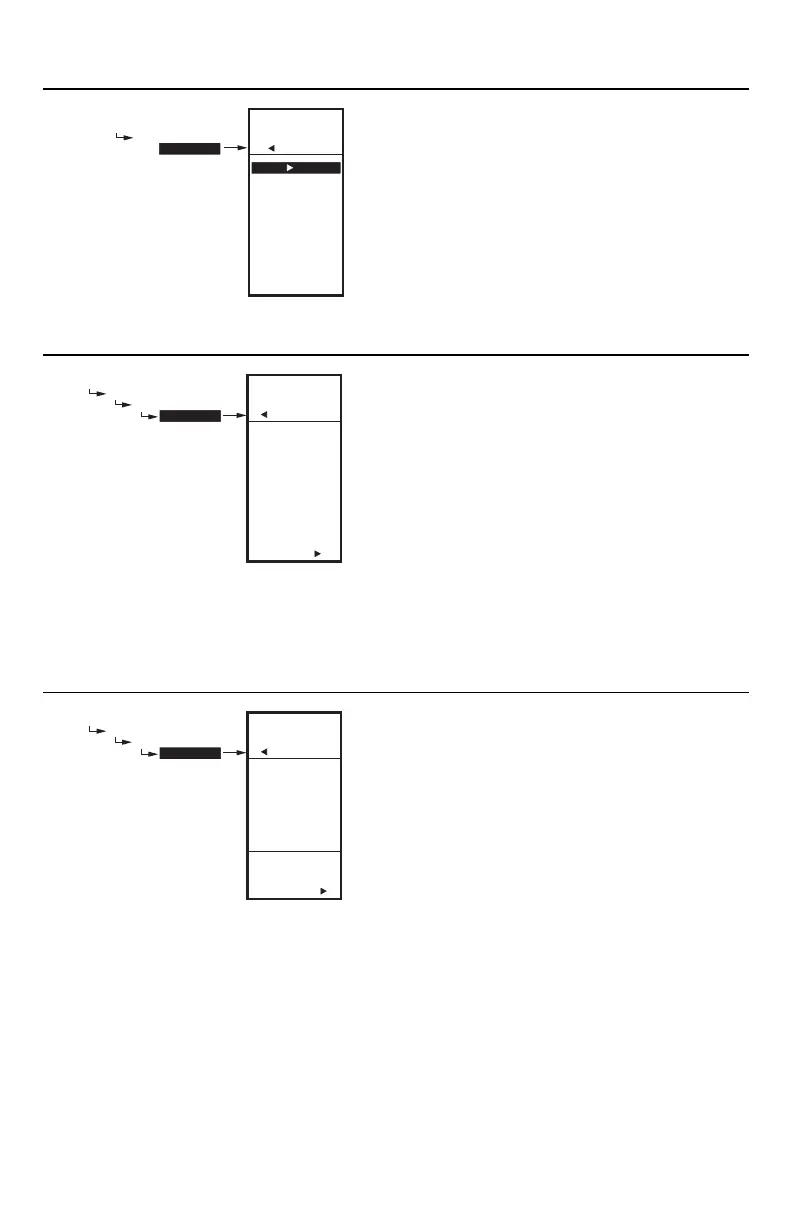

Fig. 62. Setup - Outputs - Floating Relay - Menu.
2.3.4.1.1. Floating Relay Menu
The Floating option is only available on the T775B2016,
T775B2024, T775B2032, and T775B2040 models.
When Relay 1 or Relay 3 is setup as floating, relays are
paired and the Float 1 or Float 2 menu displays with the
selections shown in Fig. 62.
Fig. 63. Setup - Outputs - Floating Relay - Actuator.
2.3.4.1.1.1. ACTUATOR (floating relay only)
The Actuator option displays only on the T775B2016,
T775B2024, T775B2032, and T775B2040 models when
the Type option = Floating.
1. From the menu, use the S and T buttons to high-
light ACTUATOR.
2. Press the X button to display the actuator value.
3. Use the S and T buttons to increase/decrease the
desired number of seconds.
Default: 90 seconds
Range: 0 to 3,600 seconds)
4. Press the X button to accept the value and display
the INTEGRAL option.
The actuator run time is defined as the time needed to
move the actuator from the fully closed to fully open
position and visa versa.
Fig. 64. Setup - Outputs - Floating Relay - Integral.
2.3.4.1.1.2. INTEGRAL (modulating/floating relay only)
The Actuator option displays only on the T775B2016,
T775B2024, T775B2032, and T775B2040 models when
the Type option = Floating.
1. From the menu, use the S and T buttons to high-
light INTEGRAL.
2. Press the X button to display the actuator value.
3. Use the S and T buttons to increase/decrease the
desired number of seconds.
Default: 400 seconds
Range: 0 to 3,600 seconds)
4. Press the X button to accept the value and display
the DERIVATIV option.
See Integral NOTES on page 22 for additional information
about setting the Integral time.
SETUP
OUTPUTS
FLOAT 1
SETUP
OUTPUTS
FLOAT 1
TYPE
ACTUATOR
INTEGRAL
DERIVATIV
SCHEDULE
RESET
EXIT
M24528
SETUP
OUTPUTS
FLOAT 1
ACTUATOR
ENTER
ACTUATOR
TIMING FOR
FLOAT 1
SETUP
OUTPUTS
FLOAT 1
ACTUATOR
90
SEC
M24529
SETUP
OUTPUTS
FLOAT 1
INTEGRAL
ENTER
INTEGRAL
TIME FOR
FLOAT 1
SETUP
OUTPUTS
FLOAT 1
INTEGRAL
400
SEC
M24530
