Honeywell T775L2007 Installation Instructions

T775L SERIES 2000 ELECTRONIC STAND-ALONE STAGING CONTROLLER
19 62-0257—11

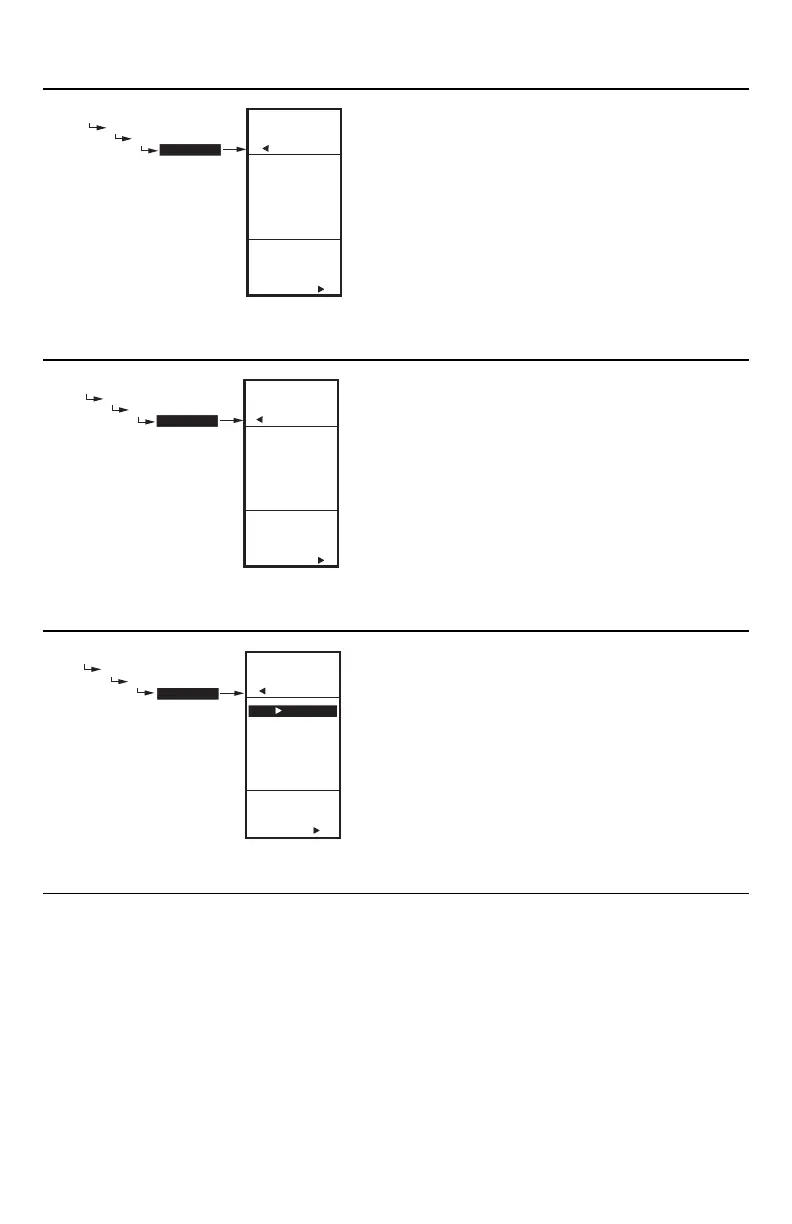

Fig. 41. Setup - Outputs - Loop 1 - On Delay.
1.3.4.4. ON DELAY
This is the minimum time delay between consecutive ON
stages. This applies to all stages including the 1st stage.
1. From the Loop 1 menu, use the and  buttons to
highlight ON DELAY, then press the  button to dis-
play the interstage on delay.
2. Use the  and  buttons to change the on delay
time.
Default: 0 (zero) seconds
Range: 0 to 3,600 seconds in 10 second
increments
There is a built-in minimum delay of 1 second
between stages upon energizing.
3. Press the  button to accept the value and display
the Loop 1 menu.
Fig. 42. Setup - Outputs - Loop 1 - Off Delay.
1.3.4.5. OFF DELAY
This is the minimum time delay between consecutive OFF
stages.
1. From the Loop 1 menu, use the and  buttons to
highlight OFF DELAY, then press the  button to
display the interstage off delay.
2. Use the  and  buttons to change the off delay
time.
Default: 0 (zero) seconds
Range: 0 to 3,600 seconds in 10 second
increments
There is a built-in minimum delay of 1 second
between stages upon energizing.
3. Press the  button to accept the value and display
the Loop 1 menu.
Fig. 43. Setup - Outputs - Loop 1 - Schedule.
1.3.4.6. SCHEDULE
The Schedule option displays only if the USE SCHED
parameter is set to Yes (see Fig. 31 on page 15).
1. From the Loop 1 menu, use the and  buttons to
highlight SCHEDULE.
2. Press the  button to display the value.
3. Use the  and  buttons to select YES or NO.
Default: YES
4. Press the  button to accept the value and display
the Loop 1 menu.
An individual output can be selected to be controlled or
not controlled by the schedule. If NO is selected, the
Setback selection does not appear in the Program menu
for this output.
SETUP
OUTPUTS
LOOP 1
ON DELAY
SETUP
OUTPUTS
LOOP 1
ON DELAY
0
SEC
ENTER
TIME FOR
INTER-
STAGE
ON DELAY
M24449
SETUP
OUTPUTS
LOOP 1
OFF DELAY
SETUP
OUTPUTS
LOOP 1
OFF DELAY
0
SEC
ENTER
TIME FOR
INTER-
STAGE
OFF DELAY
M24450
SETUP
OUTPUTS
LOOP 1
SCHEDULE
SETUP
OUTPUTS
LOOP 1
SCHEDULE
USE
SCHEDULE
FOR
LOOP 1
YES
NO
M24451
