T841A HEATING-COOLING THERMOSTATS
FAN RELAY

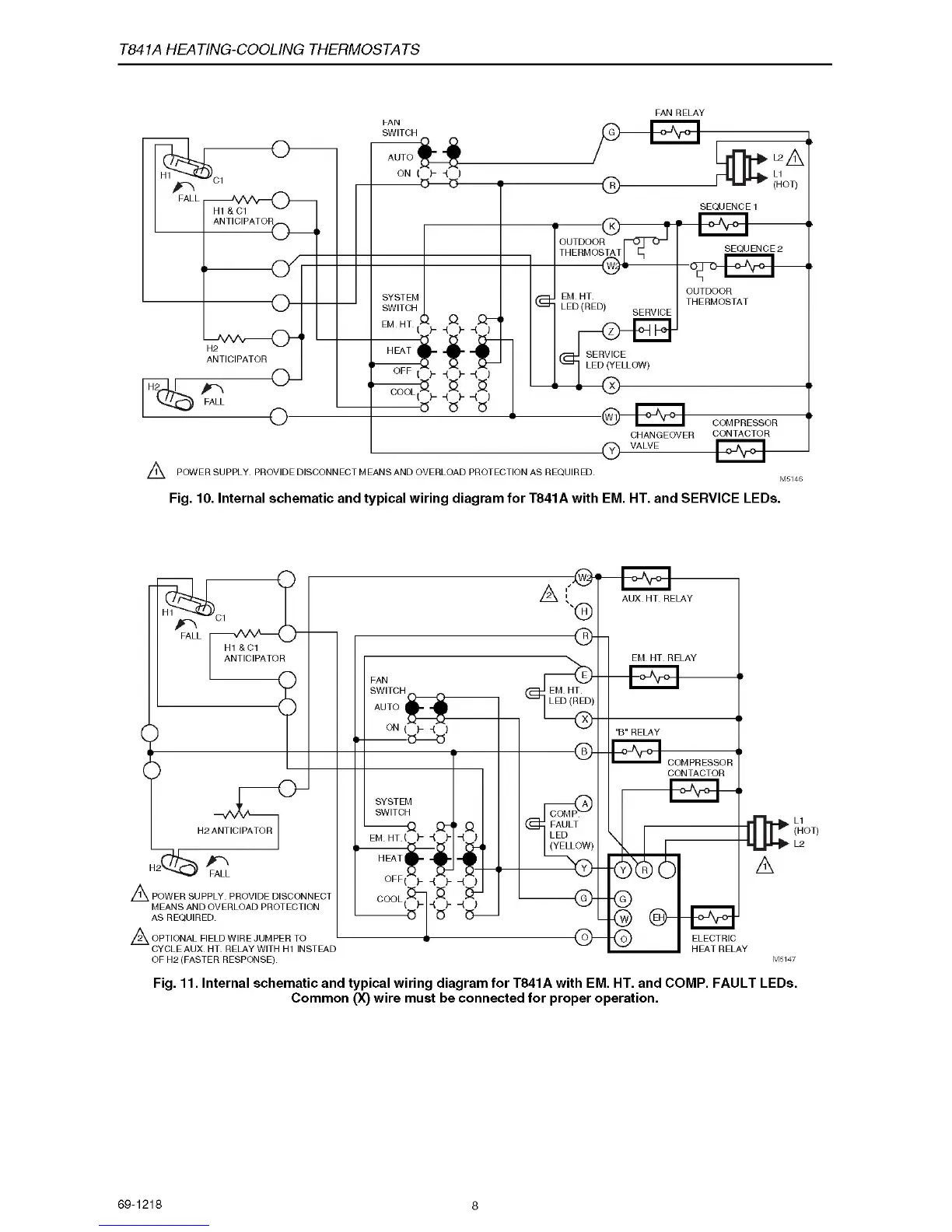

Fig. 11. Internal schematic and typical wiring diagram for T841A with EM. HT. and COMP. FAULT LEDs.
Common (X) wire must be connected for proper operation.
69-1218
