VEXT
VEXT
Signaling Device (LED)
Relay 2

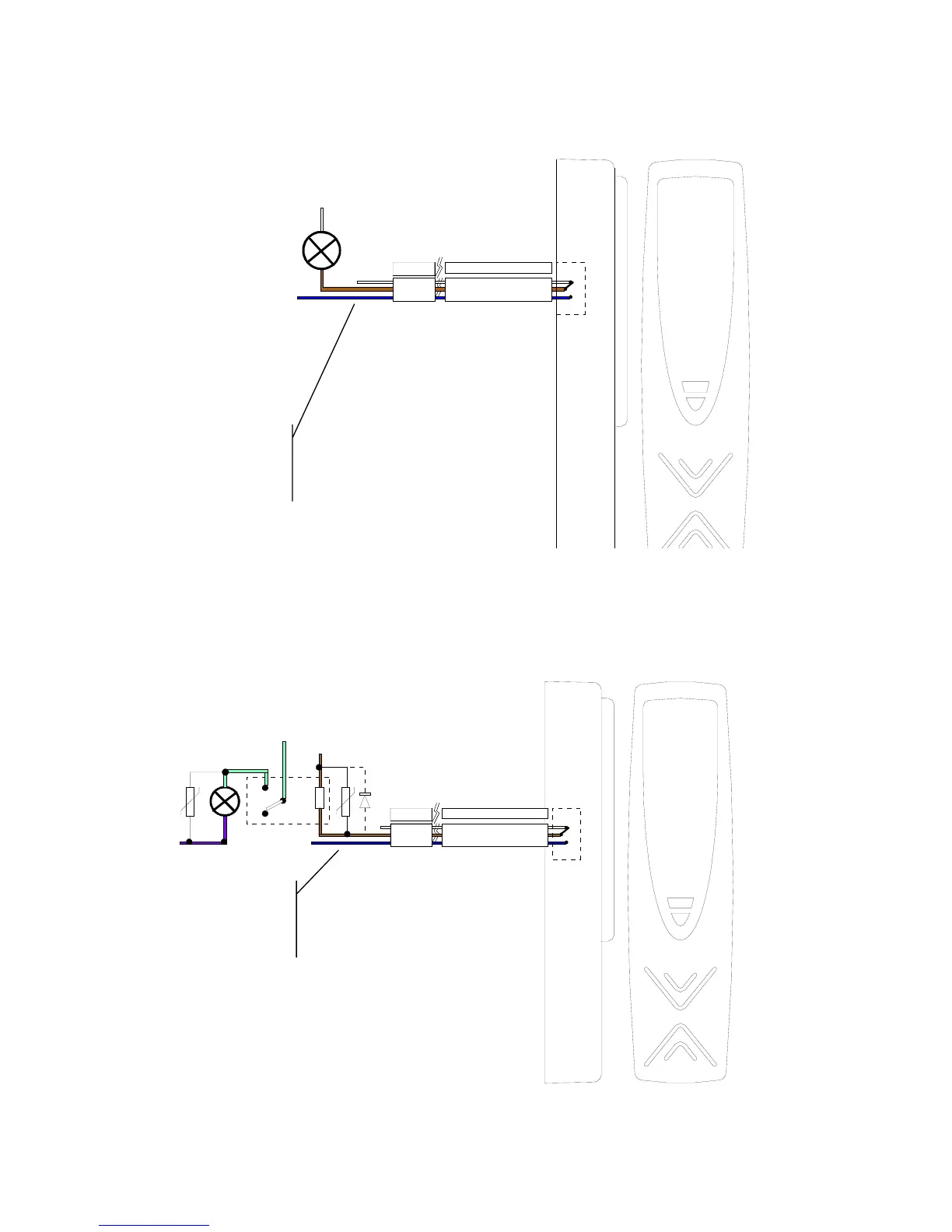

Figure 12: Connection for Output Relay 2 (NO) – Resistive Load – AC/DC
Voltage
VEXT_relay
VEXT _relay
coil for repeater relay
Transient Suppressor
:
Vext AC = Mov75Vac
Vext DC = diodo 1N4004
Relay 2
Mov x Vac
Transient
Suppressor
Vac_lamp
Vac_lamp
C
NC NO
Figure 13: Connection for Output Relay 2 (NO) – Inductive Load – Repeater
Relay
Brown = C
White = NC
Blue = NO
Brown = C
White = NC
Blue = NO
