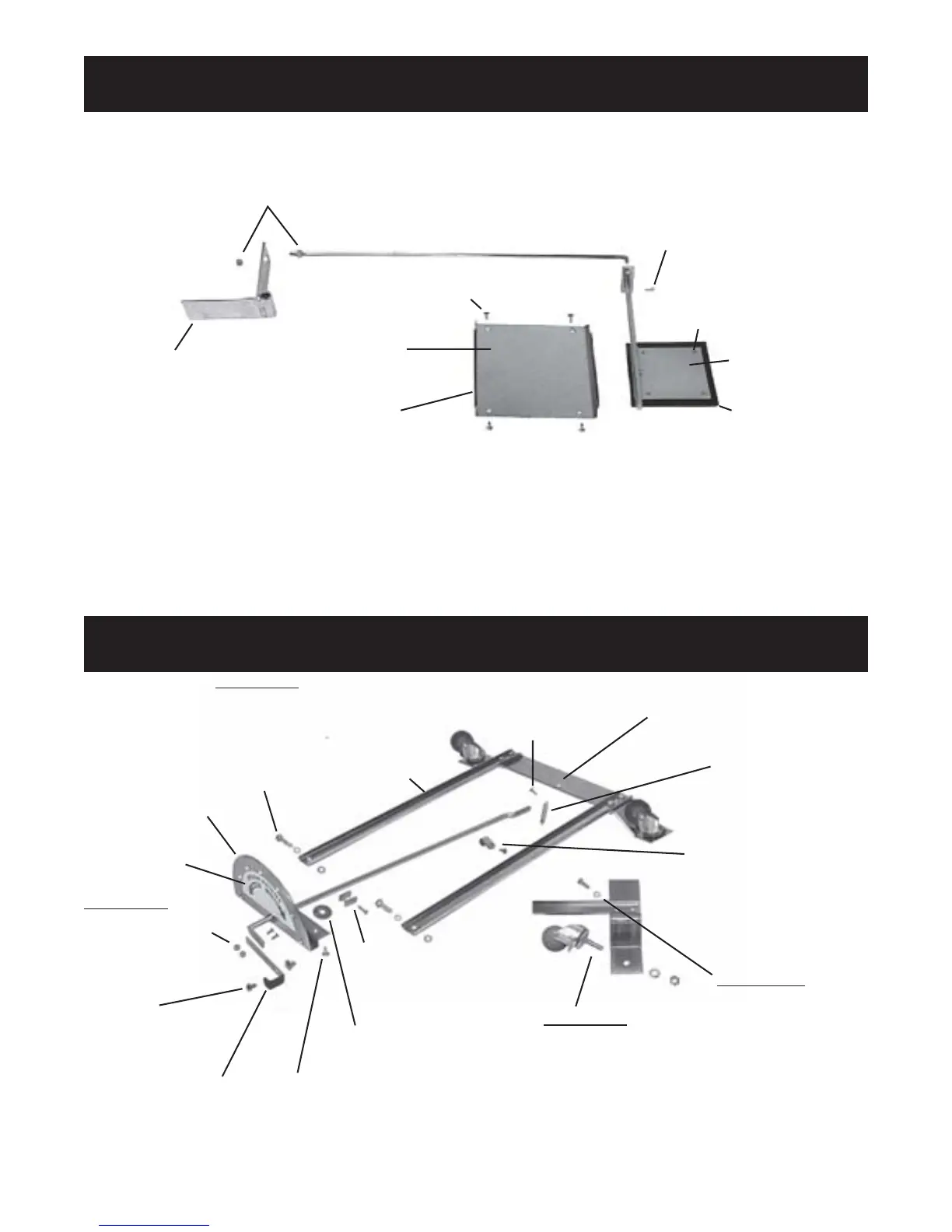

FOOT PEDAL & VACUUM ADJUSTMENT ASSEMBLY
BRUSH ADJUSTMENT ASSEMBLY
11
Nut, 1/4-20 (2)
#920011
Foot Pedal (Lever for Door)
#655101
Rod, Vacuum Adjustment
#657402
Cotter Pin
#A13507
Plate
#652301
Gasket, Duct
#653401
Screws, #8x1/2 THP (4)
#W136D
Plate, Vacuum Door
#652701
Seal, Vacuum Door
#657601
Screws, 8-32x5/16 PHP MS(4)
#W500D
Plate, Not Shown, Below Seal
#657202
Plate, Adjustment
#656601
Label, Brush
#655108
Arm, Caster Adjustment
#655110
Arm, Support (2)
#650301
Rod
#657403
Support, Caster
#658502
Screw, #8x1/2 THP
#W136D
Spring
#658302
Bracket
#652001
Screw, #8x1/2 THP
#W136D
Screw, #8x1/2 THP (2)
#W136D
Two (2) Sets:
Screw
#962010
Washer, 1/4 Lock
#980002
Nut, 1/4-20 Zinc
#920025
Two (2) Sets:
Caster
#659701
Washer, 3/8 Lock
#980009
Nut, 3/8-16 Hex
#920002
Four (4) Sets:
Screw, 1/4-20x3/4 HH
#W169D
Washer, 1/4 Lock
#980002
Washer, 5/16 Fender Zinc
#W212D
Stop, Adjustment Rod (2)
#658506
Screw, 8-32x3/4 PHP (2)
#962066
Two (2) Sets:
Nut, 6-32 Hex w/Nyloc
#W144D
Screw, 6-32x3/8 FHP
#W152D
Screw
#962057
Nut, Connecting
#920618
