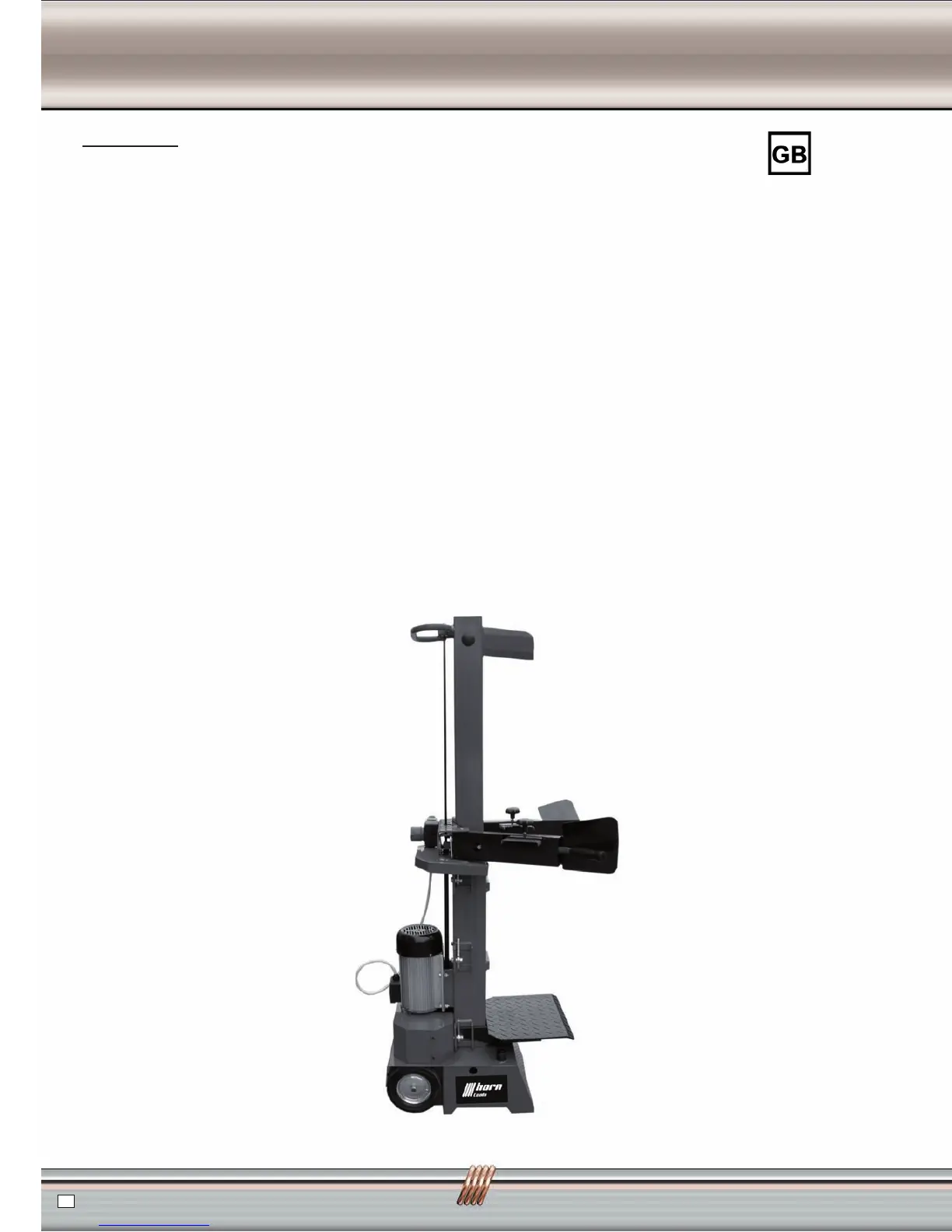

CONTENTS
Explanation of the Warning Symbols.................................................................................................................. Page 5
General Safety Instructions.................................................................................................................................. Page 6
Electrical Safety.................................................................................................................................................... Page 7
Assembly and Package Contents........................................................................................................................ Page 8
Assembly and Preparation................................................................................................................................... Page 8
Startup / Application
............................................................................................................................................. Page 9
Maintenance and Care.......................................................................................................................................... Page 11
Environment, Recycling and Disposal................................................................................................................ Page 12
Spare Parts and Parts Subject to Wear
............................................................................................................... Page 12
Specifications
........................................................................................................................................................ Page 13
Troubleshooting and Fault Clearance
................................................................................................................. Page 13
Exploded View....................................................................................................................................................... Page 14
Spare Parts List..................................................................................................................................................... Page 15
SPECIFICATIONS
Motor 400V~ 50Hz 3500W IP54
Splitting capacity
Diameter 12cm to 32 cm
Length 104 cm / 78 cm / 52 cm
Hydraulic oil volume 6 litres
Splitting blade stroke 480 mm
Forward speed 5.4 cm / sec
Reverse speed 11.7 cm / sec
Noise level 80.1 dB(A) idling; 92.5 dB(A) under load
Dimensions
Length 83 cm
Width
93 cm
Height 147 cm
Weight 115 kg
TROUBLESHOOTING AND FAULT CLEARANCE
Problem Possible Cause Remedy
1. Motor does not start.
1.1 No power in wall socket. 1.1 heck fuse box.
1.2 Extension cable defective.
1.2 Unplug, check and use new one, if
necessary.
1.3 Wrong supply, 400 V, three-phase
current.
1.3 5-pole plug with 1.5 mm diameter.
1.4 Switch defective. 1.4 Have it checked by electrician.
2. Wrong motor direction 2.1 Wrong polarity.
2.1 Change polarity using a screwdriver
(electrician).
2.2 Change polarity (electrician).
3.
Splitter not moving alt-
hough motor is running
3.1 Valve not opened, caused by loose
connection.
3.1 Tighten loose parts.
3.2 Oil level too low.
3.2 Replenish oil.
4.
Splitter working, however,
with untypical noise and
vibration.
4.1 Oil level too low.
4.1 Replenish oil.
4 13
