Horstmann ChannelPlus H17XL Series 2 User Manual

Display Information
The ChannelPlus H17XL Series 2
timeswitch has a fully graphical, back-lit
display. The information displayed will
change depending upon the settings
made and which mode you are in.
During different programming modes
and/or setting screens the current time,
day/date, holiday indicator will only
appear when necessary, this is to reduce
confusion during the programming
process. This is explained further in later
sections of this guide.
ACTIVATING THE BACK–LIT DISPLAY
The display will illuminate for
approximately 1 minute whenever a
button is pressed.
To illuminate the display for viewing
purposes only press the green menu
button under the front ap twice.
SETTING AND ADJUSTING
When setting or adjusting, the timeswitch will automatically return to the running mode if
no buttons are pressed for approximately 1 minute.
If the setting or adjusting has not been nished, please start the procedure again.
TIME OF DAY
The ChannelPlus H17XL incorporates a factory set clock and calendar which means that no
adjustments should be necessary to the time of day and BST/GMT time changes take place
automatically.
3

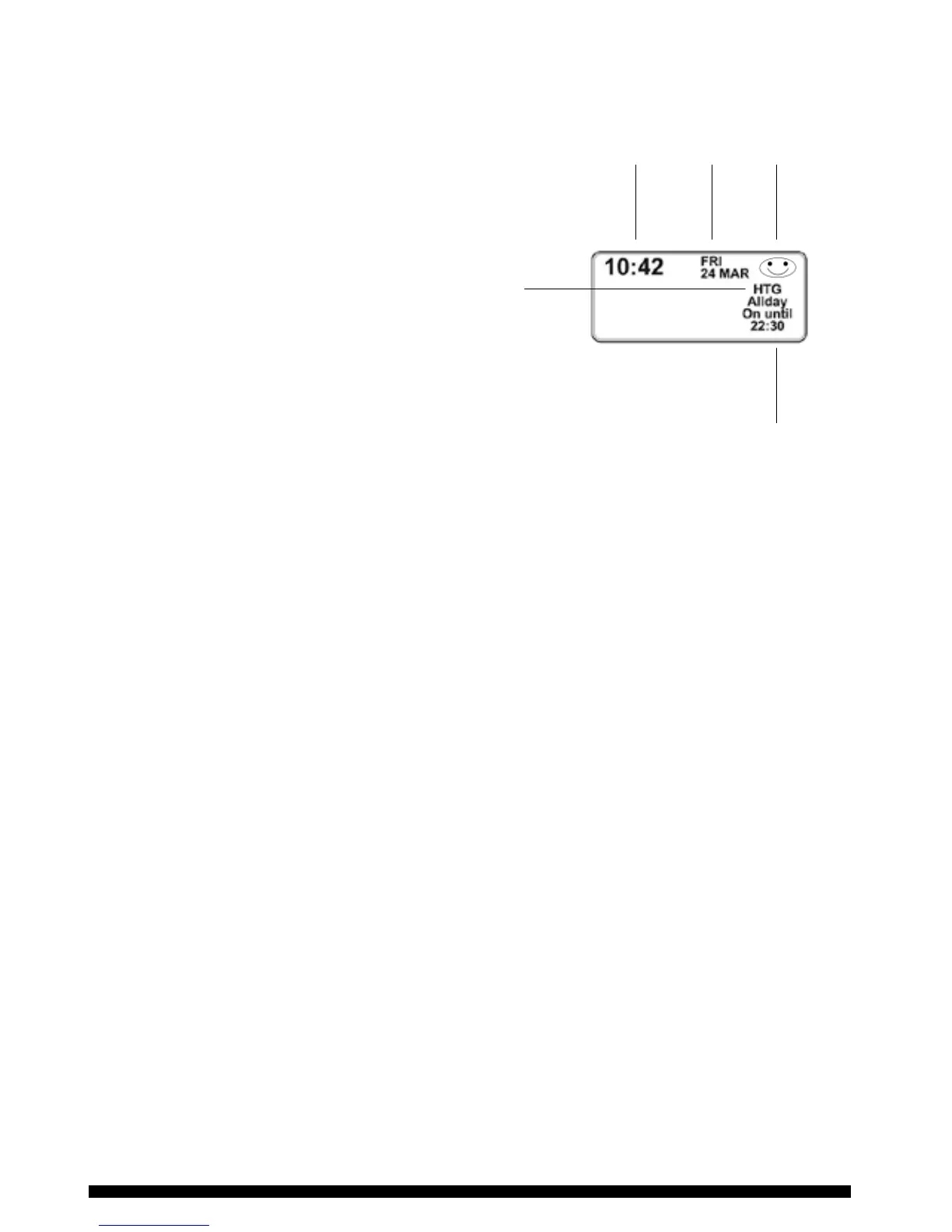

Time
Day
Date
Channel
header
Holiday
function
active
Channel/
Zone
status

Horstmann ChannelPlus H17XL Series 2 Specifications

General

Brand	Horstmann
Model	ChannelPlus H17XL Series 2
Category	Switch
Language	English
