H) After all the fence line is fixed, reserve10-15cm terminals respectively for both front and
tail ends. Strip the terminal store veal the copper lines for 2-3cm (Fig. A). Remove the nuts,
fasten the copper lines on copper conductors. Then tighten the nuts (Fig. B).Front tail con-
nect with the red pole, rear tail connect with the black pole. When the charger is connected
to the charging station and the fence line starts to operate, the red lamp should be off.
Note: Do not fold or repeat wiring with the rest fence line. Cut it instead (Fig. C)
Mowing Height:
The mowing height can be adjusted from 2.5cm to 5.5cm by adjusting knob beside the
display panel.
Note: Make sure that the power is off before operation.
To protect the charging station from hitting by the mower, please put the fence line like
below:

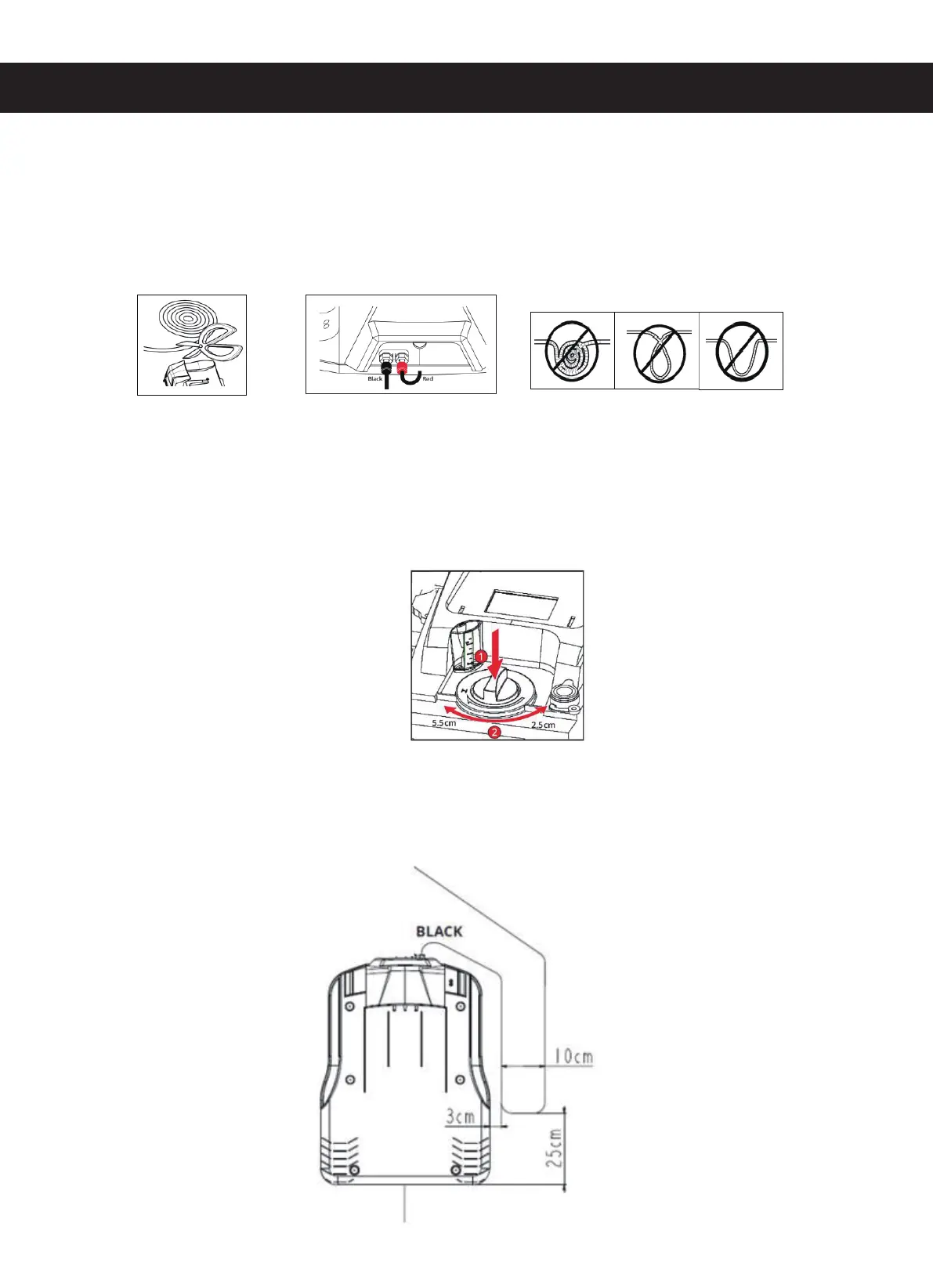

Fig. A Fig. B Fig. C
