20
9) Temporarily fasten the overlay panel to the door using 2 of the M4×25 pan head screws
provided. NOTICE! Ensure that the back surface of overlay panel is at before
attaching. See Fig. 18.
10) Mark the centerpoint of the hinge (C1) and hinge (C2) holes that extend over the
overlay panel. See Fig. 19.
11) Remove the overlay panel from the door.

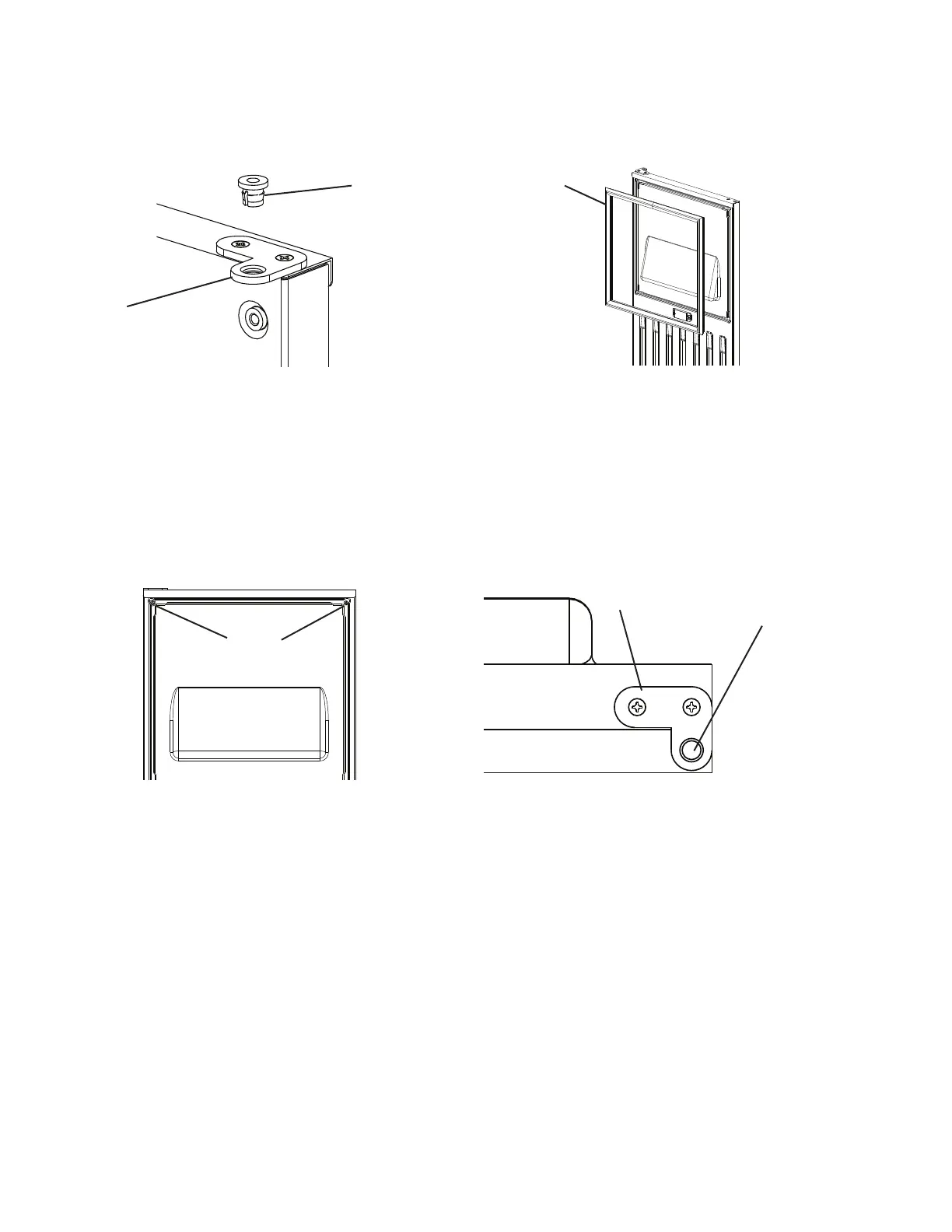

7) Remove the bushings from hinge (C1) and hinge (C2) (the hinges attached to the door).
See Fig. 16.
8) Remove the gasket from the door. See Fig. 17.
Gasket
Screws
Mark the center point.
Overlay Panel
Door
Hinge
Bushing
Fig. 16
Fig. 17
12) Drill 3/8" diameter holes 1/4" (7 mm) deep where you marked on the overlay panel to
accommodate the hinge (C1) and hinge (C2) bushings.
Fig. 18 Fig. 19
Hinge
To Next Page
