3. Remote Models (SRH/3)
NOTICE
• Allow 6" (15 cm) clearance at rear,
sides, and top for proper air circulation
and ease of maintenance and/or
service should they be required.
• The ice storage bin opening must
match the bottom opening as in the
illustration.

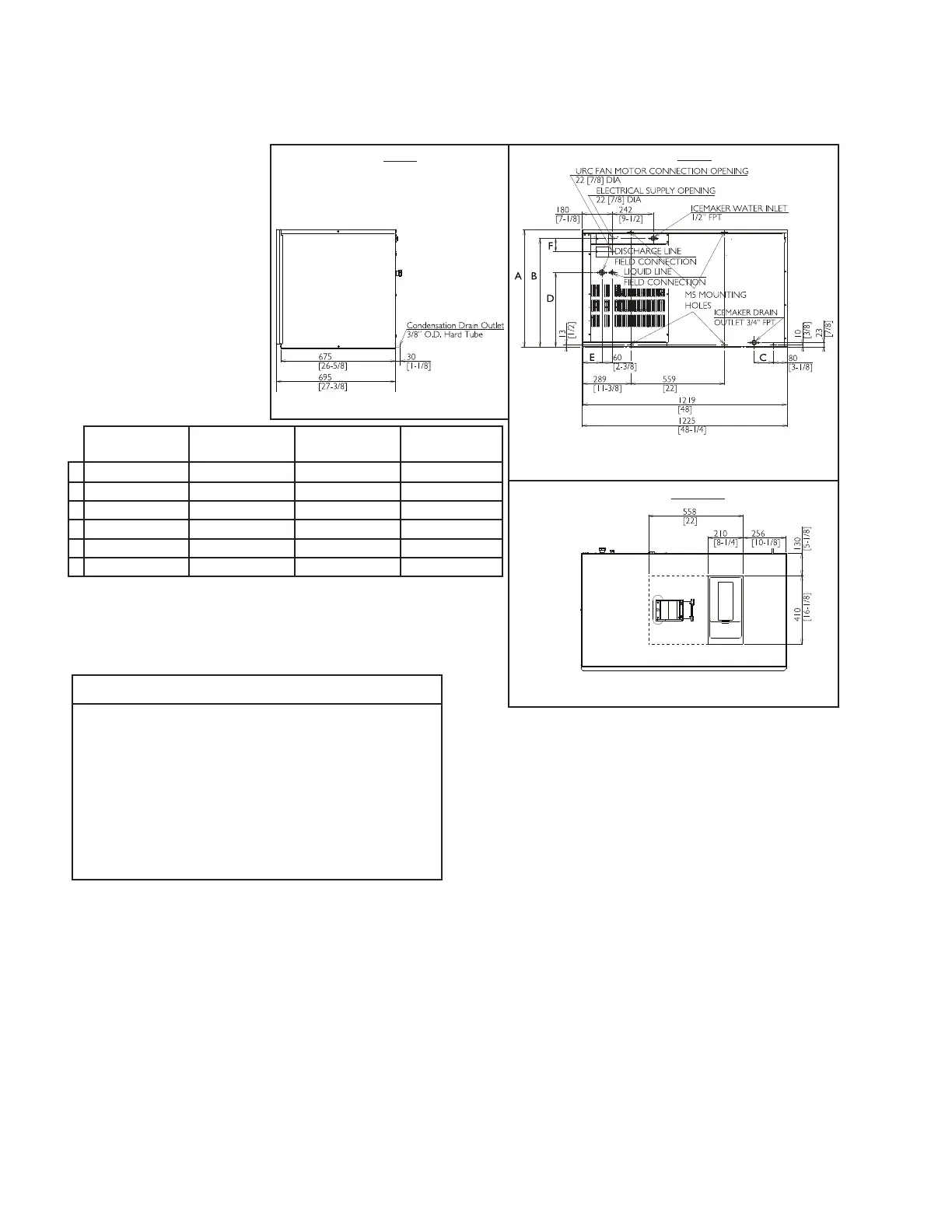

Rear
Side
Bottom
Model Shown: KM-1301SRH
Model Shown: KM-1301SRH
Model Shown: KM-1301SRH
Units: mm [in.]
KM-1301SRH/3 KM-1601SRH/3 KM-1900SRH/3
KM-2100SRH3
KM-2500SRH3
A 695 [27-3/8] 695 [27-3/8] 925 [36-3/8] 925 [36-3/8]
B 643 [25-3/8] 643 [25-3/8] 873 [34-3/8] 873 [34-3/8]
C 115 [4-1/2] 115 [4-1/2] 130 [5-1/8] 130 [5-1/8]
D 442 [17-3/8] 442 [17-3/8] 673 [26-1/2] 410 [16-1/8]
E 115 [4-1/2] 115 [4-1/2] 115 [4-1/2] 120 [4-3/4]
F 76 [3] 100 [3-7/8] 74 [2-7/8] 75 [3]
