23
8) Remove the bin control thermostat assembly from the shipping hook by lifting it up and
shifting it to the right.
9) Remove the thermostat bulb attachment (plastic) of the upper unit from the thermostat
extension bracket (stainless).
10) Carefully remove the thermostat bulb from the thermostat bulb attachment (plastic) of
the upper unit.
11) Carefully route the thermostat bulb and capillary tubing of the upper unit through the
bottom hole of the upper unit. Remove the bushing from the lower bin control thermostat
assembly. Route the bulb and tubing through the hole in the assembly and down into
the ice storage bin. Reattach the bushing.
12) Secure the lower bin control thermostat assembly into place with the thumbscrews.
13) Carefully insert the thermostat bulb of the upper unit back into the thermostat bulb
attachment (plastic).
14) Secure the thermostat bulb attachment (plastic) of the upper unit to the thermostat bulb
attachment (plastic) of the lower unit with the screws of the upper unit. See Fig. 11.
15) Insert the plug of the upper unit into the receptacle of the upper unit's bin control
thermostat assembly until it locks into place.
16) Replace the panels and baffle in their correct positions.

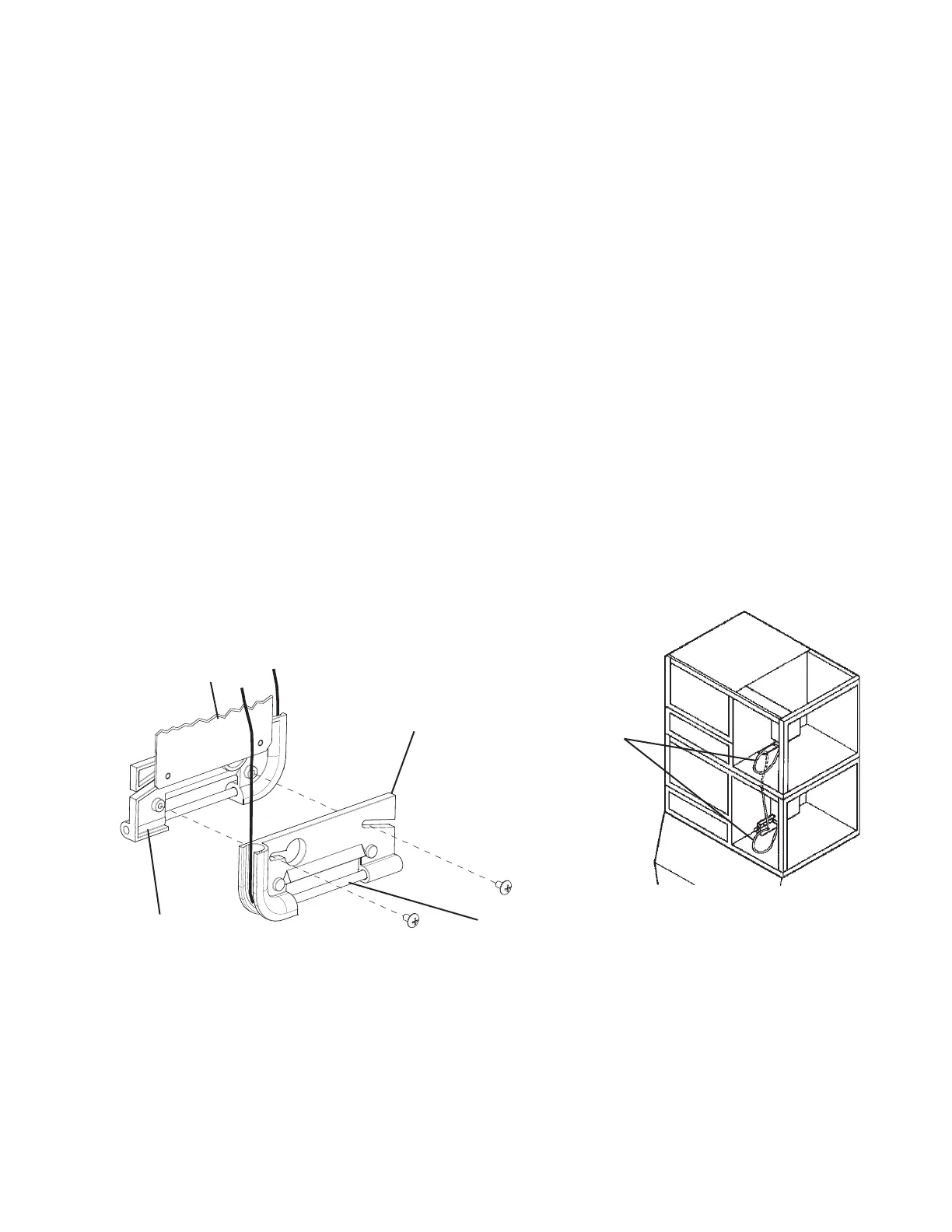

Thermostat
Capillary
Tubing
Thermostat Extension Bracket
(stainless) or "Z" Bracket (plastic)
Depending on Icemaker and Ice
Storage Bin Model
Thermostat Bulb Attachment
Removed from Upper Unit
Thermostat Bulb
Attachment of
Lower Unit
Thermostat Bulb
Fig. 11
