Hoshizaki KM-1301SWH/3 User Manual

25
KM-1301S_H
KM-1601S_H
KM-1900S_H
KM-1301S_H3
KM-1601S_H3
KM-1900S_H3
KM-2100S_H3
KM-2500S_H3
BROWN

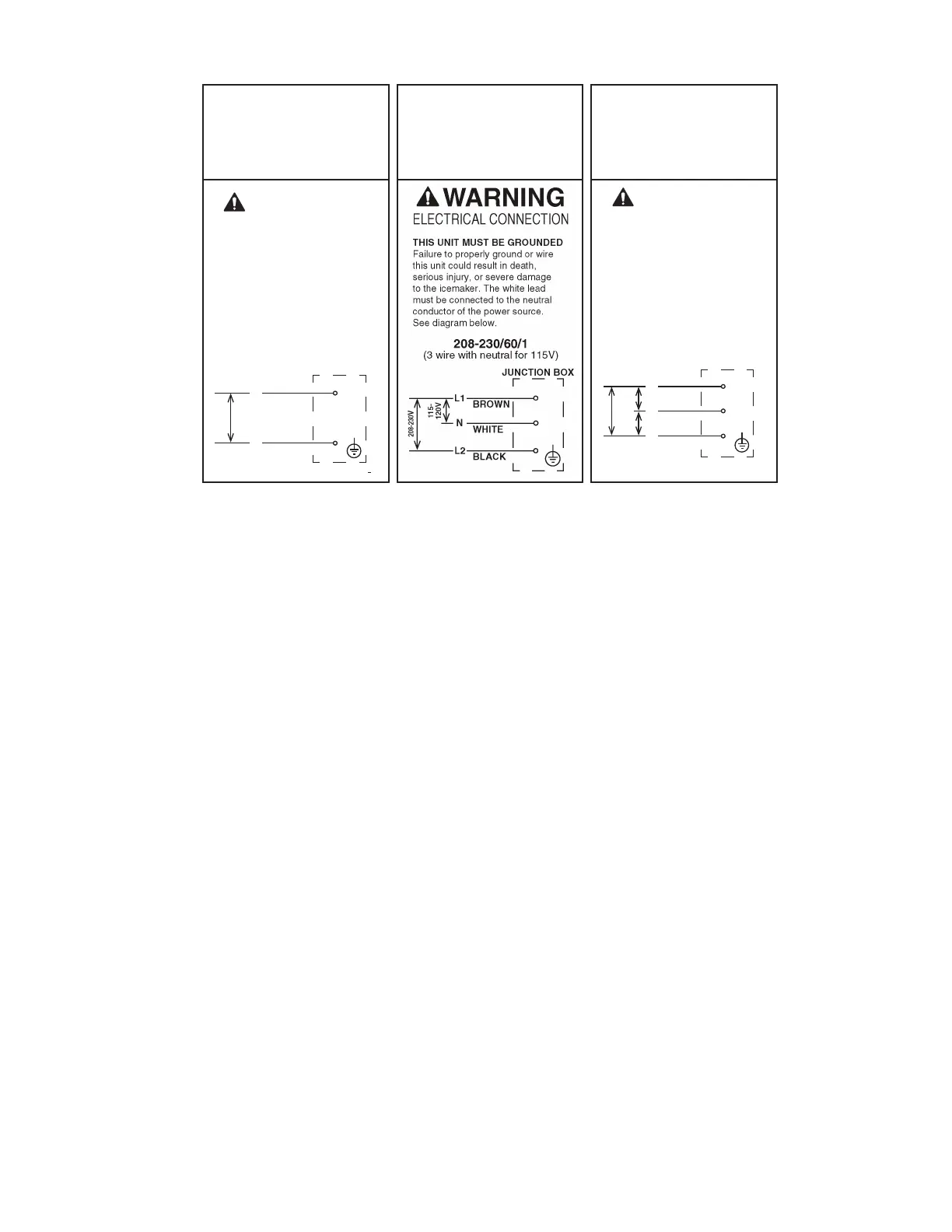

WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage to
the icemaker.
The transformer’s voltage tap switch
must be positioned to match incoming
voltage at startup.
See diagram below.
4A4741-011
208-230/60/1
JUNCTION BOX
208-230
V
BLACK
L1
L2
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage to
the icemaker.
This unit must be connected to a
three-phase power source.
The transformer’s voltage tap switch
must be positioned to match incoming
voltage at startup.
See diagram below.
208-230/60/3
4A4807-010
JUNCTION BOX
208-230
V
BROWN
BLACK
L1
L3
RED
L2
208-
230V
208-
230V
Fig. 12
