Hot Spot TEMP - Relay Dimensions

x Page 6 x
DOOR
DOOR
20.5”
(52.1cm)
DOOR
5.5” (14cm)
20.5”
(52.1cm)
29”
(74.0cm)
5.13”
(13.0cm)
1.5”
(3.8cm)
32.5”
(82.6cm)
36.0”
(91.4cm)
4.0”
(10.2cm)
80.25” (203.8cm)
83.5” (212.1cm)
83.5”
(212.1cm)
80.25”
(203.8cm)
Pre-Delivery Instructions Page 6
RELAY
TM

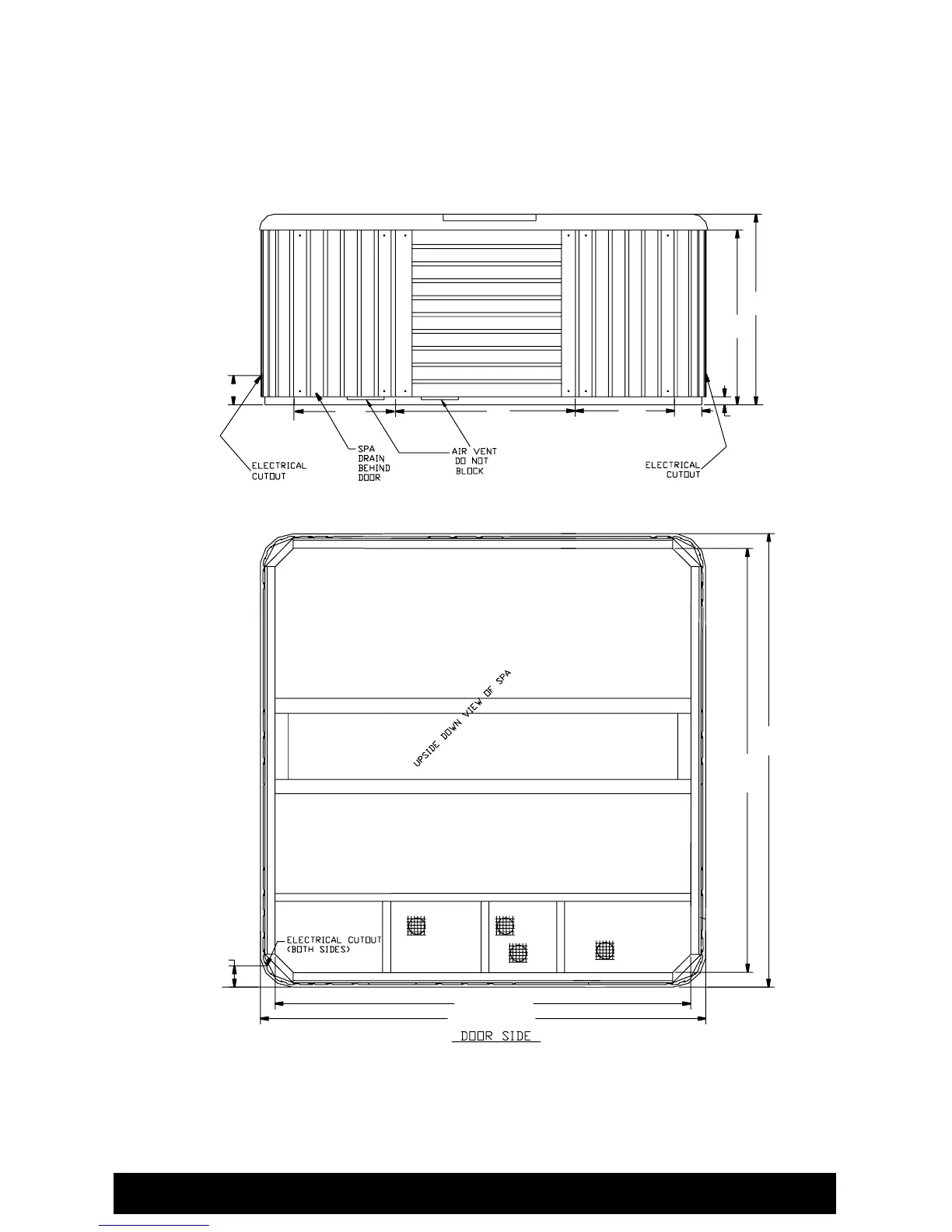

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
NOTE: Watkins Manufacturing Corporation recommends that the Relay be installed on a minimum 4” thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification
chart.
WARNING: THE RELAY MUST NOT BE SHIMMED IN ANY MANNER.
