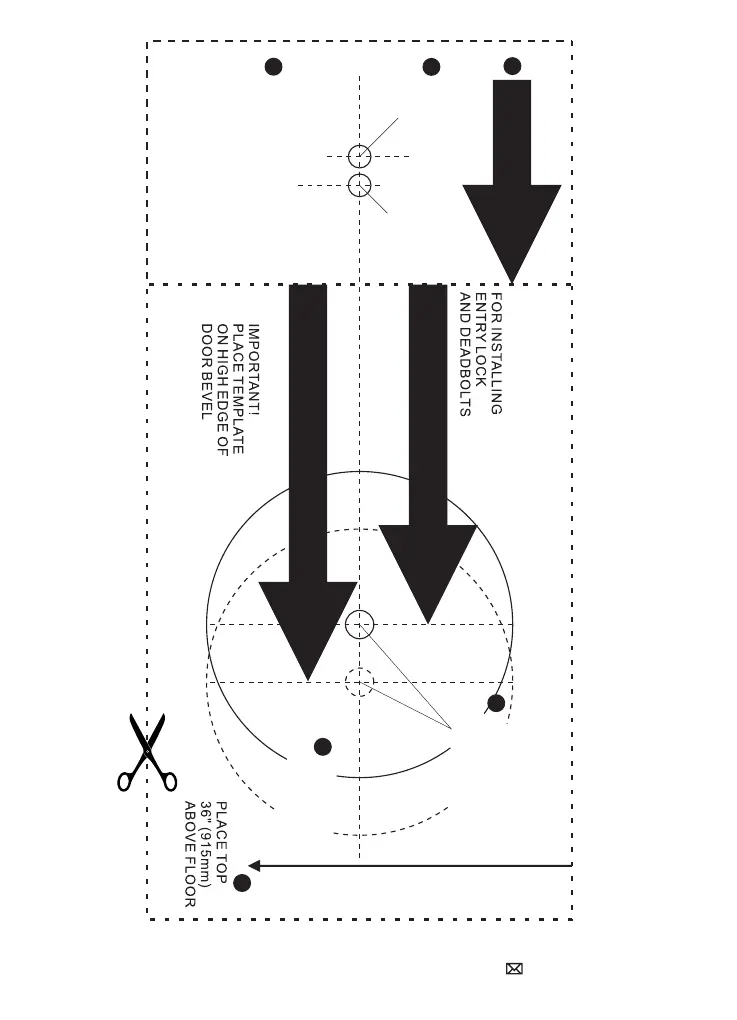

HOTATA 3106 - Template

FOLD HERE ON
DOOR EDGE
MARK CENTER
OF HOLE ON
DOOR FACE
DRILL
2-1/8"(54mm)
HOLE
MARK
FOR 1-3/4"
(45mm)
DOOR
THEN DRILL 1" (25mm) HOLE
IN CENTER DOOR OF EDGE
2" (50mm) IN DEPTH
MARK
FOR 1-3/8"
(35mm)
DOOR
1
3
4
6
5
TEMPLATE
TEMPLATE
2
