Install the interior assembly

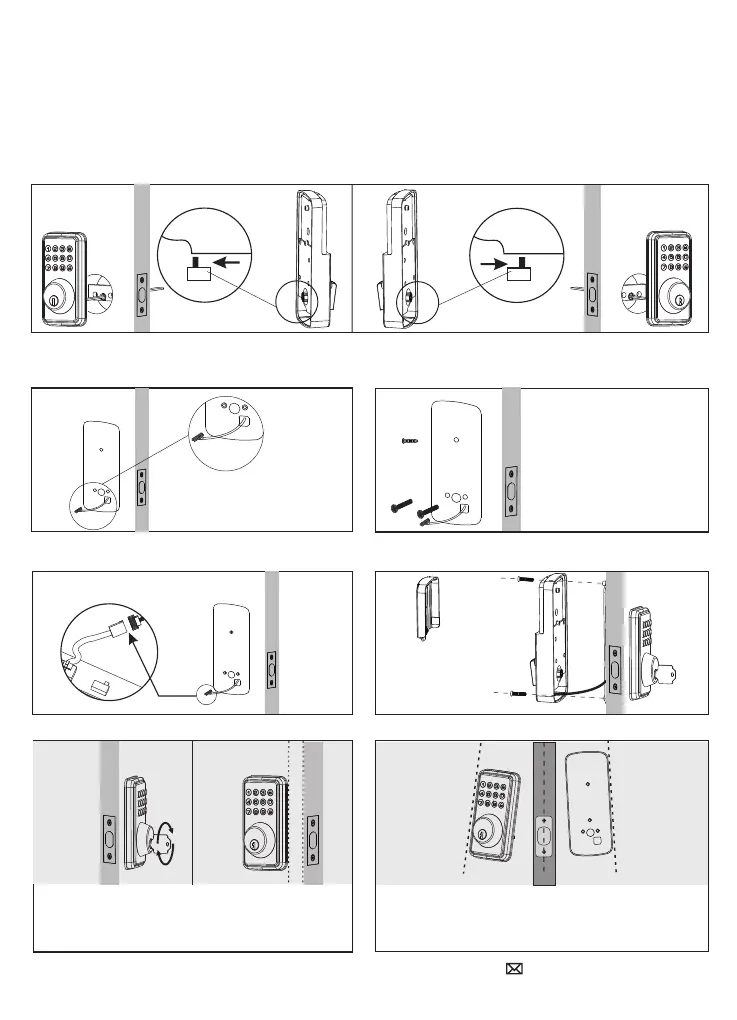

Installation Guide
1.Please confirm the door opening direction before installing.
Find the direction switch under the Interior Assembly, and change the direction as per
the instructions below
2.Route cable through the bottom of
mounting plate.
3.Tighten screws evenly.
Note:please support
e x t e r i o r a s s e m b l y
d u r i n g m o u n t i n g
plate installation
Insert key and test latch.if latch does not
extend or retract smoothly. please
adjust mounting plate screws.
If the keypad and mounting plate are deflection.
please loose mounting plate screws and adjust.
Switch to the left
Switch to the right
Left opening door
Right opening door
L
R
4.Ensure tight cable connection. 5.Tighten screws evenly.
YESYES NO NO
