Installation Instructions

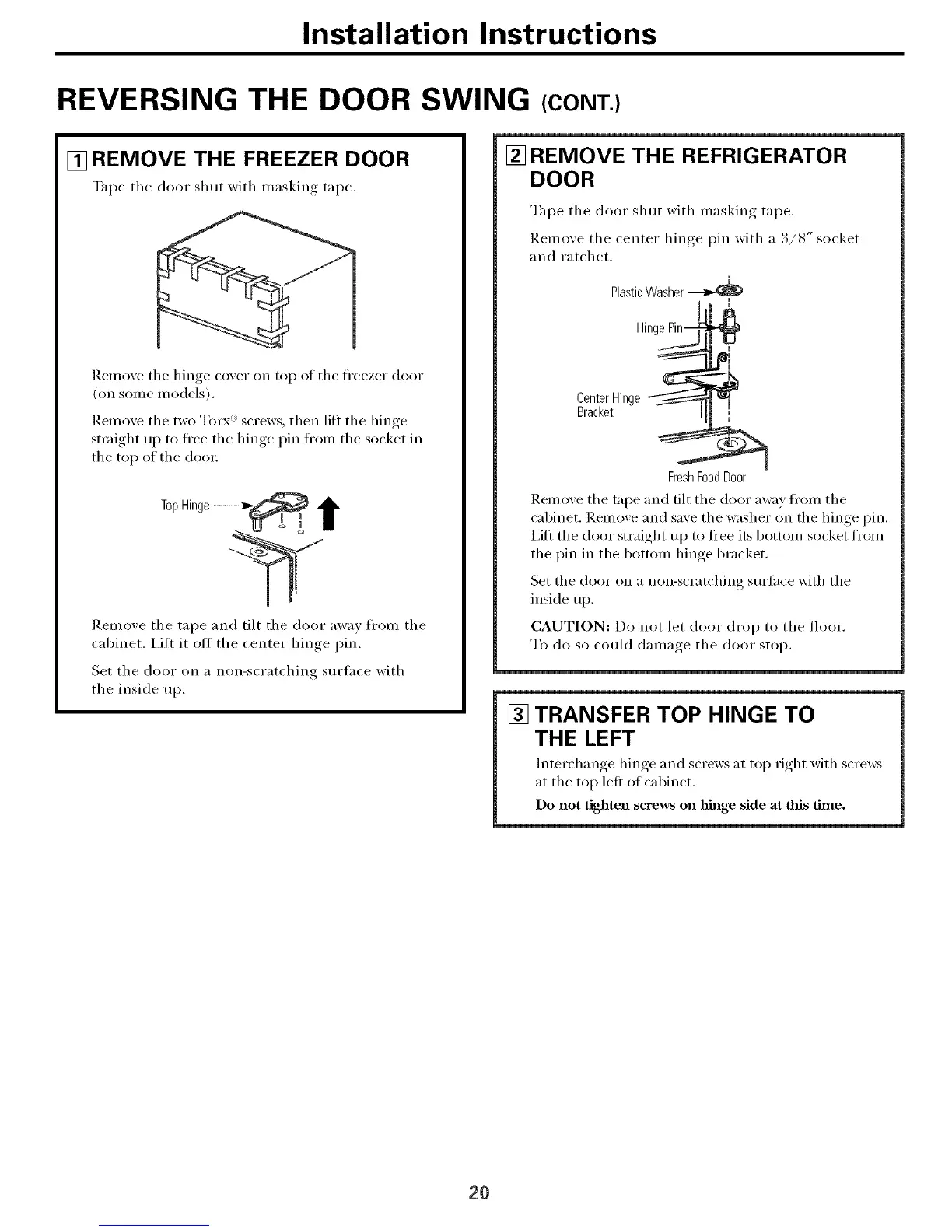

REVERSING THE DOOR SWING (CONT.)
[] REMOVE THE FREEZER DOOR
Tape the door shut with masking tape.
I(emove the hinge cover on top (ff the fl'eezer door
(on some models).
Remove the two Torx': screws, then 1N the hinge
straight up to flee the hinge pin fi'om the socket in
the top of the dora:
TopHinge _'_
Remove the tape and tilt the door away from the
cabinet. I,ifl it off the center hinge pin.
Set the door on a non-scratching surtace with
the inside up.
[] REMOVE THE REFRIGERATOR
DOOR
Tape the door shut with masking tape.
tr
Remoxe the center him,eo pin with a ./8 socket
and ratchet.
PlasticWasher
Hinge Pin-- 4
|
CenterHinge _
Bracket
|
FreshFoodDoor
Remove the tnpe and flit the door away fl'om the
cabinet. Remove and save the washer on the hinge pin.
i,ifl the door straight up to fl'ee its bottom socket fl'om
the pin in the bottom hinge bracket.
Set the door on a non-scratching sm'fi_ce with the
inside up.
CAUTION: Do not let door drop to the floor.
To do so could damage the door stop.
[] TRANSFER TOP HINGE TO
THE LEFT
Interchange, him,e_ and screws at toi _ fight, with screws
at the top left of cabinet.
Do not tighten screws on hinge side at this lime,
20
