Installation
Ventilation Slot required
here if cabinet does not
fit to ceiling -51mm x 457mm min. area
50mm
Air Gap
50mm
Air Gap
Ventilation Slot
required here if the
cabinet does fit to
the ceiling -
51mm x 457mm
min. area
Ventilation Slot
required here
51mm x 457mm
min. area

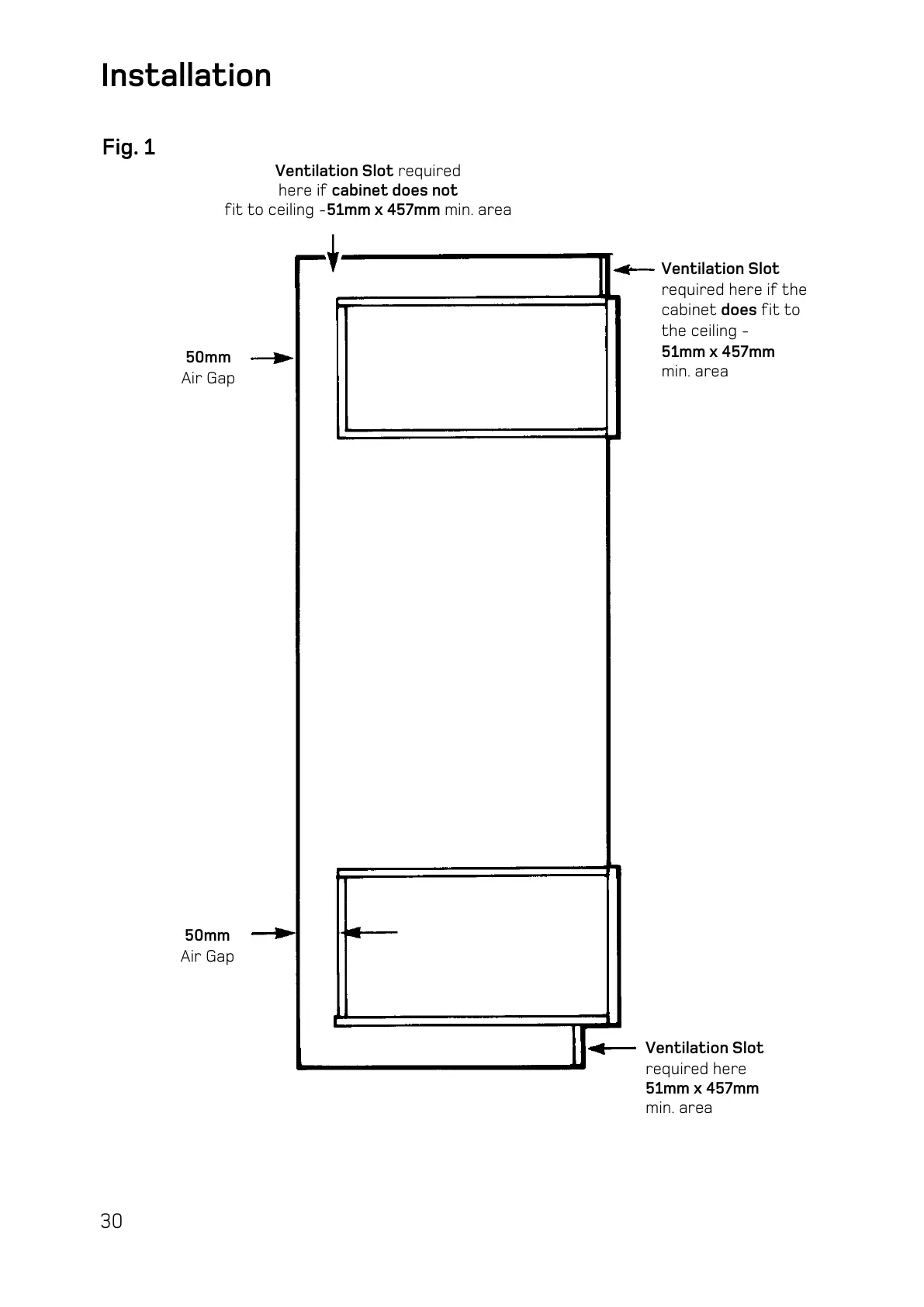

Fig. 1
