Hotpoint DE89X - Page 31

31

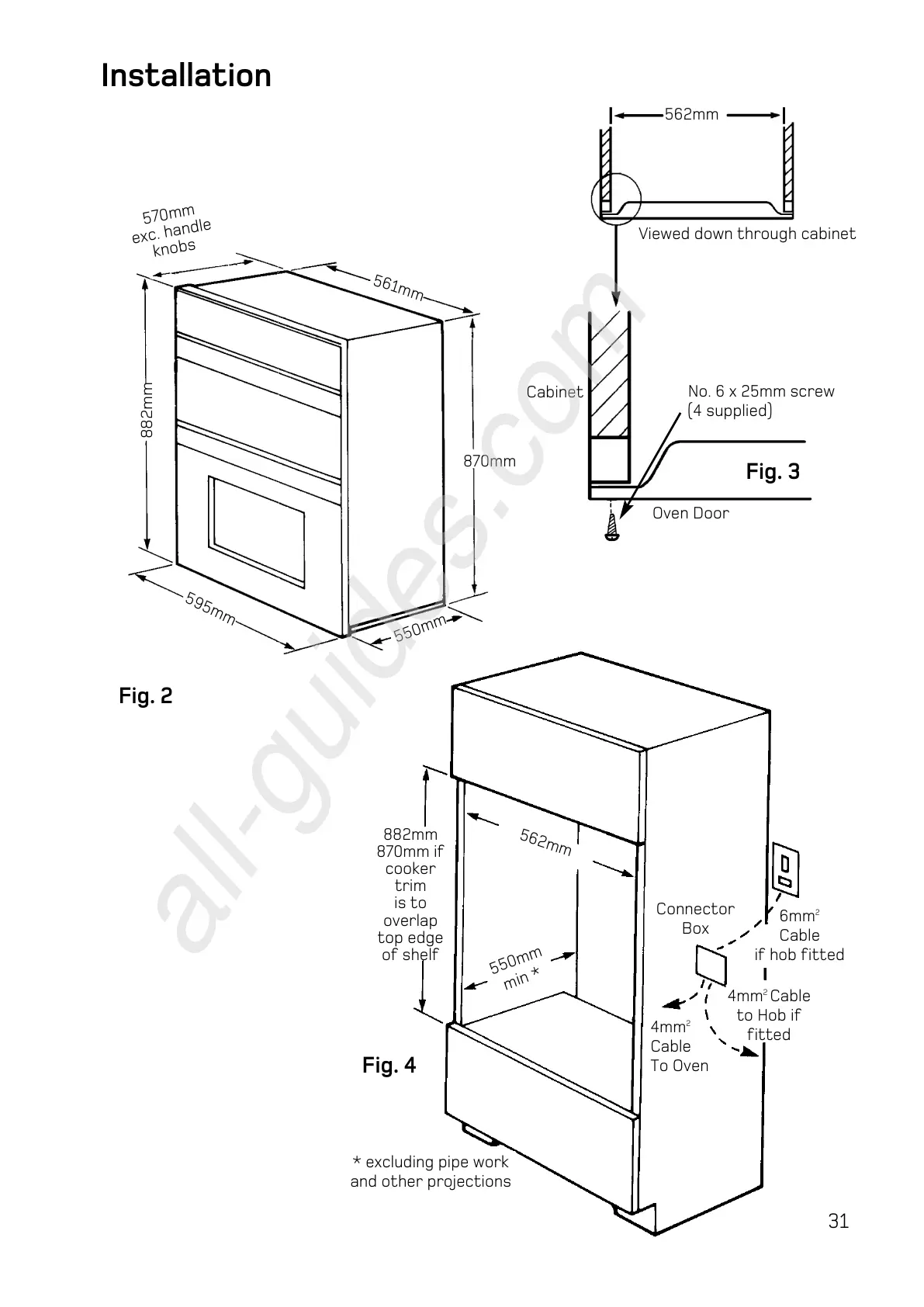

Installation
570mm
exc. handle
knobs
882mm
595mm
561mm
562mm
870mm
882mm
870mm if
cooker
trim
is to
overlap
top edge
of shelf
* excluding pipe work
and other projections
4mm
2
Cable
to Hob if
fitted
4mm
2
Cable
To Oven
6mm
2
Cable
if hob fitted
Connector
Box
Fig. 4
Fig. 2
550mm
550mm
min *
562mm
Viewed down through cabinet
No. 6 x 25mm screw
(4 supplied)
Oven Door
Fig. 3
Cabinet
