G: Defrost Thermostat and Thermal Fuse assembly
1. Remove the Rear Duct Assembly as in F above.
2. Unplug the Thermostat and Fuse connector block (containing 4 wires). These items are supplied
as a pair with the connector.
3. Note positions of the Thermostat and Fuse before cutting the cable ties which hold them in place.
4. When refitting, secure them in place securely with new cable ties.
H: Defrost Timer
1. This timer is mounted on a bracket at the rear of the appliance
next to the compressor.
2. Remove 2 screws to remove the timer from the bracket. Make
sure that the 2 clear rubber washer located between the timer
and bracket are refitted during reassmbly.
Do NOT overtighten the screws.
3. Cut 2 cable ties from the black plastic sleeve covering the
connector plug.
4. Unplug the timer from the harness.
5. When reconnecting, make sure that the plastic sleeve is fitted
covering the plug and socket and secured tightly with a cable
tie round each end to prevent moisture ingress.
.

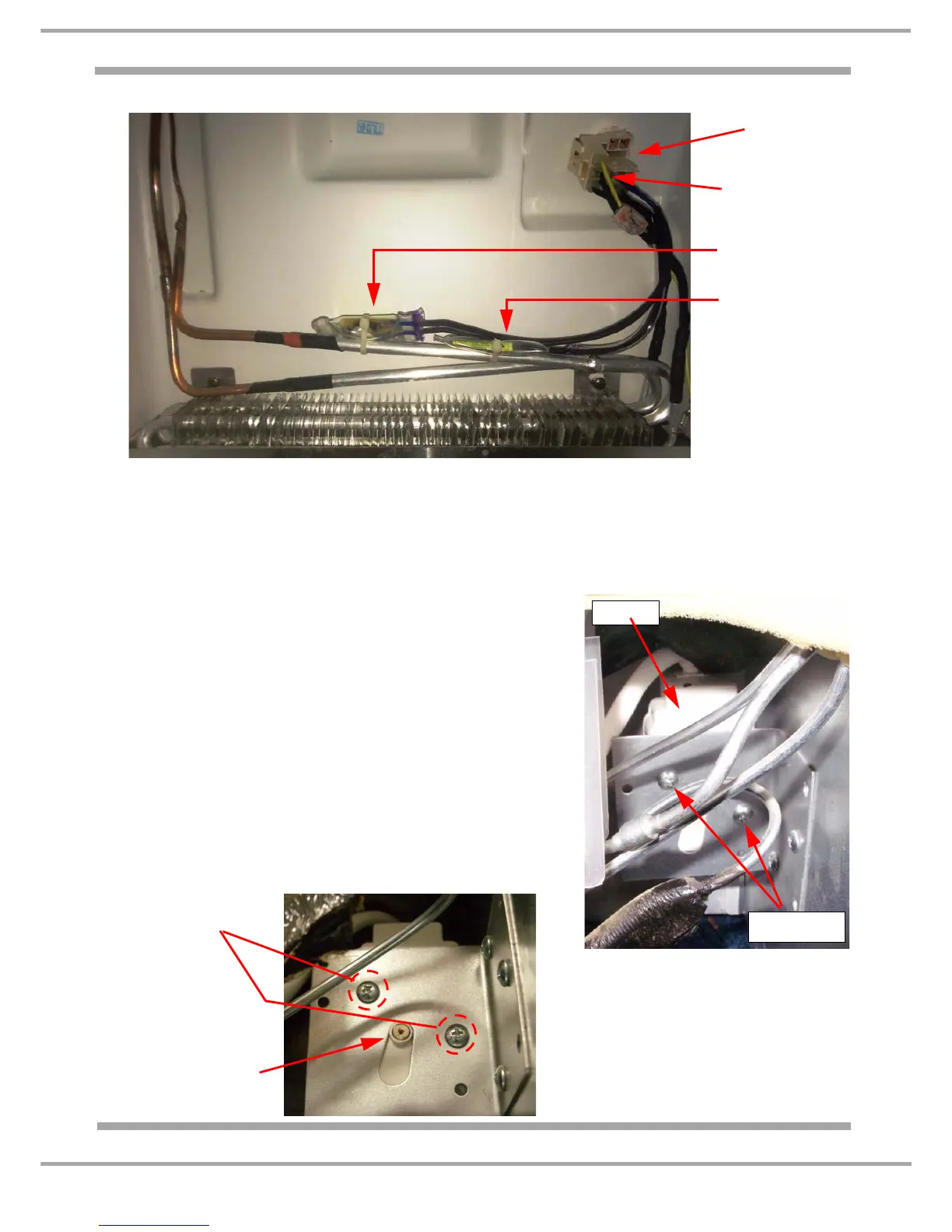

Connector
Block
Defrost
Thermostat
with cable tie
Thermal Fuse
4 Way block
with cable tie
Screws (2)
Timer
Timer shaft
screwdriver
slot
2 rubber washers
behind bracket
Manual Rotation of the Timer:
For fault finding purposes it is possible
to slowly rotate the timer shaft
clockwise with a flat bladed
screwdriver.
