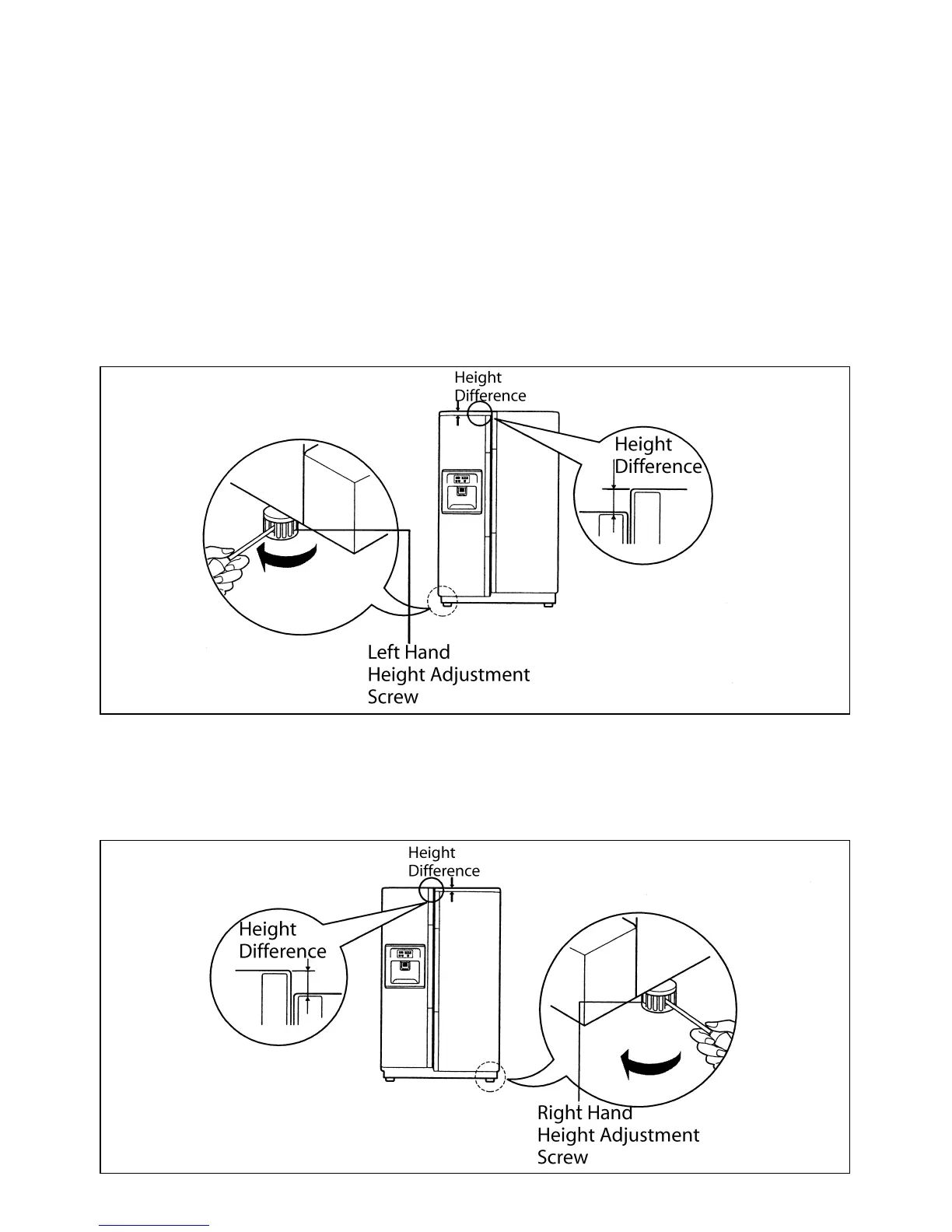

Height Adjustment:
Levelling both doors using the height
adjustment screws. With the doors level they
will close smoothly.
If the doors do not close correctly it will affect
the performance of your appliance.
* If the freezer compartment door is lower
than the fridge compartment door, adjust
the left hand adjustment screw (Fig.10).
Level the door by inserting a flat (- type)
driver into the groove of the left hand
adjustment screw and rotate it clockwise.
* If the freezer compartment door is higher
than the fridge compartment door, adjust
the right hand adjustment screw (Fig.11).
Level the door by inserting a flat (- type)
driver into the groove of the right hand
adjustment screw and rotate it clockwise.
Installation
10
Fig.10
Fig.11
