Hotpoint HE61 - Recirculation Version Air Outlet; Ducted Version Air Exhaust System; Mounting the Hood Body

7GB
Connections

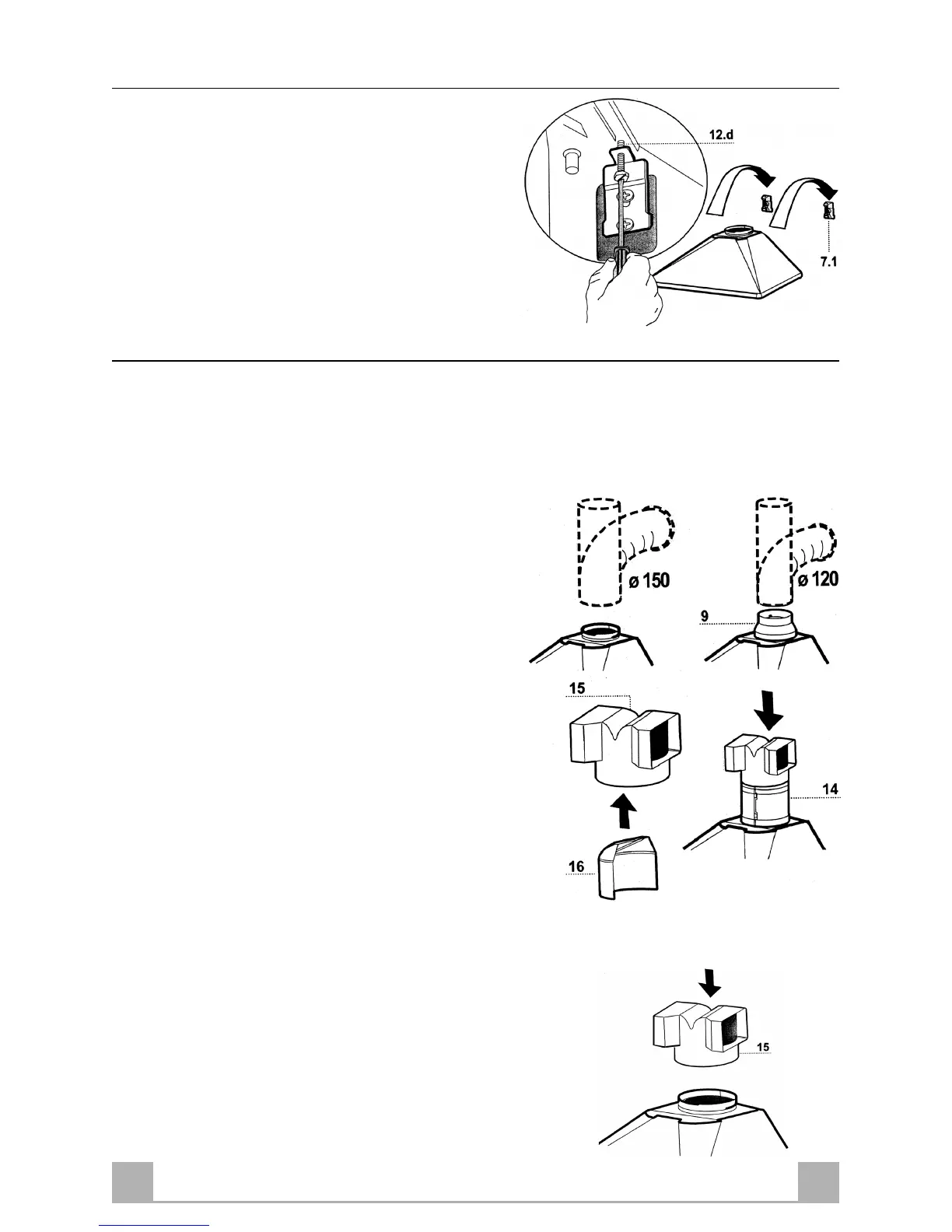

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney using either a flexible or rigid
pipe ø 150 or 120 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection,
insert the reducer flange 9 on the hood body
outlet.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
Side air exhaust on ducted version (connection
to exhaust flue above wall cupboards).
• Assemble the half-shells of the hood body
extension piece 14.
• Push fit the assembled hood body extension 14
onto the air exhaust outlet.
• Insert the deflector 16 into the air exhaust fitting
15 to close off the unused outlet.
• Push fit connection piece 15 to the hood body
extension piece 14, ensuring that the free end
matches up with the required opening in the
chimney.
• Remove any activated charcoal filters.
RECIRCULATION VERSION AIR OUTLET
• Push fit the air outlet fitting 15 onto the air
outlet of the hood body.
• The air outlet directional grills must be fitter
after the lower outlet duct has been installed.
• Ensure that the activated charcoal filters have
been inserted.
Mounting the hood body
• Screw the two screws 12d supplied onto the
brackets 7.1
• Hook the hood body onto bracket 7.1, centring
it around the vertical line.
• Using the adjusting screws 12d underneath the
hood to level the hood body.
