Installation Instructions

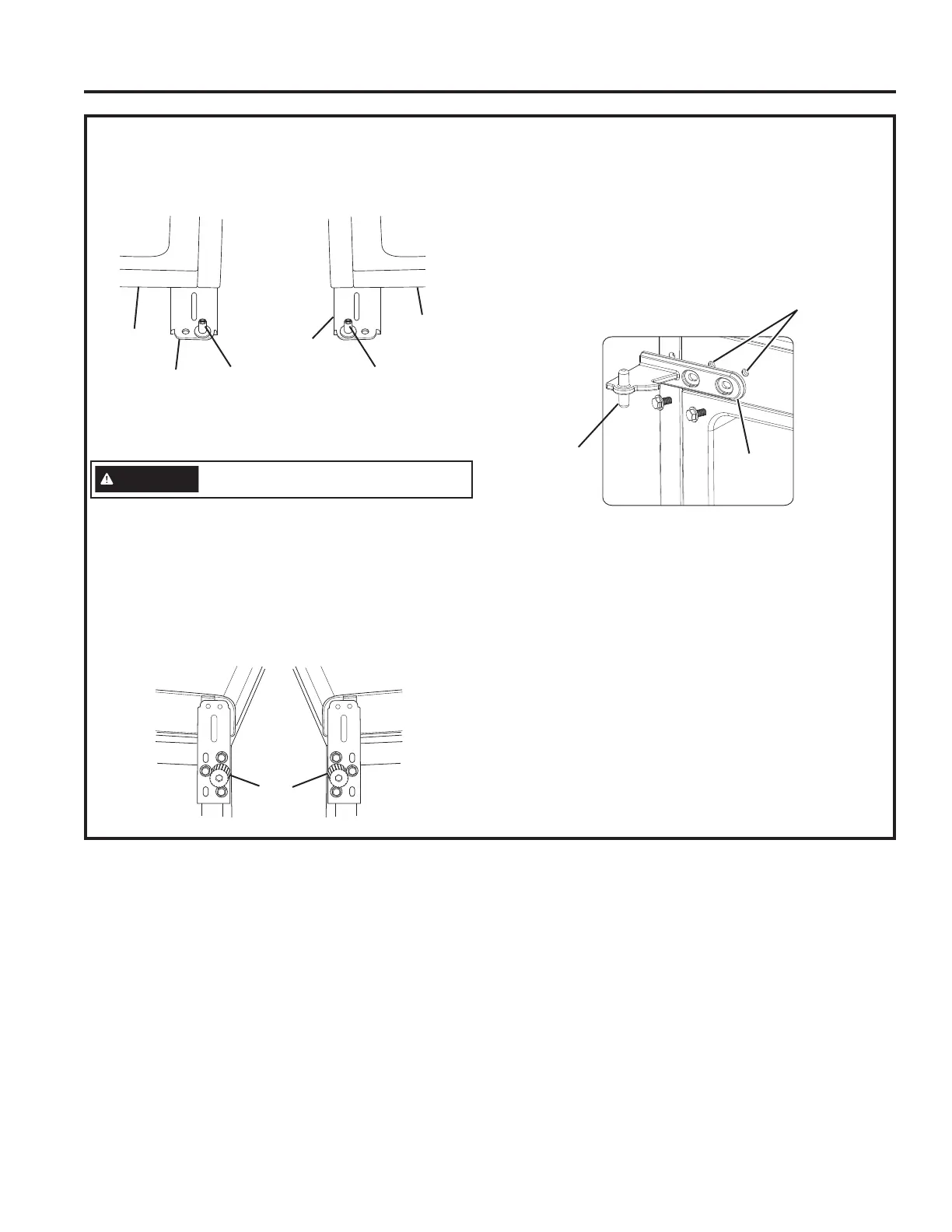

REINSTALLATION
1. Remove the lower hinge pin from the lower hinge
by turning counter clockwise. Move the pin to the
opposite hole and tighten.
2. Tilt refrigerator on a 45-degree angle to have access
to the bottom front.
3. Remove both left and right front feet from bottom.
4. Loosen the screws holding the bottom hinge and
remove it.
5. Align the holes in the bottom hinge to the
corresponding holes on the opposite side of the
cabinet. Insert and tighten the screws. Reinstall both
front feet.
6. To install refrigerator door: Line up the left bottom
hole of the refrigerator compartment door over
the bottom hinge pin. Move door forward to make
it straight and align with middle hinge. Install the
middle hinge again, and turn the hinge pin until it
completely enters the door body. Secure it with the
screws provided.
NOTE: Remove plugs from door frame and install on
other side.
7. To install freezer door: Line up left bottom hole of the
door over the middle hinge middle pin. Move door
forward to make it straight and align with freezer
compartment. Place the hinge cover over the left
side of the top hinge, align holes with hole on the
refrigerator top and tighten with the screws provided.
Insert the top hinge plug into the holes on the
cabinet top from which you previously removed the 3
hinge screws
INSTALLATION INSTRUCTIONS
CAUTION
Two People Required
Bottom
of Unit
Bottom
of Unit
Bottom
Hinge
Bottom
Hinge
Lower
Hinge
Pin
Lower
Hinge
Pin
Front
Feet
Screw
Holes
Middle
Hinge Pin
Middle
Hinge
