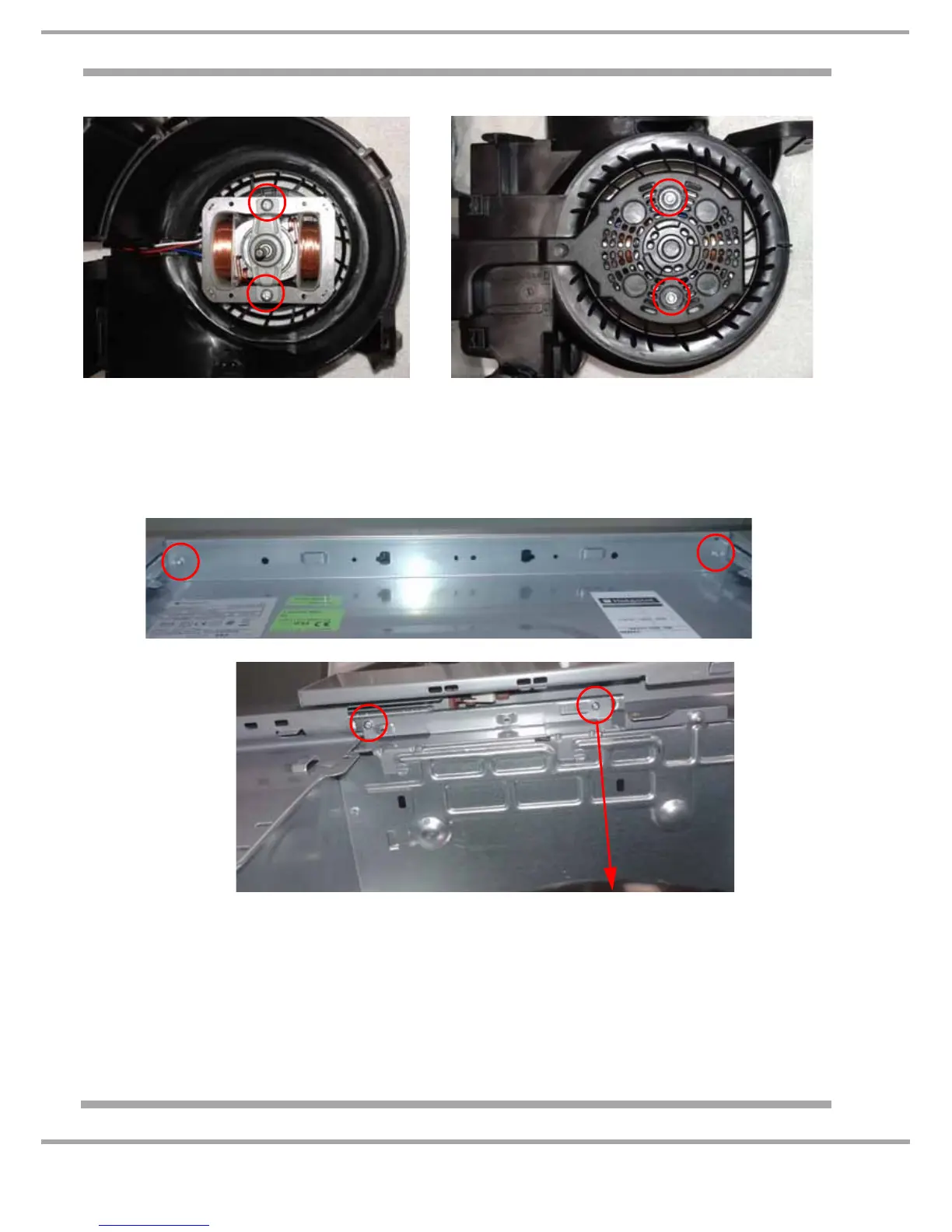

l) Unscrew the fan motor fixing nuts (7mm).
m) Replace the faulty component and reassemble in reverse order.
4. Slider Replacement
a) Invert the hood and place upon a protected surface.
b) Remove the grease filter and carbon filters (if fitted).
c) If required, the front panel (with logo) can be replaced by unscrewing the 2 securing screws.
d) Remove the 4 screws (T10, 2 each side) securing the slider assembly.
e) Reassemble in reverse order. It may be easier to first replace the 2 end screws with the slider
closed, this may aid balancing the assembly. Continue then with the other 2.
