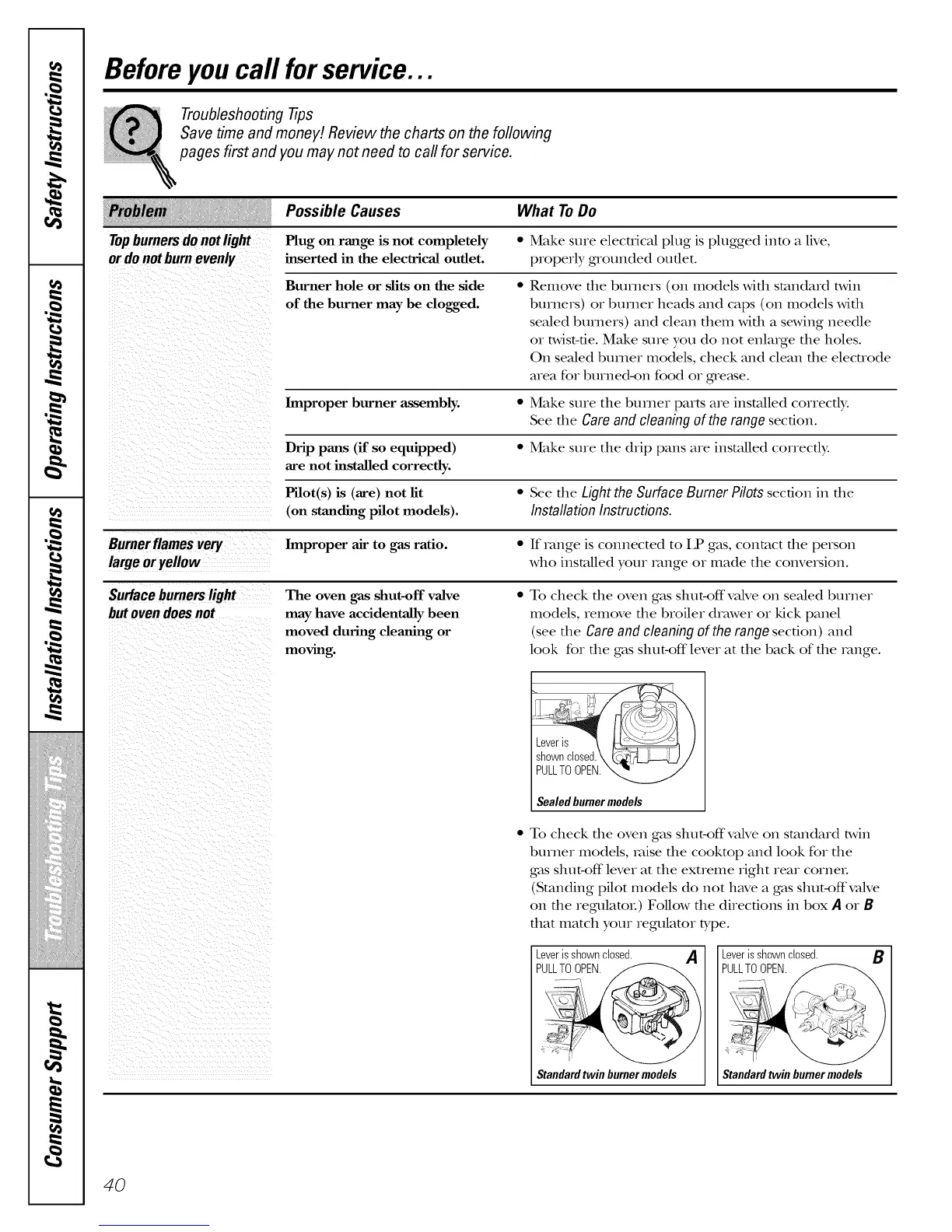

Beforeyoucall forservice...
Troubleshooting tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Possible Causes What ToDo
Topburners donot light Plug on range is not completely • Make sure electrical ph,g is plugged into a live,
inserted in the electrical outlet, properly g_ounded outlet.
Burner hole or slits on the side • Remove the burners (on models with standard tadn
of the burner may be clogged, burners) or burner heads and caps (on models with
sealed burners) and clean them wkh a serving needle
or tadst-tie. Make sure you do not enlarge the holes.
On sealed burner models, check and clean the elecuode
area for burned-on food or gre_tse.
7_ L
7_
Improper burner assembly. • Make sure the burner parts are installed correctly.
See the Care and cleaning of the range section.
Drip pans (if so equipped) • Make sure the drip pans are installed correctly.
are not installed correctly.
Pilot(s) is (are) not lit • See the Light the Surface Burner Pilots section in the
(on standing pilot models). Installation Instructions.
Burner flames very Improper air to gas ratio. • If range is connected to LP gas, contact the person
large oryellow who installed your range or made the conversion.
Surfaceburnerslight The oven gas shut-off valve • To check the oven gas shut-off valve on sealed burner
but oven does not may have accidentally been models, remove the broiler drawer or kick panel
moved during cleaning or (see the Care and cleaning of the range section) and
moving, look for the gas shut-off lever at the back of the range.
sho___ /
PULLTOOPEN
Sealedburnermodels
• To check fl_e oven gas shut-offvalve on standard twin
burner models, raise the cookmp and look for the
gas shut-off lever at the extreme right rear cornel
(Standing pilot models do not have a gas shut-off x_dve
on the regulamL) Follow the directions in box A or B
that match your regulator type.
Leveris shown closed. A
PULLT0OPEN._-
Z_gL_,
Standardtwin burnermodels Standard twin burner models
