remove the power cord, open the equipment compartment and locate the cord. Carefully pull the cord out of the
equipment compartment to the desired length.
NOTE: Canadian regulations prevent SX or TX spas to come with a power cord. and are require to be wired directly
to the power source. Use Canadian Electrical Codes for electrical installation.

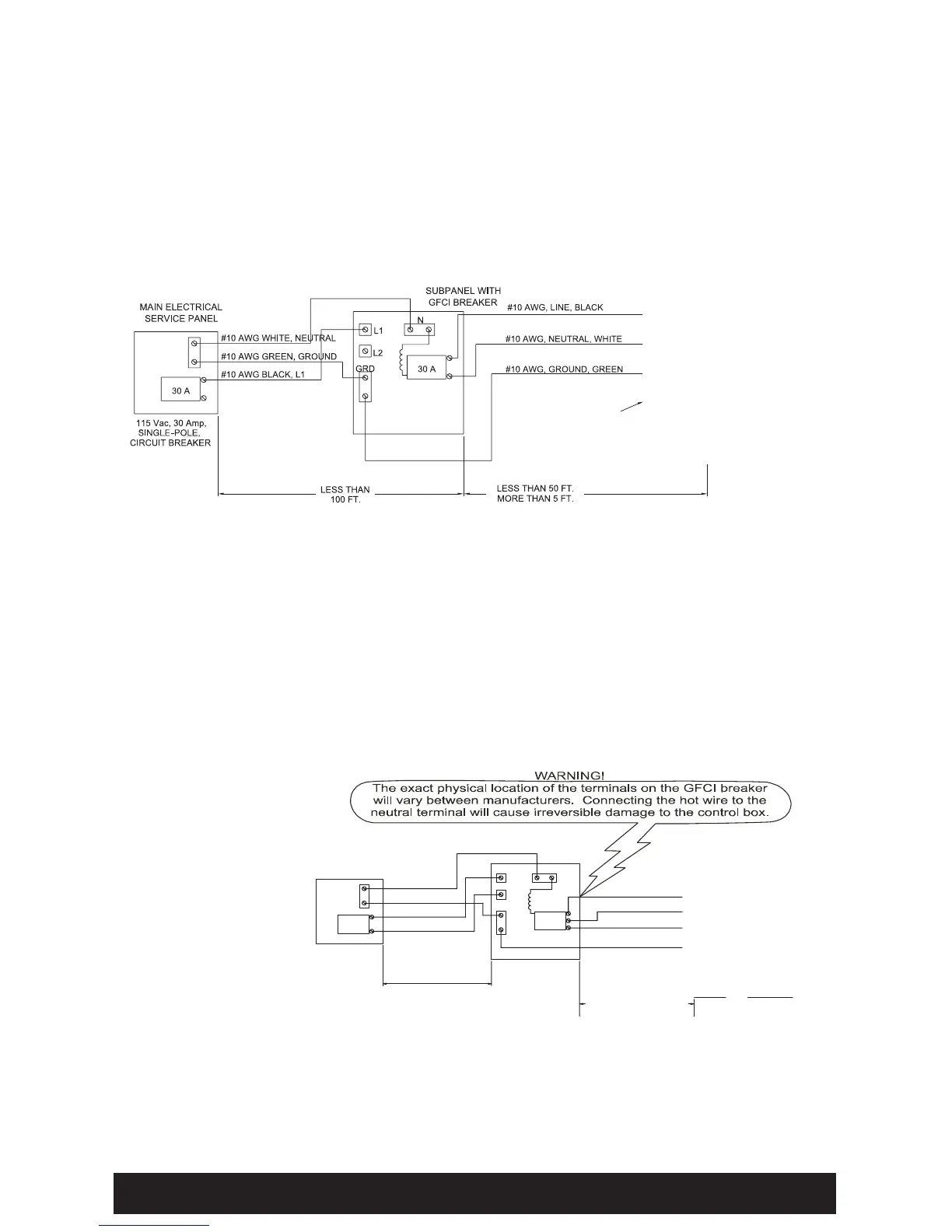

115 VOLT 30 AMP CONVERSION (SX & TX SPA MODELS)
To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required
electrical service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY.
IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
230 VOLT INSTALLATION (TEMPO
®
, RELAY
®
& RHYTHM
®
AND
OPTIONAL FOR SX & TX CONVERTED SPA MODELS )
Yourspacontainsacontrolboxdesignedtooperateat230V,60Hz.Installationofa50amp.dedicatedcircuitis
required for Tempo, Relay & Rhythm spas and optional for SX & TX spas. The control box must be hard wired
directly to a subpanel protected by a Ground Fault Circuit Interrupter (GFCI). The subpanel containing GFCI
breakers is included with the Tempo, Relay & Rhythm spa models only. Purchase the subpanel from you dealer for
SXandTXmodelswhenconvertingto230volts.
IMPORTANT NOTE: All
electrical connections
to the control box must
be accomplished by a
qualified electrician in
accordance with the
National Electrical Code
and in accordance with
any local electrical codes
in effect at the time and
place of installation.
All electrical connections
must be made in
accordance with the
wiring information
contained in this manual
and on the back of the
field wiring access panel of the control box. A licensed electrician should install a four-wire electrical service (two line
voltages, one neutral, one ground) from the main electrical service panel to the subpanel.
Your electrician should mount the subpanel in the vicinity of the spa but it should not be closer than five (5) feet from
the spa water edge (NEC 680-38 to 41-A-3).
Pre-Delivery Instructions Page 10
VERIFY FACTORY JUMPER
REMAINS BETWEEN “N” & “L2”
*
*
See
Owner’s Manual
for Spa Wiring
and Jumper
Configuration
CONTROL BOX
PANEL
ELECTRICAL
MAIN SERVICE
LESS THAN 100 FT.
#8 AWG RED, L2
#8 AWG BLACK, L1
#8 AWG GREEN, GROUND
#8 AWG WHITE, NEUTRAL
50A
WITHIN SIGHT OF THE SPA
THE SUB-PANEL MUST BE
MORE THAN 5 FEET
DO NOT EXCEED 50 FEET
WITH GFCI
BREAKERS
50A
SUB-PANEL
L2
GRD
L2, HOT, #8 AWG RED
L1, HOT, #8 AWG BLACK
GROUND, #8 AWG GREEN*
N, NEUTRAL, #8 AWG WHITE
L1L2
N
PERMANENTLY CONNECTED
230 VAC, 50A, 60Hz, MODELS
230VAC, 50 Amp
2-POLE
CIRCUIT BREAKER
(NON GFCI)
N
L1
GND
ILLUSTRATION
SEE WIRING
230 VAC PERMANENTLY CONNECTED SPA
L1L2
N
CONVERTED 230VAC SPA MODELS
JUMPERS REQUIRED
NO POWER
JP1
JP2 JP6
JP3 JP4
JP5
JP8 JP7
See
Owner’s Manual
for Spa Wiring
and Jumper
Configuration
