TEMPO
®
(Model TEM)

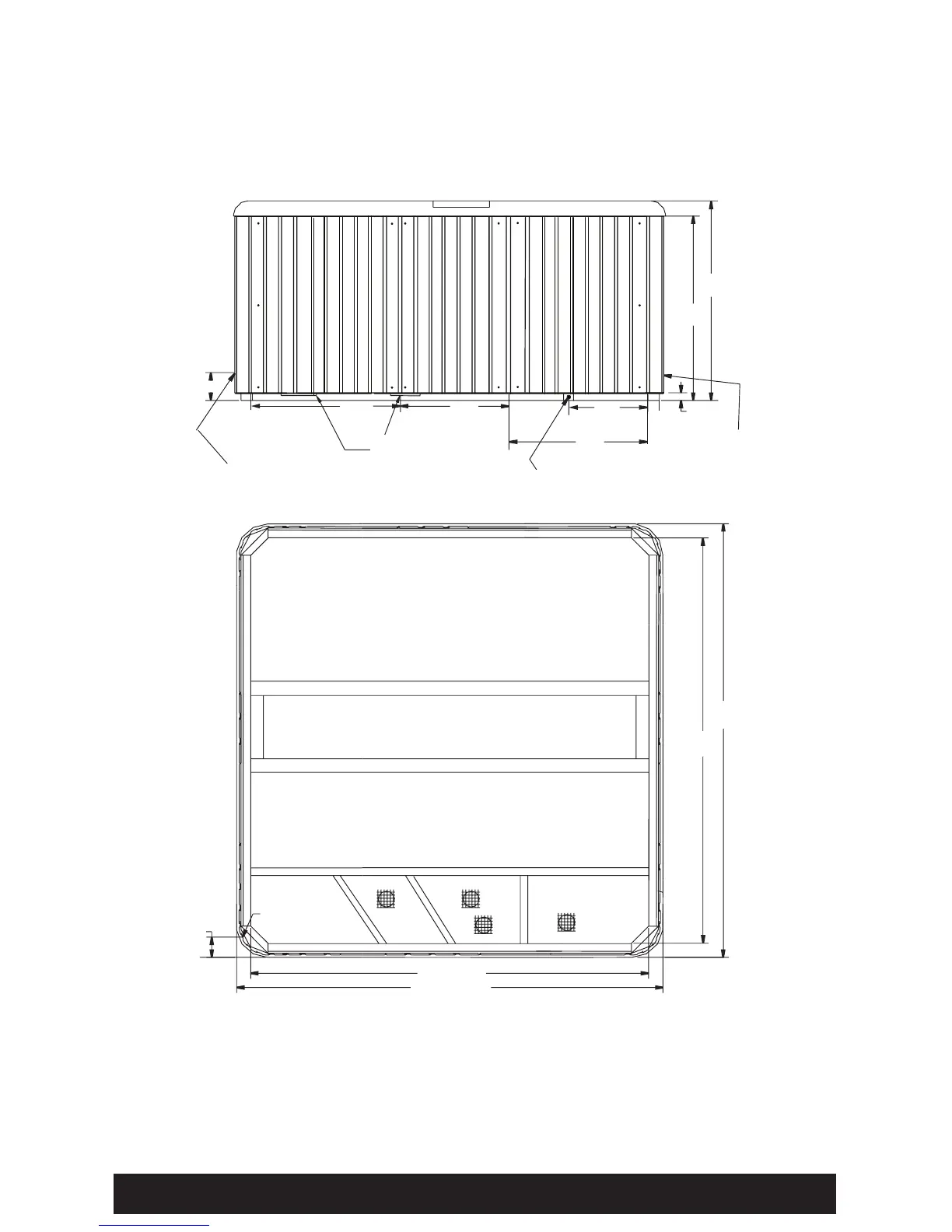

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
NOTE:WatkinsManufacturingCorporationrecommendsthattheTempobeinstalledonaminimum4”(10.2cm)
thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa
specification chart.
IMPORTANT: THE TEMPO MUST NOT BE SHIMMED IN ANY MANNER.
84.25” (214.0cm)
88.75” (225.4cm)
88.75”
(225.4cm)
84.25”
(214.0cm)
4.0” (10.2cm)
38.0”
(96.5cm)
35.0”
(88.9cm)
27.25”
(69.2cm)
27.25”
(69.2cm)
20.5”
(52.1cm)
2.5” (6.4cm)
6.5” (16.5cm)
5”
(12.7cm)
18”
(45.7cm)
(Front view)
(Bottom view)
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
DOORDOOR
DRAIN
AIR VENT
DO NOT
BLOCK
