Hotspot RELAY User Manual

x Page 6 x
6.5” (16.5cm)
5.13”
(13cm)
2.5”
(6.4cm)
32.5”
(82.6cm)
36.0”
(91.4cm)
4.0”
(10.2cm)
80.25” (203.8cm)
83.5” (212.1cm)
83.5”
(212.1cm)
80.25”
(203.8cm)
SPA DRAIN - RHYTHM
23.25”
(59.1cm)
SPA DRAIN - RELAY
AIR VENT DO NOT BLOCK
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
56.25” (143 cm)
Pre-Delivery Instructions Page 6
RELAY
®
/ RHYTHM
®
(Model REL/RHY)

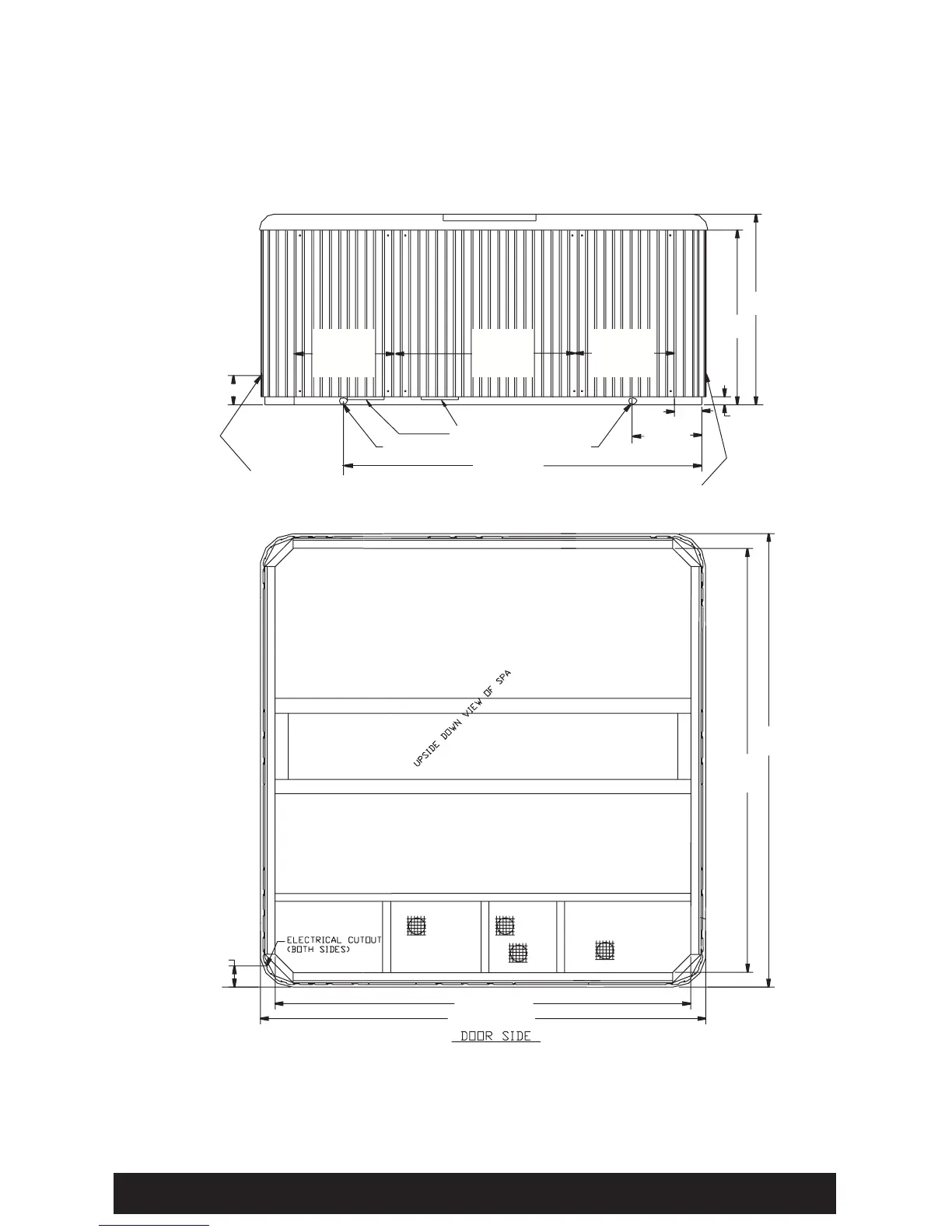

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
NOTE: Watkins Manufacturing Corporation recommends that the Relay & Rhythm be installed on a minimum 4”
(10.2cm)thickreinforcedconcretepadorstructurallysounddeckabletosupportthe“deadweight”foundinthespa
specification chart.
IMPORTANT: THE RELAY & RHYTHM MUST NOT BE SHIMMED IN ANY MANNER.
DOOR
20.5"
(52.1cm)
DOOR
20.5"
(52.1cm)
DOOR
29"
(74 cm)
