Hotspot RELAY User Manual

Page 7 Pre-Delivery Instructions
SX (Model SX)

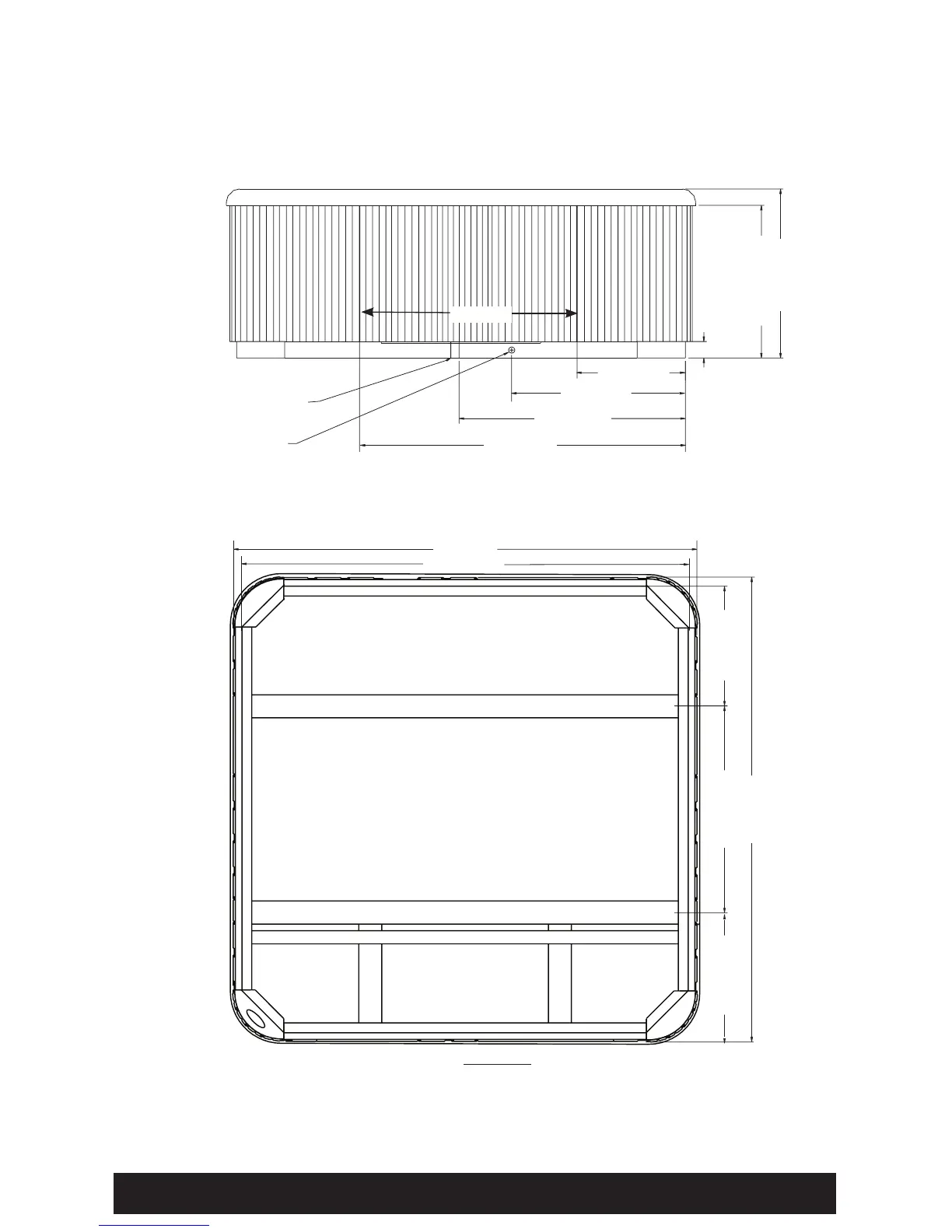

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
41.5" (105.4 cm)
3.5" (8.9 cm)
29" (73.7 cm)
33" (83.8 cm)
68.25" (173.4 cm)
71" (180.3 cm)
31.25" (79.4 cm)
18.5" (47 cm) 18.5 " (46.4 cm)
71" (180.3 cm)
SX 10
16" (40.6 cm)
29" (73.7 cm)
53.25" (135.2 cm)
ELECTRICAL
CUTOUT
DRAIN
DOOR SIDE
DOOR
(Front view)
(Bottom view)
NOTE:WatkinsManufacturingCorporationrecommendsthattheSXbeinstalledonaminimum4”(10.2cm)thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification
chart.
IMPORTANT: THE SX MUST NOT BE SHIMMED IN ANY MANNER.
