Hotspot RELAY User Manual

Pre-Delivery Instructions Page 8
TX (Model TX)

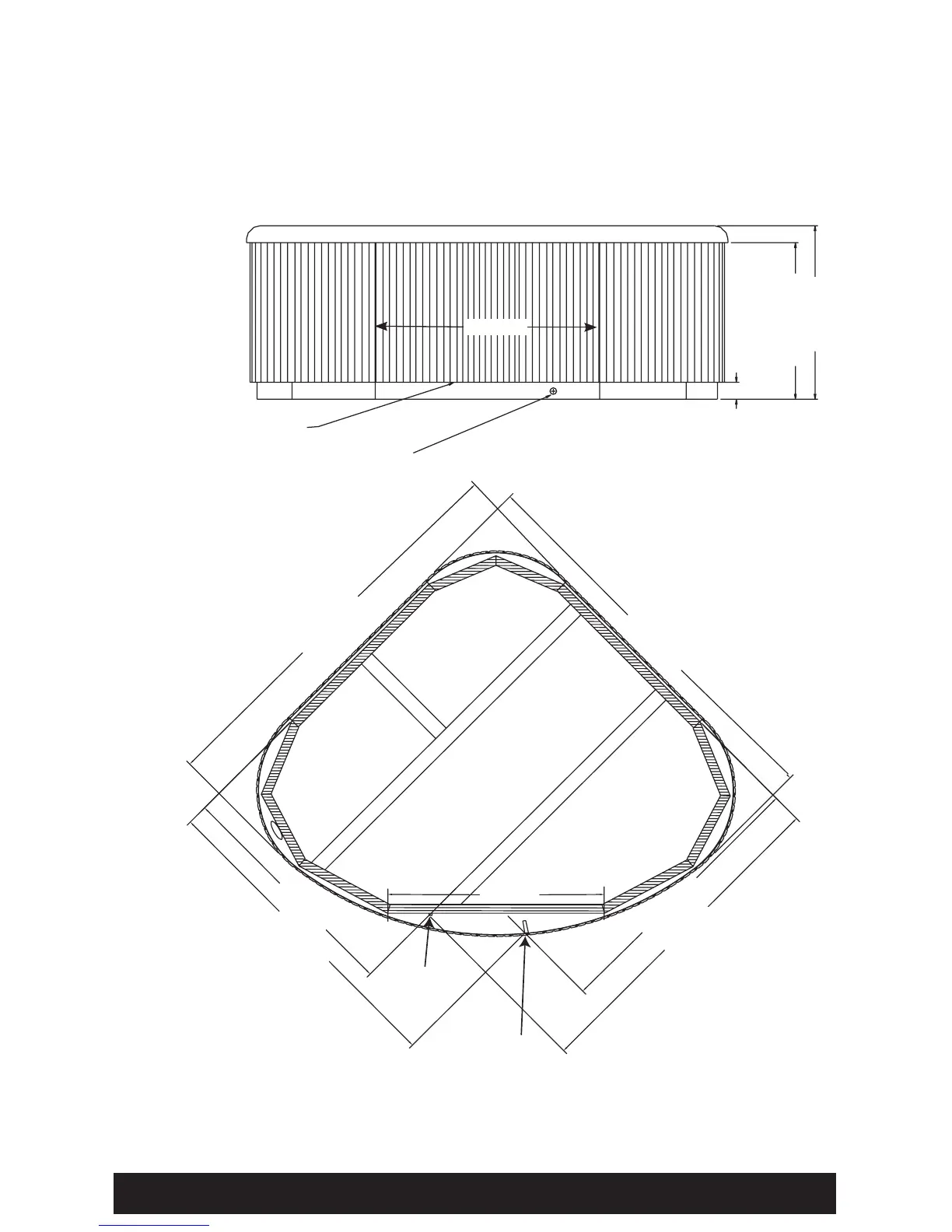

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
UPSIDE DOWN VIEW
DOOR
ELECTRICAL CUT-OUT
DRAIN
3.5" (8.9 cm)
29" (73.7 cm)
25.5" (64.8 cm)
67.75” (172.1cm)
67.75” (172.1cm)
40” (101.6cm)
53.5” (135.9cm)
37” (94 cm)
56” (142.2cm)
46.5” (118.1cm)
ELECTRICAL CUT-OUT
DRAIN
DOOR
(Front view)
(Bottom view)
NOTE:WatkinsManufacturingCorporationrecommendsthattheTXbeinstalledonaminimum4”(10.2cm)thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification
chart.
IMPORTANT: THE TX MUST NOT BE SHIMMED IN ANY MANNER.
