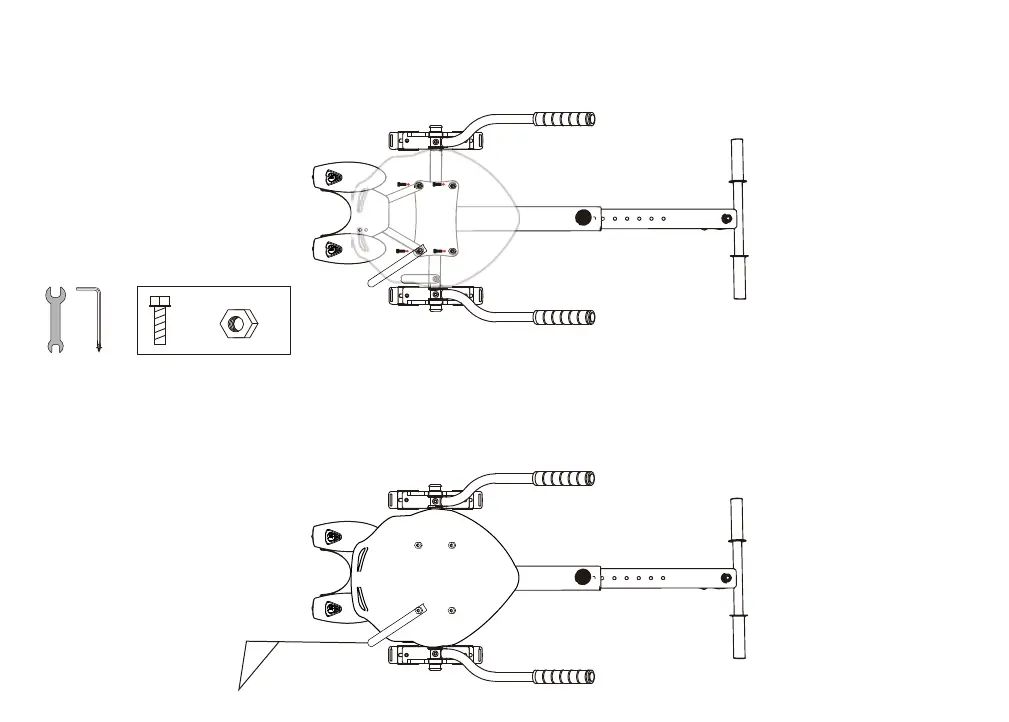

5. Align the holes of the seat with the holes of the fog blaster mount, ag tube, and seat frame. Insert the 4 M8
short screws. Attach the lug nuts to the bottom of each screw. To tighten the screws, hold the lug nuts in place with
the wrench, then use the hex key to turn the screws clockwise. Make sure all the screws are fully tightened.
6. Assemble the ag by inserting one of the included ag rods into the opening in the ag fabric. Combine
the remaining rods together by attaching them at the coupling points. Insert the assembled ag set into the
ag tube. Your Falcon-1 is now assembled and should look like the image below.
x 4
x 4
Tools
needed
8
