M9 Transfer Instructions For Use (M999-19, Version 10, 2021-12) 11

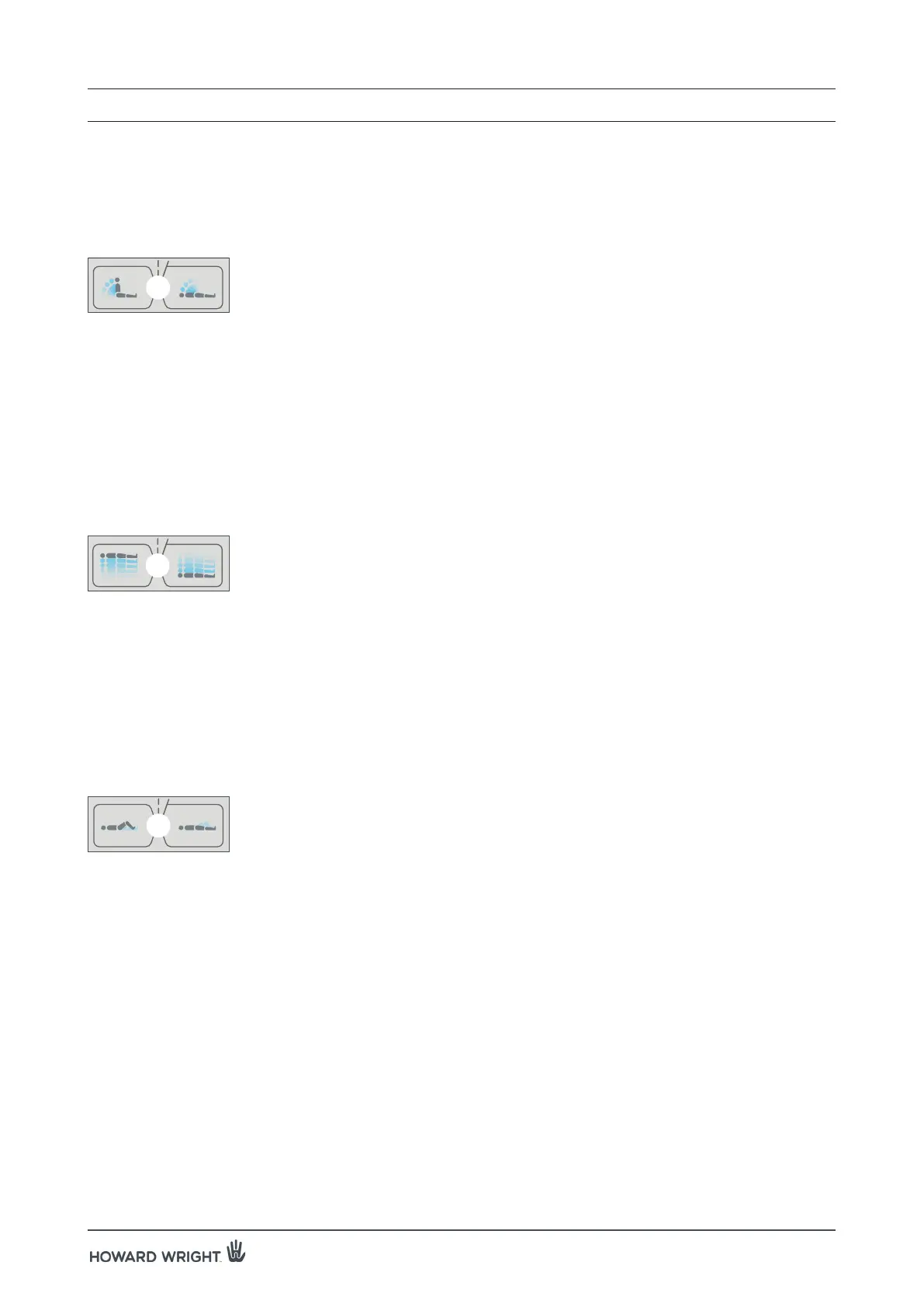

6.2 STRETCHER ADJUSTMENTS
6.2.1 BACKREST
CAUTION: Do not sit on raised backrest section.
To adjust the backrest up and down, press and hold the appropriate backrest adjustment button on the handset.
The backrest can be adjusted from 0° to 80°.
NOTE: If the kneebreak is fully raised the backrest will adjust to 70° not 80°. To raise the backrest to 80°
lower the kneebreak first.
6.2.2 DECK HEIGHT
WARNING: Leave the stretcher in its lowest position when the patient is unattended.
To adjust the deck up and down, press and hold the appropriate height adjustment button on the handset.
The deck height can be adjusted from 350mm to 800mm.
6.2.3 LEGRAISE
WARNING: Ensure legraise is fully lowered when not in use.
CAUTION: Do not sit on a raised legraise.
To adjust the legraise up and down, press and hold the appropriate legraise button.
The legraise can be adjusted from 0° to 32°.
NOTE: If the backrest is fully raised the kneebreak will adjust to13° not 32°. To raise the kneebreak to 32°
lower the backrest first.
NOTE: Raise the legraise for comfort and to prevent the patient from sliding down the stretcher.
6. OPERATION
