Howard Wright M9 TRANSFER - M9 TRANSFER STRETCHER SPECIFICATIONS

34 M9 Transfer Instructions For Use (M999-19, Version 10, 2021-12)
12.1 M9 TRANSFER STRETCHER
12. SPECIFICATIONS

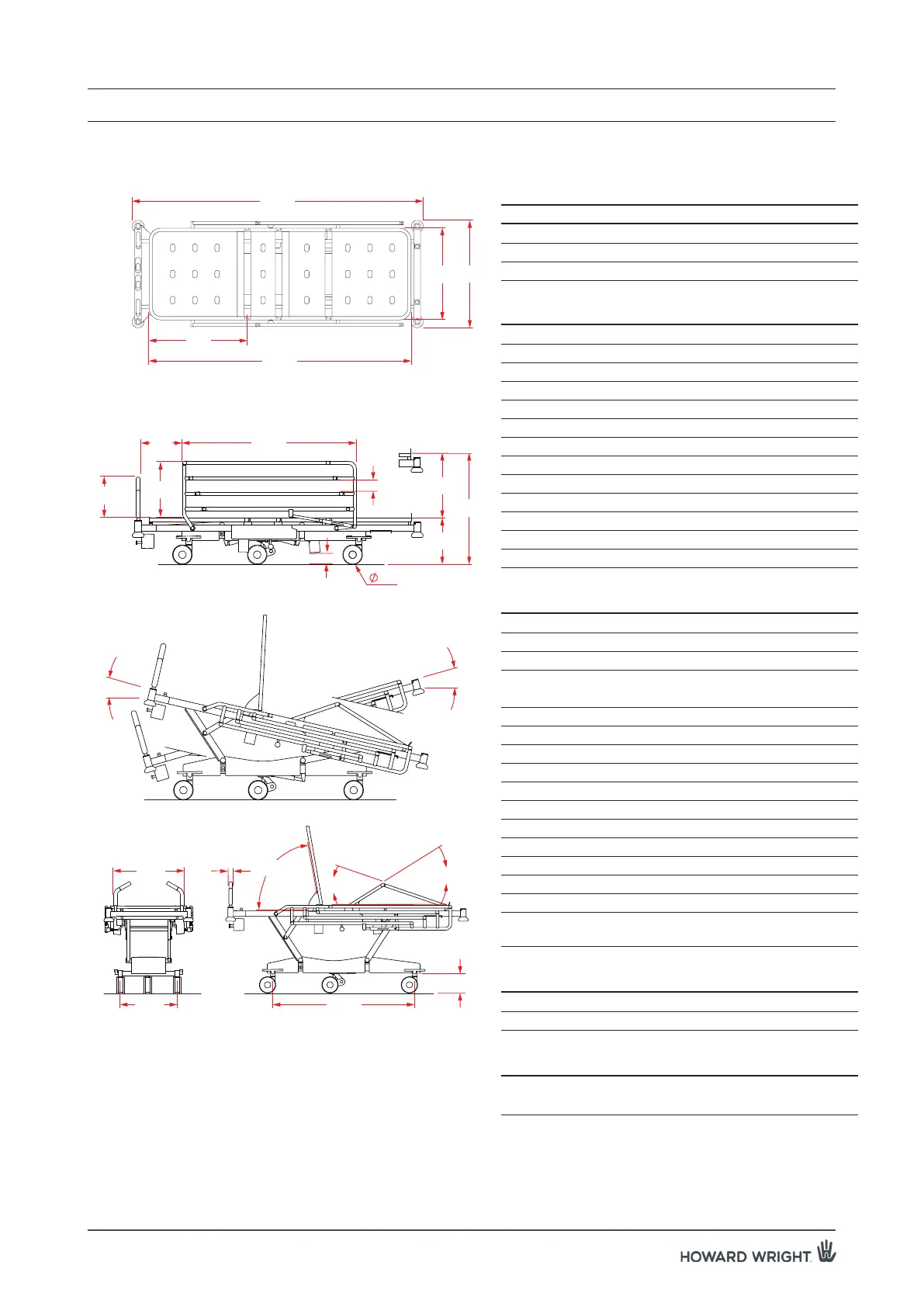

Figure 40. M9 Transfer specifications
MODEL: M9 Transfer
IP RATING: IPX4
EEC CLASSIFICATION: Class 1, Non-invasive
MAXIMUM SWL: 250kg (incl. patient & accessories)
STRETCHER MASS: 120kg (incl. siderails & bed ends)
EXTRA FEATURES:
• Durable powdercoated steel structure
• 4 large soft corner buffers
• LINAK electric system with 4 actuators. Approved to EN 60601-1
• Power input: 220-240 VAC, 50-60 Hz, 2.0 A maximum
• Power output: 24 VDC
• Backrest & legraise have safety spline
• Potential equalisation terminal
• Central locking braking with 2 brake pedals and 1 steer castor
• 4 accessory sockets
• CPR quick release backrest
• Under bed light (optional)
• Power cord storage
• IV pole storage
DIMENSIONS:
• Overall (incl. corner buffers): L: 2220mm, W: 820mm
• Mattress platform: L: 2000mm, W: 700mm
• Backrest: L: 750mm
• Push handle: W: 646mm, D: 32mm (32mm bed end)
H: 250mm (above mattress platform)
• Siderail: L: 1315mm, H: 435mm (above mattress platform)
• Space between bars: 92mm, (25mm when down)
• Space between push handles and siderail: 366mm
• Corner buffer diameter: 90mm
• Wheel base: 1300mm, wheel track: 520mm
• Castor diameter: 150mm dual Linea Castors
• Maximum deck height: 800mm, Minimum deck height: 350mm
• Linear translation as bed raises and lowers: 0mm
• Trendelenburg: 16°, reverse Trendelenburg 13.5°
• Maximum backrest angle: 80°
• Maximum upper legraise angle: 32°
• Maximum lower legraise angle: 19°
(All angular dimensions are with reference to horizontal)
UNDER BED CLEARANCES FOR PATIENT LIFTERS
• Actuator to floor: Deck low: 90mm (low height)
• Bogie to floor: 185mm
TESTING:
• Developed in accordance with the requirements of
IEC60601-1:2005 & IEC60601-2-52:2009
