6.1 ELECTRIC CONTROLS
WARNING: Ensure there is no risk of crushing or entrapment to the patient, other personnel, stretcher components,
or other objects when using the stretcher. Do not position the stretcher under any object.
WARNING: If the patient suffers from disorientation, depression or similar then leave the mattress platform flat
and lock out all electric functions.
WARNING: Lock out tilt and hi/lo functions and any other function you do not wish the patient to have access to
when the patient has access to the handset.
CAUTION: Do not operate the stretcher controls for more than 2 minutes over a 20 minute period (i.e. do not
exceed the mode/duty cycle).
Handsets are intended to be used by trained health professionals and patients who have been instructed on safe
and proper use.
Stretcher adjustments are powered by four electric actuators. The actuators power the following functions:
1. Backrest
2. Deck height
3. Legraise
4. Deck tilt
5. Auto-contour function
The actuators are controlled by buttons on the handset. Each function has a lock out feature (see 6.2.6 Lock Out
Function).
6.1.1 HANDSET LOCATION
The handset is permanently attached to the head end of the deck through a flexible coiled cable. It can be handheld
or positioned at either side of the stretcher for easy access by the patient or caregiver. The handset can be stored
on a siderail or top rail.
6.1.2 BUTTON OPERATION
Adjustment occurs only when a button is pressed. Adjustment will stop when the button is released or when the
moving stretcher section reaches the end of its adjustment.
6. OPERATION
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1:
Description:
Parent Product: M9
Drawing Size: A4
Material:Rev
P1
Colours:
Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling: New Artwork
Drawing Scale: 1:1
RAL7035 RAL7015
13/11/13
New Artwork: P1285 ZFM
ELRM9700 ARTWORK
10% Pantone 637U
25% Pantone 637U
45% Pantone 637U
60% Pantone 637U
100% RAL7015
The gradient of figures should be printed as dots
with a very fine screen film thus only using one
colour. The dots should represent the following
colours.
BACKGROUND: RAL7035
LOGOS + BORDERS: RAL7015
HW HAND LOGO:
Blue is 100% Pantone 637U
PLEASE USE SAME COLORS AND GRADIENTS AS ELRM9702

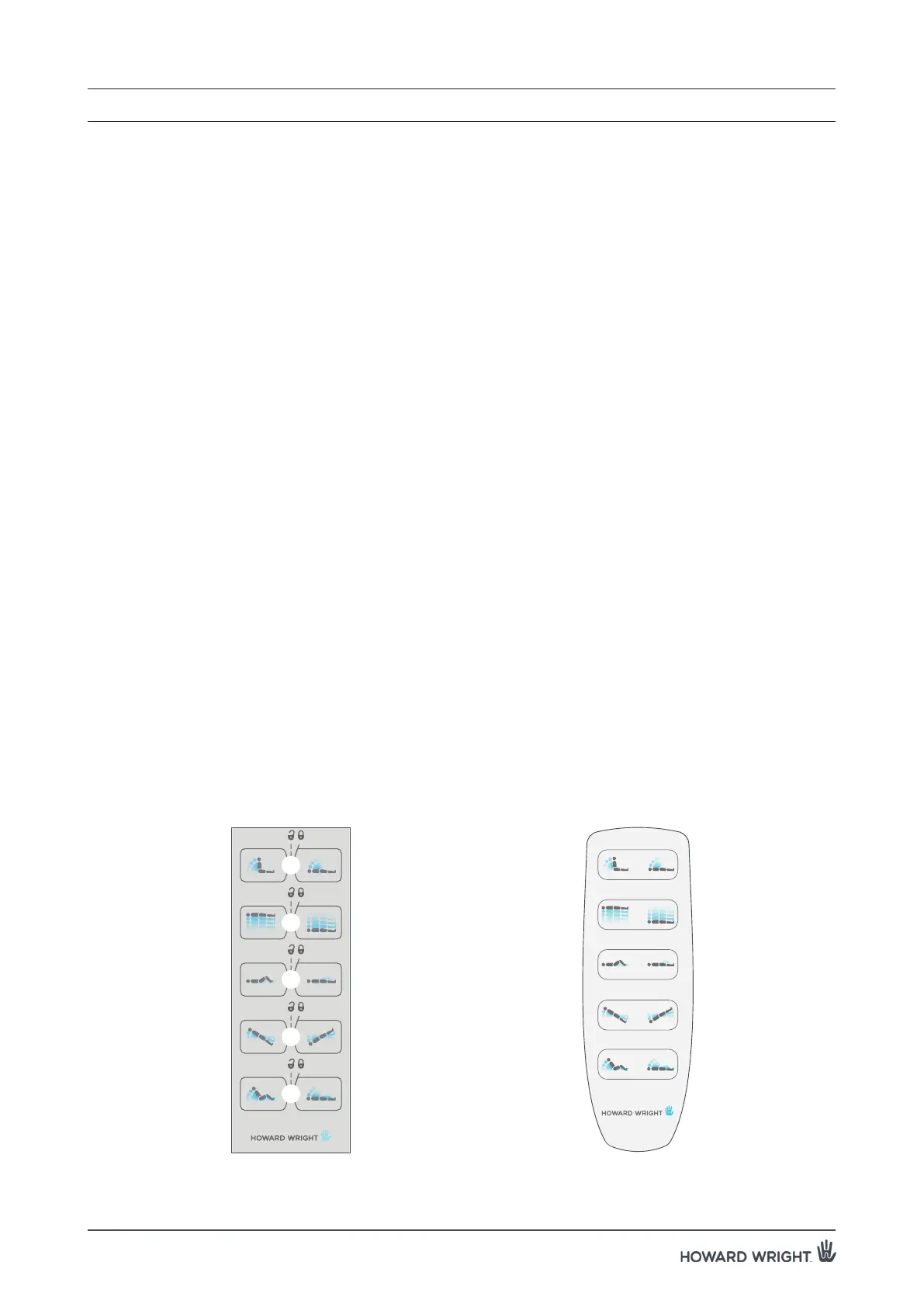

Figure 5. Handset with lockout
