Howdens RKC8621 - Page 2

HD424061
Note: Do not adjust with power tools
4 x 13mm
Click
Click
Bottom
Bracket
Top & Bottom
Bottom
Bottom
Note: Bottom bracket
on 200 unit will only
have one locking screw
Note: Bottom bracket
on 200 unit will only
have one locking screw.
Loosen screws
Adjust
Tighten screws
Top
Bracket
A. Clip brackets onto frame
B. Tighten locking screws.
300mm door
Top Bracket
fixing
Top Bracket
fixing
Bottom Bracket
fixing
200mm door
A
B

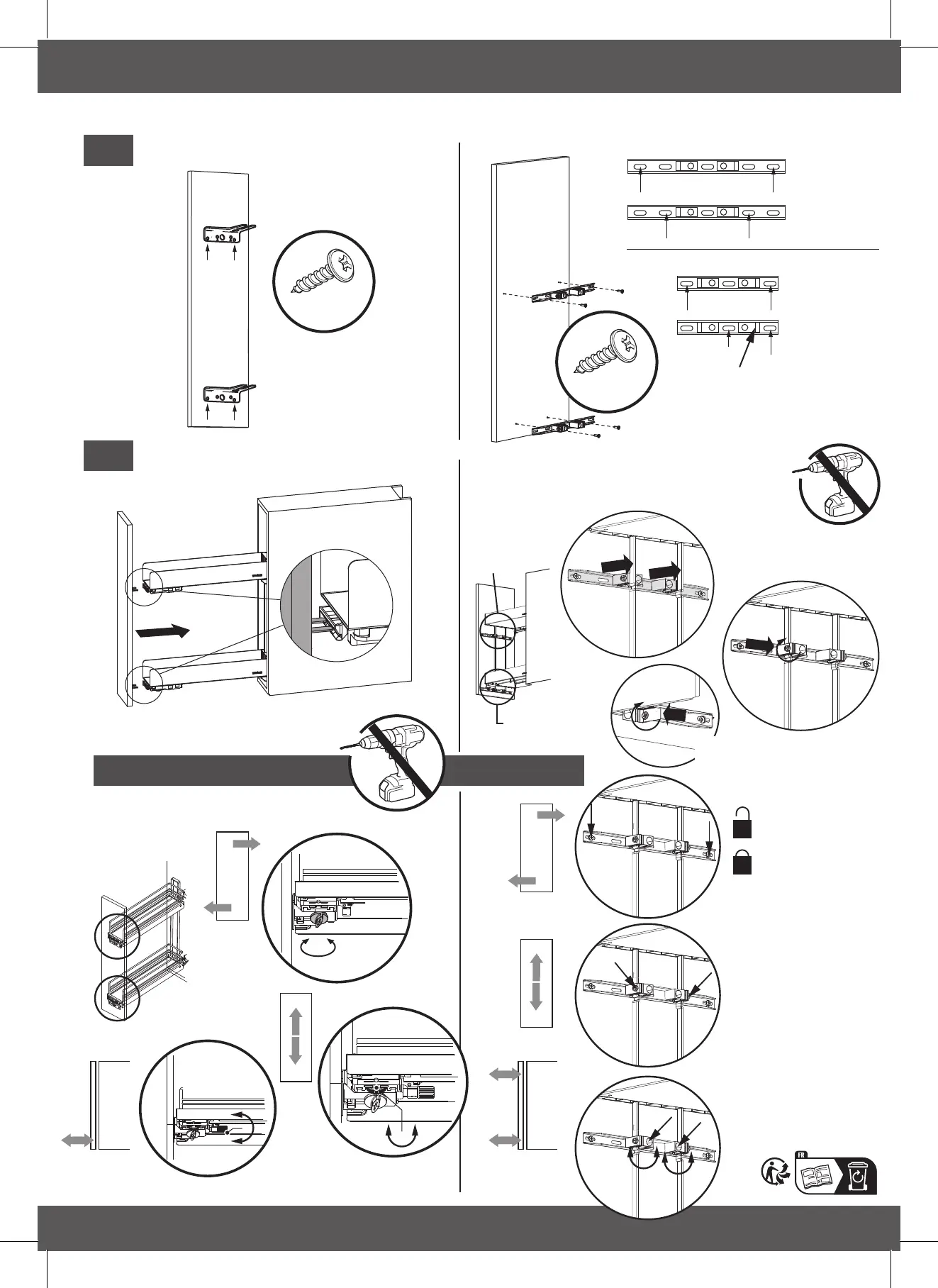

Fit the brackets to the back of the door
4
3
Fit the door to the pull-out
150mm Pull-Out 200/300mm Pull-Out
Adjustment
Bottom Bracket
fixing
4 x 13mm
200 Unit Bottom
Bracket x1 Screw
Note: Brackets for the
300mm door shown.
